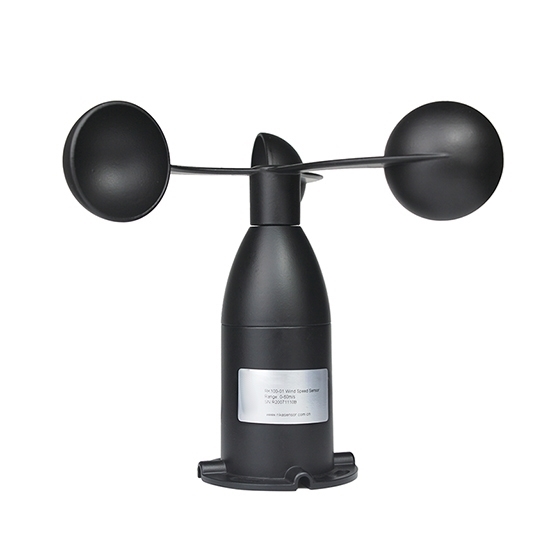

3-Cup Anemometer, 0~30 m/s Wind Speed Sensor, RS 485 Output

3-Cup Anemometer, 0~30 m/s Wind Speed Sensor, RS 485 Output

Affordable price anemometer for sale, 3-cup type. Wind speed measurement range 0~30 m/s, optional output signal pulse, 4-20mA, RS485, power supply DC 5-24V or 12-24V, accuracy ± (0.3 + 0.03V) m/s, ingress protection IP65. Wind speed sensor measures air velocity, outputs voltage and current signals by electromagnetic induction.

SKU: CCHN-3CAM-030

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The three-cup anemometer is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions. Output signals include pulse, current 4-20mA, RS485. The wind speed sensor has built-in digital circuit, with strong anti-RFI and EMI ability and automatic temperature compensation function. Measurement value and horizontal wind speed are linear relation.

Specification

Model	CCHN-RK100-01G
Supply Voltage	12–24VDC	5–24VDC
Output	RS485, 4–20mA	Pulse (Pulse high level depends on the supply voltage)
Range	0–30m/s
Starting Threshold	0.2m/s
Limit Wind Speed	70m/s
Accuracy	±(0.3+0.03V)m/s
Resolution	0.1m/s
Response Time	<1s
Power Consumption	20mA@12VDC
Ingress Protection	IP65
Operating Temperature	–30°C~+70°C
Main Material	Aluminum alloy
Connector	M12 waterproof connector
Surface Treatment	Polyester powder electrostatic spraying (black)
Weight (unpacked)	410g (Excluding wires)
Storage condition	10°C–60°C @20%–90%RH

Features

Shell of the 3-cup anemometer is made of high-strength aluminum alloy, wind cups are made of 304 stainless steel, and the PCB board is coated with anti-corrosion coating. Waterproof and corrosion resistant.
The wind speed sensor has a sealing ring inside and at the rotating position, which has good sealing performance and prevents water, salt spray and dust from entering.
The three-cup air velocity meter has low starting threshold, strong corrosion resistant ability, massive all-metal construction, easy Installation.

3-Cup Anemometer Output Characteristics

Pulses Output

V=0.5+0.169*F

V: Wind speed,m/s

F: Numberof pulses within 1 second

0~30 m/s 3-Cup Anemometer Output Pulses Characteristics

Current Output

Characteristic transfer function: V = (1-4)/(20-4)*50 (Range: 0-50m/s)

(where V = wind speed (m/s), I = output Current (mA)

0~30 m/s 3-Cup Anemometer Output Current Characteristics

3-Cup Anemometer Dimension Diagram (Unit: mm)

Tips: 4-20mA output signal conversion calculation for 3-cup anemometer.

When the 3-cup anemometer range is 0~30 m/s and the output is 4~20mA, if the output signal is 12mA, how to calculate the current wind speed value?

The span of this wind speed range is 30m/s, expressed by 16mA current signal,
30 m/s ÷ 16mA = 1.875/mA, that is, a current of 1mA represents a wind speed change of 1.875m/s.

The measured value is 12mA － 4mA = 8mA. 8mA*1.875m/s /mA = 15m/s. The current wind speed is 15m/s. The calculation formula is:

Wind speed = 1.875*current － 7.5, current value unit is mA.
