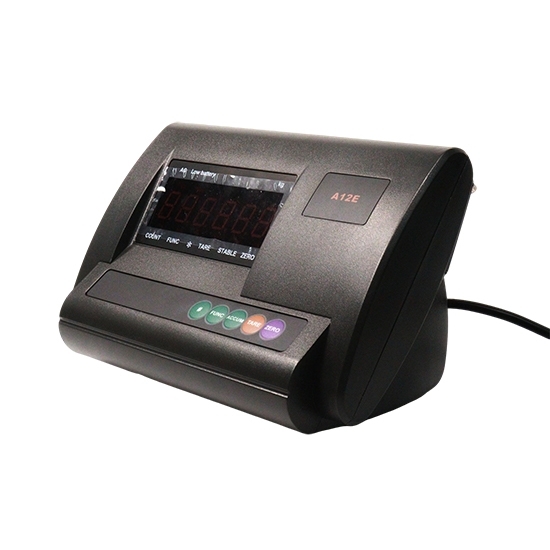

Electronic Weighing Scale Indicator for Truck/ Weighbridge

Electronic Weighing Scale Indicator for Truck/ Weighbridge

Electronic weighing scale indicator features selectable backlight modes and a built-in 6V/4.0AH maintenance-free battery, providing an ultra-bright red LED display for clear reading, strong vibration resistance, internal code display, and low-voltage protection. Ideal for electronic truck scales, platform scales, and weighbridges.

SKU: CCHN-WI-A12E

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Electronic weighing scale indicator offers multiple backlight options, a 6V/4.0AH maintenance-free battery, and a bright red LED display for clear reading. Designed for truck scales and weighbridges with strong vibration resistance and low-voltage protection.

Specification

Model	CCHN-XK3190-A12E
Dimensions	248 × 158 × 159.5 mm
Readability	1/30000
Power Supply	Built-in 6V/4AH rechargeable battery
Communication Interface	5-pin
Accuracy	A/D conversion
Display	LED red digital display
Functions	Weighing, tare, zero setting, etc.
Applications	Mainly used for electronic truck scales, platform scales, and weighbridges.

Feature

Internal code display enables convenient observation and tolerance analysis, eliminating the need for calibration weights.
Advanced software technology enhances vibration resistance and electronic weighing scale indicator stability.
Zero tracking range and zero-setting range (power-on/manual) can be set independently.
Adjustable digital filtering speed, amplitude, and stabilization time for improved accuracy.
Built-in rechargeable design supports convenient charging at any time.
Equipped with undervoltage indication and protection for safe operation.
The weighing indicator includes a 6V/4AH maintenance-free rechargeable battery.
Optional 5-pin communication interface for flexible connectivity.

Detail

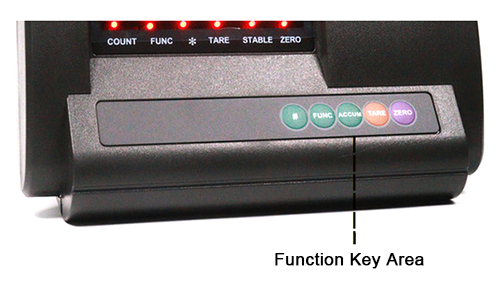

Front View

Electronic weighing scale indicator detail front view

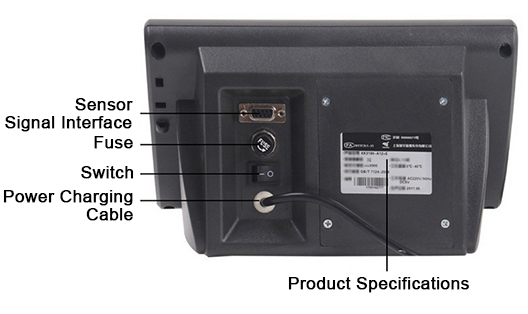

Rear View

Electronic weighing scale indicator detail rear view

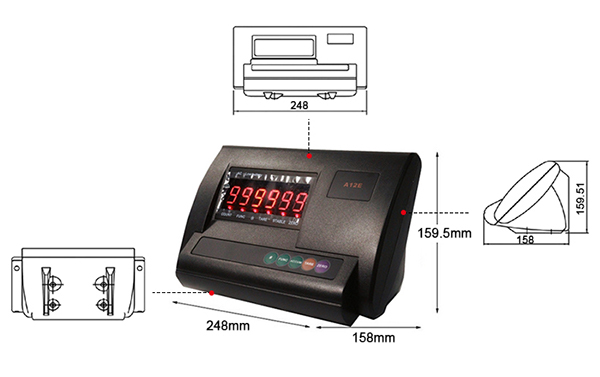

Size (unit: mm)

Electronic weighing scale indicator size

Application

Electronic weighing scale indicator application

Tips: How to calibrate electronic weighing scale indicator?

1.Enter Calibration Mode

Hold down the designated key combination while switching on the power.
Access the calibration or setup menu.
Refer to electronic weighing scale indicator manual for the specific key sequence.

2.Zero Calibration (No Load)

Ensure the weighing indicator platform is completely empty.
Wait for a stable display.
Press ZERO to store the no-load signal as the reference zero point.

3.Span Calibration (Load Calibration)

Place a known standard weight on the weighing scale indicator platform (e.g., 50 kg or 100 kg, depending on scale capacity).
Once the reading stabilizes, press ENTER.
Input the exact test weight value.
The system calculates the scale factor to ensure accurate readings.

4.Verification

Remove the weight – the display should return to zero.
Reapply the same weight – the displayed value should match the reference weight.
Repeat using different weights to confirm linearity and accuracy.

5.Save and Exit

Press FUNC to save calibration data.
Exit calibration mode.
The weighing indicator will restart and operate in normal weighing mode.
