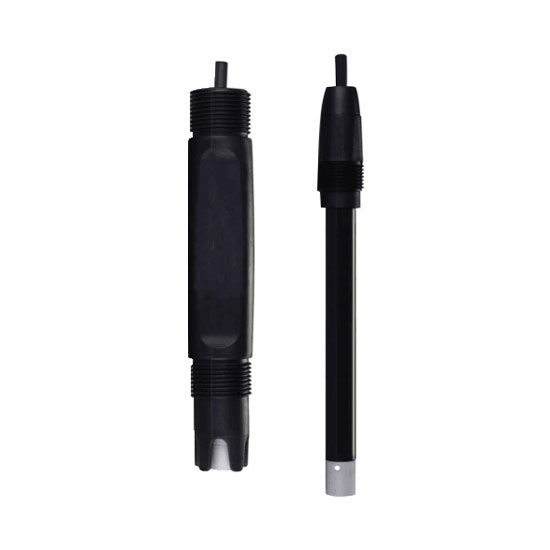

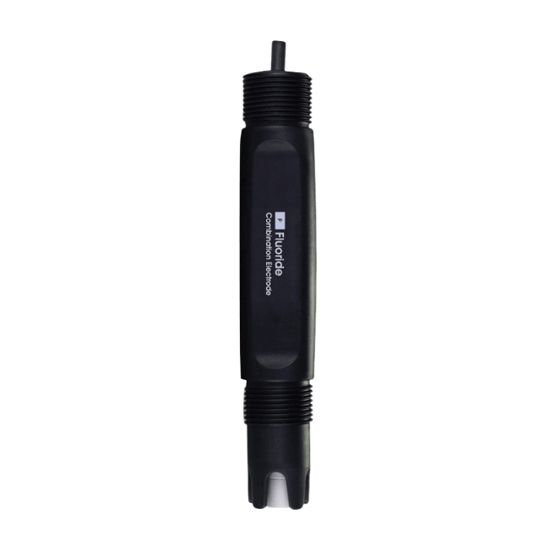

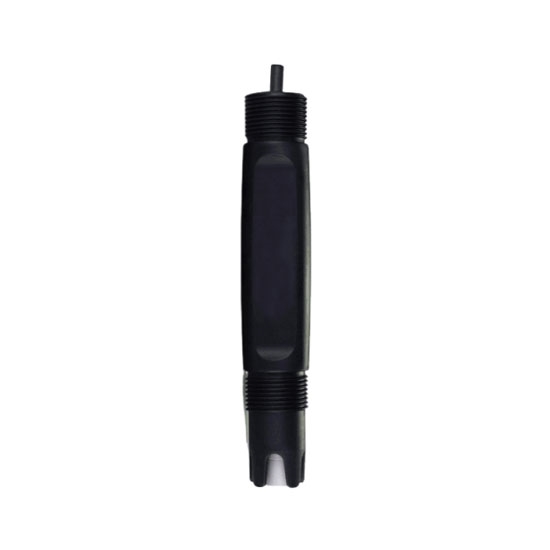

Fluoride Sensor for Water Quality

Selling a highly accurate fluoride sensor for water quality with a measurement range from 0 to saturation, 0.01 ppm resolution. The water quality sensor has real-time online monitoring and automatic temperature compensation function. Application for drinking water, wastewater, air quality, chemicals, seawater, soil, food, biological fluids.

SKU: CCHN-WQS-IF

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Highly accurate fluoride sensor with a 0 to saturation range and 0.01 ppm resolution. It supports real-time monitoring and automatic temperature compensation, perfect for drinking water, wastewater, air quality, chemicals.

Specification

Ion Concentration
Measurement Range	0~Saturation
Resolution	0.01 ppm
Measurement Accuracy	±3% FS
Temperature
Measurement Range	-10℃~110℃
Resolution	0.1 ℃
Measurement Accuracy	±0.5 ℃
Temperature Type	Thermistor NTC10K
Temperature Compensation	Automatic
Data Transmission
Interface	RS-485
Protocol	MODBUS-RTU communication protocol
Other Parameters
Working Voltage	9~27 VDC
Dielectric Strength	2500 Vrms
Power Consumption	Approx. 0.5 W
Material	PPS Solid
Installation Method	3/4 inch front and rear thread
Slope	57 ± 2 mV
Sensitivity	± 2%
Ion Selectivity	Trivalent metal ions (e.g., Al³⁺, Fe³⁺, Cr³⁺)
Working Temperature Range	0~80℃
Pressure Range	0~2 atm
Response Time	30 seconds to 95% response
Storage	Long-term: dry storage, short-term: store in standard electrolyte solution
pH Range	5~8 pH
Internal Resistance	20~50 MΩ
Maintenance	Rinse with distilled water, use standard electrolyte solution
Online Monitoring	Supported
Reference Electrode	20 ppm Fluoride
Connector	End terminal
Applications	Drinking water, wastewater, air quality, chemicals, seawater, soil, food, biological fluids, testing for fluoride

Feature

Ionised water quality sensor features

Low Power Consumption: Consuming less than 0.5W, the fluoride sensor is designed to be energy-efficient and cost-effective for long-term use.
High Precision Electrodes: Equipped with high-precision ion-selective electrodes, the sensor ensures accurate and stable measurements without the need for trial reagents.
RS485 Output: It offers RS485 output, enabling seamless integration with monitoring systems for continuous, real-time data tracking.
Automatic Temperature Compensation: The water quality sensor automatically compensates for temperature changes, maintaining reliable and consistent readings.
Durability and Environmental Resistance: Designed to withstand external environmental factors, this sensor is suitable for use in both industrial and natural settings.
Easy Installation: With a G3/4 pipe thread, easy to install, reducing both setup time and cost.
High-Quality Cable: It comes with a 5m (customizable) low-noise cable, ensuring stable and interference-free data transmission.

Dimension (Unit: mm)

Ionised water quality sensor size

Wiring Instructions

Function	Color	Description
Data Transmission	Yellow Wire	RS-485 Communication T/R+ (A)
Data Transmission	White Wire	RS-485 Communication T/R− (B)
Power Supply	Red Wire	DC Power Positive
Power Supply	Black Wire	DC Power Ground

Application

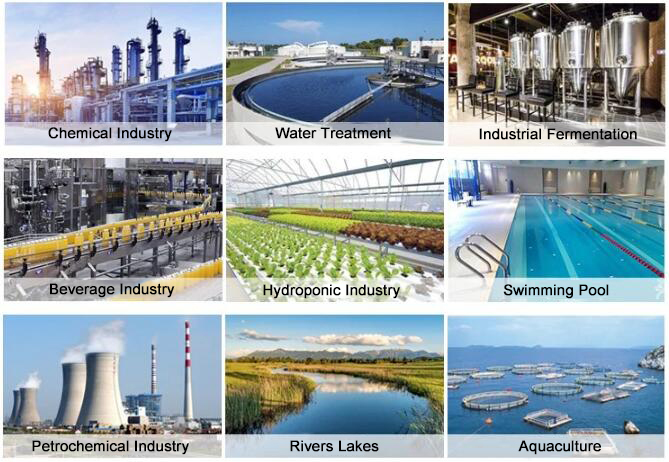

Ionised water quality sensor application

Tips: How does the fluoride sensor work?

The fluoride sensor works by using an ion-selective electrode (ISE) that specifically responds to fluoride ions in the water. When fluoride ions come into contact with the electrode, they generate a voltage that is directly proportional to their concentration in the water. The sensor measures this voltage and converts it into a corresponding fluoride concentration, providing accurate and real-time data.
