Water Leakage Sensor with Controller, RS485

The isolation type water leakage sensor is available with a controller, relay NO NC output, RS485 communication method and sound & light alarm, mainly used for detecting water leakage in communication base stations, hotels, restaurants, precision computer rooms, libraries, warehouses, and basement or monitoring computer rooms.

Sensor Specifications

• Model: CCHN-JRWI424P
• Power Supply: 5V (White) /12V/24V/7-36V DC (Optional)
• Working Temperature: -20℃~60℃
• Working Humidity: 0%RH~100%RH
• False Alarm Rate: <100ppm
• Static Power Consumption: <0.008W
• Alarm Power Consumption: Max 0.6W@18V
• Output Form: Relay Output, NO and NC
• Load Capacity: Relay Output, ≤1A
• Waterproof Level: IP68
• Detection Cable: The sensor cable detection points are evenly distributed about 10cm apart.
• Dimension: 48x48x30mm
• Configuration: Standard 1.5m detection cable, the detection cable length can be customized.

RS485 Controller Specifications

• Working Power Supply: 7-36V DC (Non-polarity)
• Working Power: <0.4W
• Detection Method: Water Immersion Electrode
• Number of Detection Channels: 1 Channel
• Response Time: <3s
• On-Site Alarm: Sound + Indicator Light
• Relay Output: 1 Channel
• Relay Output Form: Dry Node
• Water Quality Detection: Ordinary Tap Water, Air Conditioning Water, Fire Water
• Alarm Current: <50mA
• Working Temperature: -20~70℃
• Working Humidity: 5~95%RH (Non-condensing)
• False Alarm Rate: <100ppm
• Communication Method: RS 485
• Installation Method: Standard DIN Rail installation

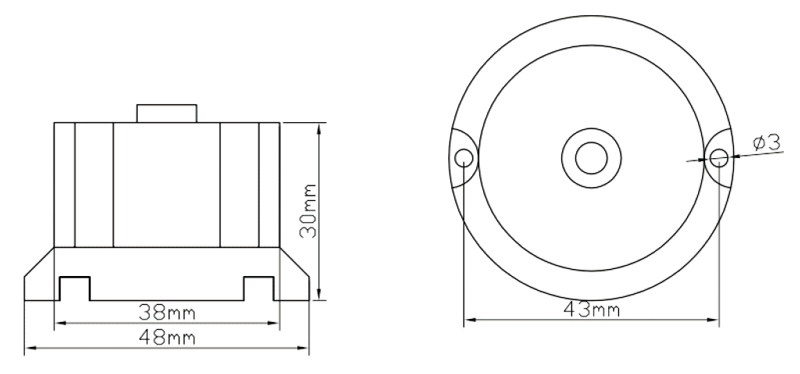

Sensor Dimension (Unit: mm)

Line Definition

Controller Dimension (Unit: mm)

Applications

Tips: Why is a water leakage sensor equipped with a controller?

A water leakage sensor typically needs a controller to process the sensor's signal and take appropriate action when a leak is detected. The sensor alone can only identify the presence of water, but the controller is responsible for interpreting that signal, determining whether it meets a predefined threshold, and triggering a response, such as an alarm, shutting off water valves, or sending notifications.

Additionally, the controller provides a centralized interface for managing multiple sensors, adjusting sensitivity, and monitoring the system status in real-time. In advanced systems, controllers can also integrate with smart home or industrial automation systems, allowing for remote monitoring and control. Without a controller, the sensor would not be able to communicate or execute these vital actions, limiting its effectiveness in preventing damage from leaks.
