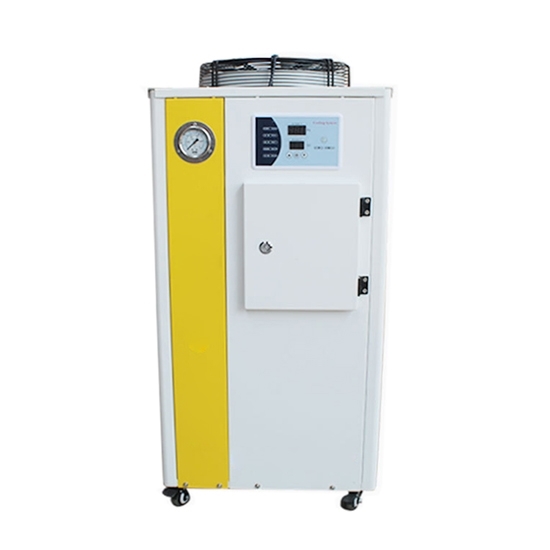

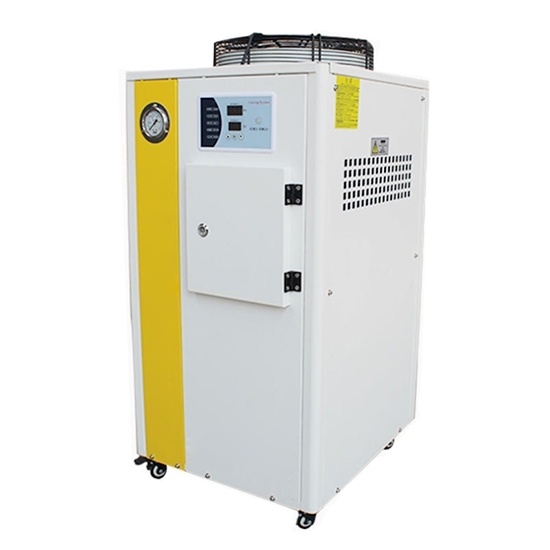

1 Ton Air Cooled Industrial Water Chiller

1 Ton Air Cooled Industrial Water Chiller

Air cooling 1 ton industrial water chiller works at 50/60Hz single phase 220V, compressor power about 1200W, R410A refrigerant used as standard for efficient cooling. It adopted world famous brand compressor, high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.

SKU: CCHN-IWC-1TON

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy 1 ton capacity industrial water chiller machine with competitive price, air-cooled type, maximum capacity of water tank up to 20L, single phase 50/60Hz input voltage, suitable for CNC machine tools, laser cutting machines, grinding machines and other industrial fields.

Features

Air-cooled industrial water chiller has a refrigerating capacity up to 1 ton (3517W).
Double digital display, set temperature and real-time temperature at a glance.
Full power refrigeration, micro refrigeration, are suitable for a variety of working conditions.
Intelligent and constant operation modes are available for various temperature environments.
High precision temperature control, the fluctuation can be controlled within 0.5 ℃.
With over temperature alarm, sensor fault self-diagnosis function.
With compressor over-current overload protection, water flow alarm function.
It has an anti-freeze function and can better protect machine waterway components in the low temperature environment.

Parameter List

Model	CCHN-JL6500	CCHN-JL6500
Input Voltage	Single phase 220V	Single phase 220V
Working Current	1.5-7A	1.5-8.5A
Input Frequency	50Hz	60Hz
Compressor Power (±3%)	1158W	1250W
Refrigeration Capacity	1 ton
Input Power	1750W
Pump Voltage / Power	220V AC / 370W
Cooling Type	Air-cooled
Max. Lift	29M
Max. Flow	2m³/h
Refrigerant Type	Default R410A (1R34A, R407C, R401A, R404A, or other types can be customized, just confirm with us by email)
Inlet and Outlet	40mm inner teeth
Max. Capacity of Tank	20L
Glycol Capacity	≤30%
Certification	CE
Operate Temperature	0℃~40℃
Alarm Device	Red and green alarm light, flow alarm, high-temperature alarm
Machine Dimension	7005201060mm
Net Weight / Gross Wight	80kg / 110kg

Shipping Way of CCHN Water Chiller

Just confirm the shipping way by email when place your order.

1. Ship by Air: The compressed refrigerant inside the chiller is a dangerous item with the possibility of explosion, so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals, the process is as simple as adding refrigerant for ordinary air conditioners). Delivery time is about 15-30 days.

2. Ship by Sea: The transportation time is longer (about 40-55 days), and there is no need to add refrigerant after the equipment arrives at the destination.

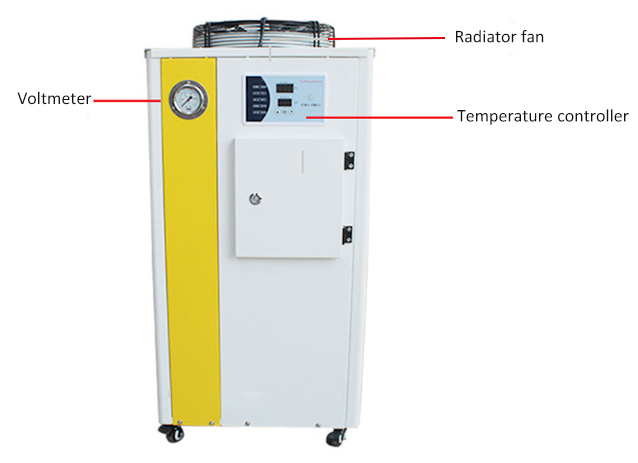

Water Chiller Front Side Details

1 ton water chiller front side detail features

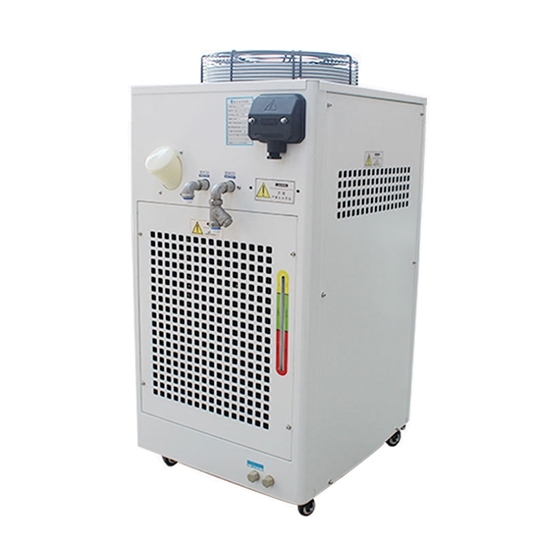

Water Chiller Back Side Details

1 ton water chiller back side detail features

Tips: Something should be known when using a water chiller

When using industrial chiller machines, you must pay attention to the safety of operation. Please check the reliability of the safety devices, safety rods and safety doors of the water chiller machine at the beginning of each operation. When the machine is running, remember not to put your hand into the clamping mechanism. When picking up the product, the safety door must be opened. After confirming personnel safety and no foreign objects in the mold, the safety door can be closed. In addition, the hand cannot reach between the nozzle and the mold gate during operation. When repairing the mold, turn off the oil pump motor.
