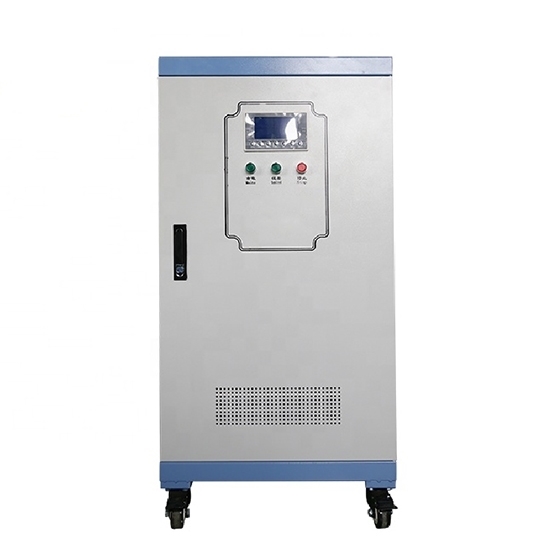

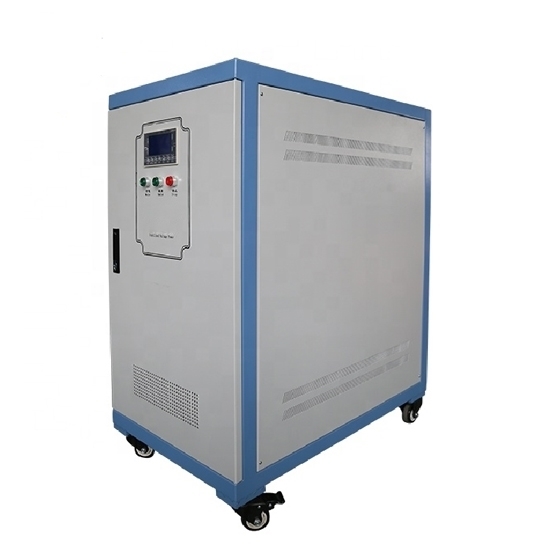

40 kVA 3 phase Industrial AC Automatic Voltage Stabilizer

40 kVA 3 phase Industrial AC Automatic Voltage Stabilizer

40 kVA 3 phase 4 line full-automatic compensated servo voltage stabilizer on sales, default input voltage range is 175V-265V (phase voltage) 304V-456V AC (line voltage) and default output 380V. +/- 2-4% or +/- 1% of output accuracy to select, high efficiency up to 95%.

SKU: CCHN-AVS-3P40K

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

40 kVA Voltage Stabilizer Features

Default three phase 4-line 175V-265V (phase voltage) 304V-456V AC (line voltage) of wide input voltage range, 380V output
High efficiency, large capacity, no waveform distortion, stable voltage regulation
The high accuracy of the output voltage (output voltage can be customized)
Perfect protection function: Over/ low voltage protection, overheat/ load protection, short circuit protection

40 kVA 3 phase Industrial AC Automatic Voltage Stabilizer is widely used in post and telecommunications, department stores, elevators, hospitals, schools, printing, securities, and other occasions where all need normal voltage to ensure, such as workshop mines medium enterprises, some of the important equipment and computer power and support.

40 kVA Voltage Stabilizer Specifications

Model Number	CCHN-SBW/ZBW-40K
Capacity	40 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	3 Phase 4-line
Input Voltage Range	±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage	3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy	±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency	50Hz/60Hz
Current Type	AC
Efficiency	≥95%
Response Time	≤1.5S
Ambient Temperature	-15°C~+40°C
Cooling Method	Air-cooled
Insulation Resistance	≥5MΩ
Electrical Intensity	Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity	Overload current (%)	Duration (min)
	20	≤60
	40	≤15
	60	≤5
Waveform Distortion	Non-lack fidelity waveform
Protection	Over-voltage, over-current, feed phases
Protection Grade	IP 24
Warranty	12 months
Certificate	ISO9001:2008, CE
Weight	260 Kg
Package Size	700x520x1150 mm

3 Phase Voltage Stabilizer Schematic Diagram

three phase voltage stabilizer schematic diagram

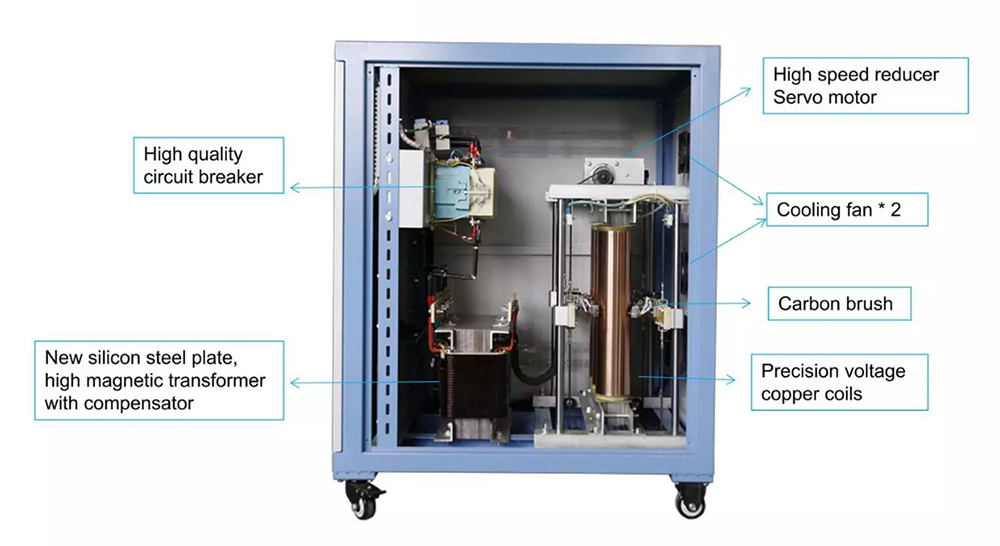

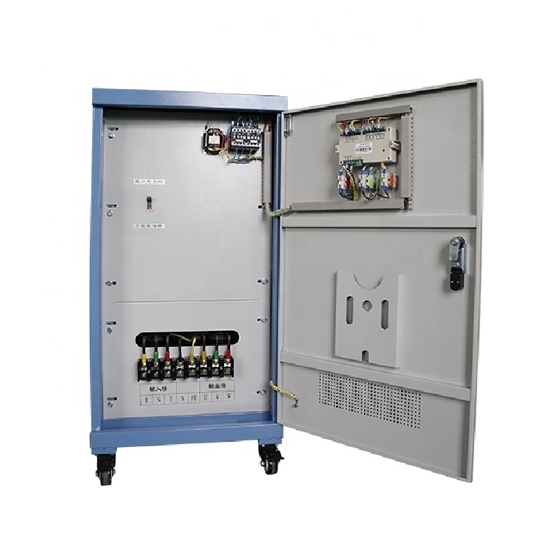

Industrial Voltage Stabilizer Inner Detail

3 phase voltage stabilizer details

Tips:

In fact, the three-phase voltage stabilizer connects the three voltage stabilizing units with the "Y" connection method, and then uses the control circuit board and the motor drive system to control the voltage regulating transformer, so as to achieve the function of stabilizing the output voltage.

If the sliding arms of the three voltage-regulating transformers are driven by one motor, the voltage-regulating mode is the unified voltage stabilizer. If the sliding arms of the three voltage-regulating transformers are independently adjusted by three motors, the three-phase split regulation voltage stabilizer is the same as the single-phase voltage stabilizer.

In the process of voltage regulation, the regulator is realized by moving the carbon brush to change the number of contact coil turns. Then, during the adjustment, it is required to keep contact with the coil at all times, otherwise, the power will be cut off.
