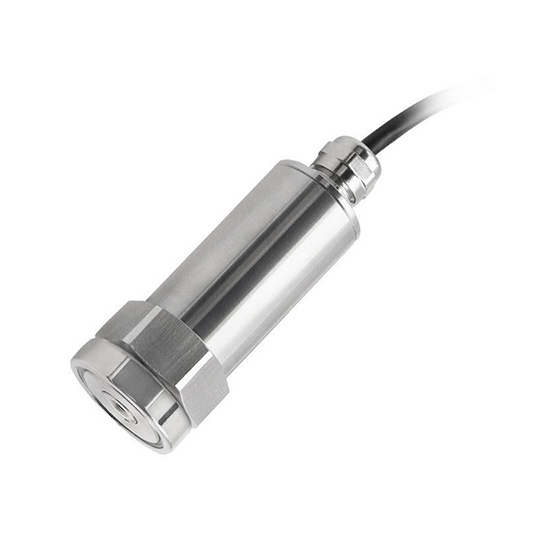

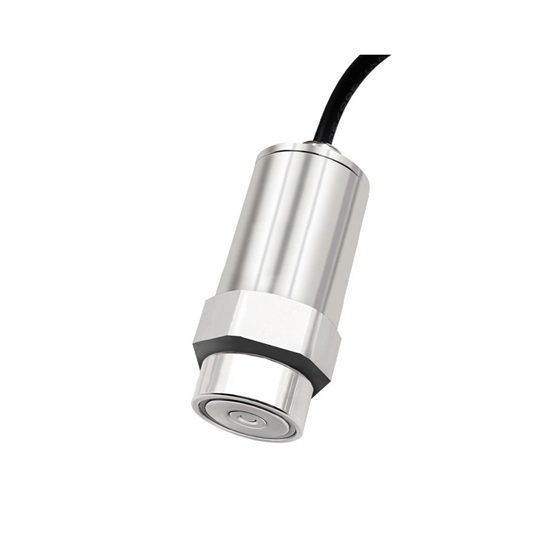

Industrial Vibration Sensor, RS485/4-20mA/0-5V/0-10V

Industrial Vibration Sensor, RS485/4-20mA/0-5V/0-10V

Good quality industrial vibration sensors for sale support RS485/4-20mA/0-5V/0-10V and other transmission modes to meet different site monitoring needs. This vibration transmitter can detect 10-1600Hz/10-5000Hz frequency range of uniaxial/triaxial vibration displacement, suitable for all kinds of motors, fans, pumps, machine tools and other equipment vibration testing and fault reduction.

SKU: CCHN-VT-N01

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High performance, low power consumption, anti-interference and composite industrial vibration sensor. Adopting high-performance MEMS chip as the core, it ensures the accuracy, timeliness and safety during transmission of vibration velocity, vibration displacement and temperature measurement. It supports single-axis/three-axis simultaneous measurement and reaches IP67 protection level, which can be used for vibration detection and equipment health monitoring under harsh industrial conditions. A display resolution of up to 0.1 ensures fine data presentation, detects vibration changes in real time, and provides better maintenance solutions for machinery and equipment.

Specification

RS485
Model	CCHN-SN-3001-N01
Signal Output	RS485
Power Supply	DC10-30V
Power Consumption	0.3W (DC24V)
Protection Class	IP67
Frequency Range	10-1600/10-5000 (optional)
Vibration Measurement Direction	Single or triple axis
Transmitter Circuit Operating Temperature	-40°C~+80°C, 0%RH~80%RH
Vibration Velocity Measurement Range	0-50
Vibration Velocity Measurement Accuracy	＜1% (@160Hz, 10mm/s)
Vibration Velocity Display Resolution	0.1mm/s
Vibration Displacement Measurement Range	0-5000
Installation Method	Magnetic mounting
Vibration Displacement Measurement Accuracy	＜1% (@40Hz, 400μm)
Vibration Displacement Display Resolution	0.1μm
Vibration Acceleration Measurement Range	±16g (Default g is taken as 9.8m/s².）
Accuracy of Vibration Acceleration Measurement	＜1% (@160Hz, 10m/s²）
Acceleration Display Resolution	0.1m/s²
Surface Temperature Measurement Range	-40°C~+80°C
Temperature Display Resolution	0.1°C
Measuring Period	(in) real time
Analogue
Model	CCHN-SN-3001-WZ1
Output Signal	Current output: 4-20mA
Output Signal	Voltage output: 0-5V/0-10V
Power Supply	DC10-30V
Maximum Power Consumption	Current output: 1.2W
Maximum Power Consumption	Voltage output: 1.2W
Protection Class	IP67
Frequency Range	10-1600/10-5000 (optional)
Vibration Measurement Direction	Single axis, vertical measurement of surface orientation
Sensor Circuit Operating Temperature	-40°C~+60°C, 0%RH~80%RH
Installation Method	Magnetic mounting
Vibration Speed Measurement Range	0-50mm/s
Surface Temperature Measurement Range	-40°C~+80°C
Vibration Velocity Measurement Accuracy	±1.5% FS (@1kHz, 10mm/s)
Load Capacity	Current output: ≤600Ω
Load Capacity	Voltage output: Output resistance ≤250Ω
Detection Period	(in) real time

Feature

Industrial vibration sensors use high-performance MEMS chips with high measurement accuracy and strong anti-interference capability.
The vibration transmitter provides threaded mounting and magnetic suction mounting.
It can measure single-axis and three-axis vibration speed, vibration displacement, motor surface temperature and other parameters.
Support 10-30V DC wide voltage power supply, protection grade IP67, sensor support remote upgrade.

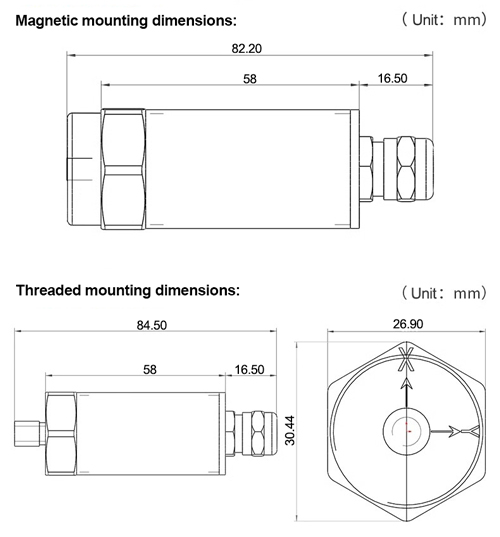

Dimension (unit: mm)

Industrial vibration sensor size

Wiring Instructions

There are certain specifications for wiring the 485 line field, please refer to the information package for details.
When the vibration sensor is connected to the 485 bus, make sure that the addresses of multiple devices are not duplicated.
The vibration sensor is available in m8*1.25*10 and m5*7 external threads, in addition to magnetic mounting.

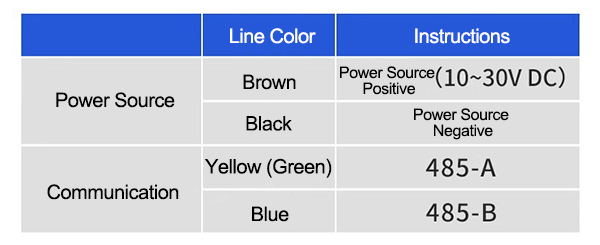

Power supply and 485 signal:

Industrial vibration sensor wiring instructions

Note: Wide voltage power supply input 10~30V is available. 485 signal line wiring, pay attention to the A/B lines should not be reversed, and the addresses of multiple devices on the bus should not be in conflict.

Application

Industrial vibration sensor application.

Tips: The basics of this industrial vibration sensor

Vibration sensors are available in single-axis and tri-axis options. Single-axis can measure vibration values and temperature, while tri-axis can measure vibration values, displacement and temperature values in the X-, Y- and Z-axes.
Vibration sensor vibration value measurement range of 0-50mm / s, vibration displacement measurement range of 0-5000um, are supported by custom other range output, measurement accuracy of 1.5% FS, compared with products on the market, we can better meet your needs.
Support RS485, analogue and other signals can be selected. The RS-485/analog style of this vibration transmitter is powered by external power supply.
The mounting method has threaded, magnetic way to choose, which threaded mounting M8, M5 two kinds of specifications can be selected, if you need other sizes can contact customer service for free customisation.
