Portable Vibration Tester, Vibration Check Meter

Low price vibration meter for sale online. The digital vibration meter can measure vibration speed, acceleration and displacement. It has an acceleration measurement range of 0.1~199.9m/s2 peak. The vibration tester uses a piezoelectric accelerometer to convert the vibration signal into an electrical signal, analyze the input signal, and display the vibration speed, acceleration, and displacement.

Specifications

• Model: CCHN-HT1201
• Vibration acquisition: piezoceramic accelerometer (shearing type)
• LCD display: Three and a half digit display
• Acceleration: 0.1-199.9m/s2( peak value)
• Speed: 0.1-199.9mm/s(effective value)
• Displacement: 0.001-1.999mm (effective value)
• Measurement accuracy: +(5%+2digits)
• Acceleration: 15Hz-1KHz (LO), 1KHz-10KHz (HI)
• Speed: 15Hz-1KHz (LO)
• Displacement: 15Hz-1KHz (LO)
• Temperature measurement: 0℃-60℃
• Temperature accuracy: +2C
• Automatic power-off time: 4 minutes
• Power supply: 3*AA batteries
• Operation temperature: 0℃-45℃
• Storage temperature: -20℃-60℃
• Weight of the host: 140g
• Dimension of the host: 152mmx75mmx32mm

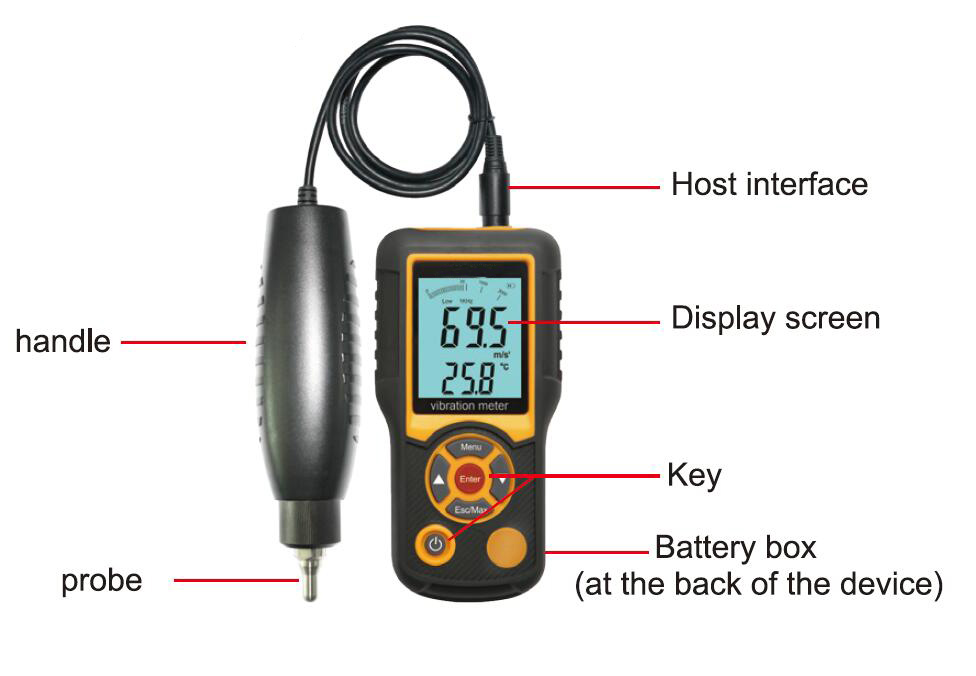

Portable Vibration Tester Details

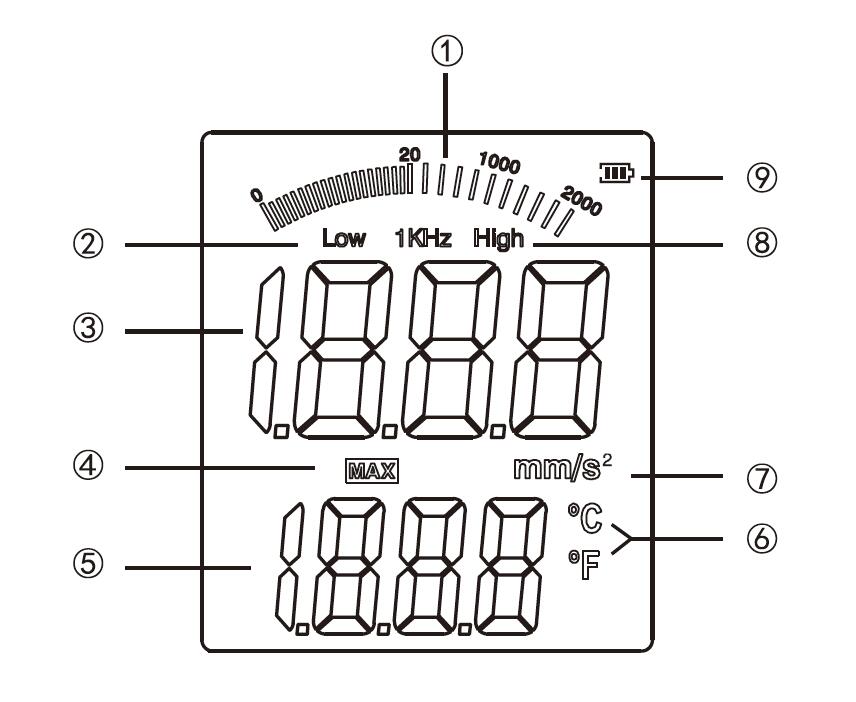

① Frequency analog bar ② LOW: low-frequency indication(<1KHZ) ③ Measurement reading
④ MAX: Maximum value ⑤ Temperature readings ⑥ Temperature unit (C: Degree centigrade, F: Fahrenheit degree)
⑦ Acceleration unit: m/s2, Speed unit: mm/s, Displacement unit: mm ⑧ High: High-frequency indication (>1KHZ) ⑨ Battery level indication

Tips: The use considerations of vibration meter

• Don't dismantle the casing of the instrument.
• Don't use the vibration meter in an environment with explosive gas, steam and damp environment.
• When the measurement is carried out near the rotating part of the machine, operate carefully to avoid being pulled into the machine.
• Please use a dry cloth to wipe the instrument case at the time of cleaning. Don't use corrosive detergents.
• Please take out the battery if the instrument is not in use for a long time or the storage temperature is higher than 50℃ to avoid corrosion to the vibration tester due to battery leakage.
