15 kVA Single Phase Variac Voltage Regulator

15 kVA Single Phase Variac Voltage Regulator

Good performance variac transformer, 15 kVA and single phase for generator, the max output current is 48A and rated output voltage is 0-250V. Direct sale by factory and convenient for you.

SKU: CCHN-VVR-15K

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Single phase variac transformer for sale, 15 kVA cpacity, smooth pressure regulation, light weight, other capacity can be customised.

Note: Support the split phase (L1,L2+N,G), Please contact us.

15 kVA Single Phase Variac Voltage Regulator Features

The rated output voltage is 0-250V and Rated input voltage is 220V.
The rated output current is 48A.
With 15 kVA power, 1 phase.
Widely used in various power supply places with frequency 50 Hz.
High quality and long life variac voltage regulator.

15 kVA Single Phase Variac Voltage Regulator Specifications

Model		CCHN-TDGC2-15K
Phase No		1
Frequency		50/60Hz
Rated Input Voltage		220V
Rated Output Voltage		0-250V
Rated Capacity		15 kVA
Max Output Current		48A
Usage		SVC
Current Type		AC
Actual Output Current		(actual output voltage * rated current) / maximum output voltage
Type		Contact type regulators
Weight		46kg
Dimension	L	370mm
	W	310mm
	H	640mm

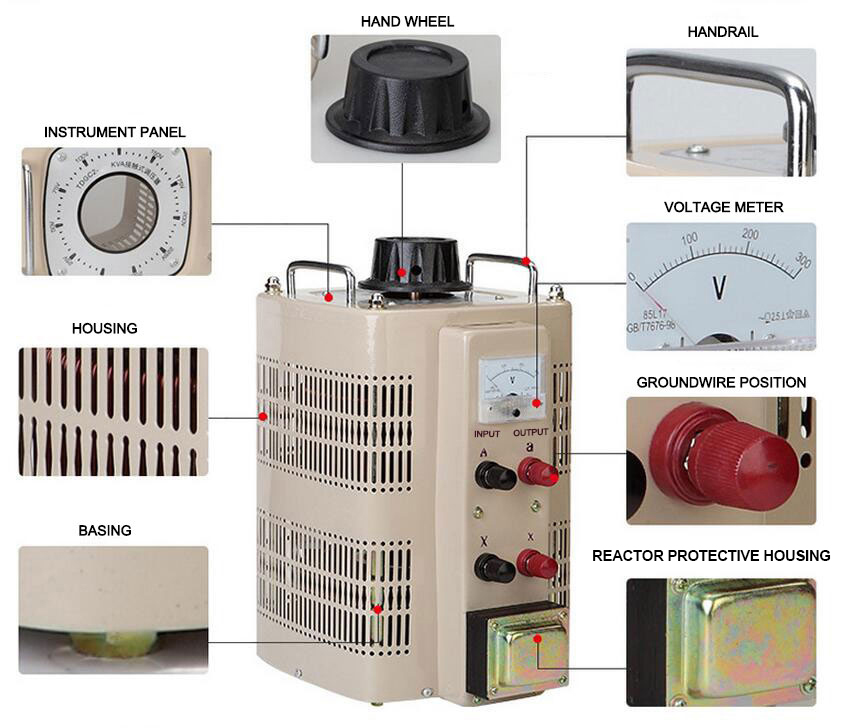

15 kVA Single Phase Variac Voltage Regulator Detail

Tips: Principle of single-phase voltage regulator

Principle: A voltage regulator is a self adjustable transformer with continuous turn ratio. When the voltage regulator brush functions from the handwheel spindle and brush holder, slide along the polished surface of the circle and the turn ratio can be continuously changed, thus adjusting the output voltage smoothly to the maximum value.
