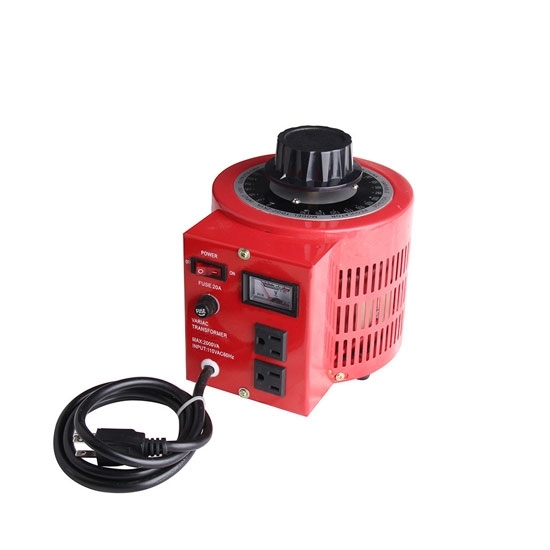

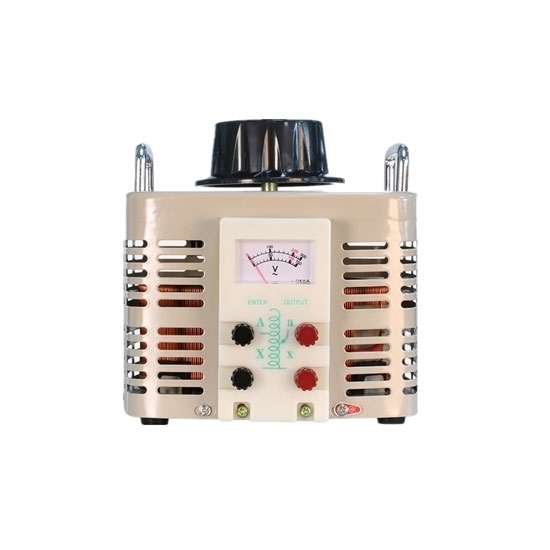

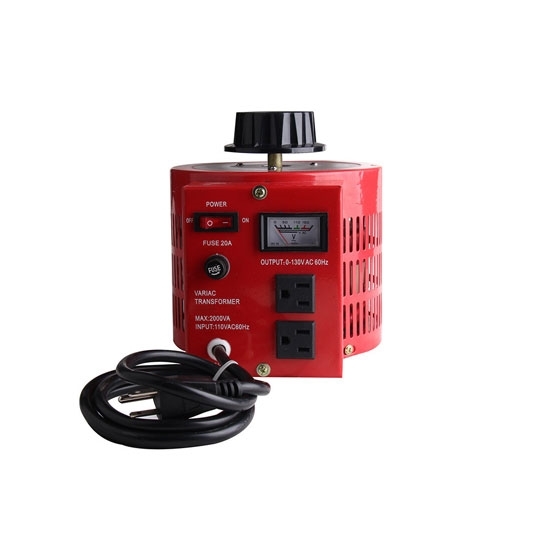

2 kVA Single Phase Variac Voltage Regulator

2 kVA Single Phase Variac Voltage Regulator

Affordable price 2 kVA variac variable transformer, max output current is 6.4A, 110V/220V rated input voltage and 0-250V rated output voltage, frequency 50Hz or 60Hz, single phase for generator, brand new direct sale by factory.

SKU: CCHN-VVR-2K

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

2 kVA Single Phase Variac Voltage Regulator Features

2 kVA single phase variac voltage regulator, high performance and long life with 6.4A max output current. It is widely used in various power supply places with a frequency of 50 Hz and is worth your choice.

2 kVA Single Phase Variac Voltage Regulator Specifications

Model	CCHN-TDGC2-2K
Phase No	1
Frequency	50/60HZ	60Hz
Rated Input voltage	220V	110V
Rated Output voltage	0~250V	0~130V
Rated Capacity	2 kVA	2 kVA
Max Output Current	6.4A	12A
Usage	SVC
Weight	7.5kg
Current Type	AC
Actual Output Current	(actual output voltage * rated current) / maximum output voltage
Type	Contact Type Regulators
Dimension	440245450mm

2 kVA Single Phase Variac Voltage Regulator Detail

Tips: Service conditions of single-phase voltage regulator

Ambient temperature shall be -5℃～ +40℃.
No more than 2000 meters above sea level.
Maximum relative humidity of ambient air is 90% (temperature is at +25℃).
Used in electrical and mechanical manufacturing industry, light industry, scientific experiments, utilities, household appliances, controlled speed regulation, dimming and power control, it’s an ideal AC voltage regulating power supply.
