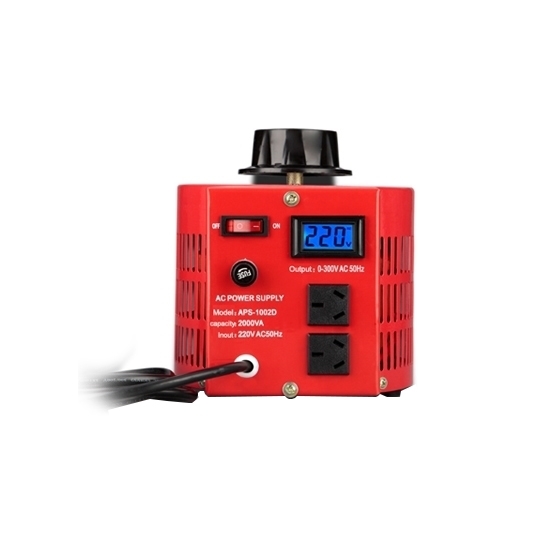

2 kVA Single Phase Variac Voltage Regulator

Single phase variac variable transformer for sale, rated current 6.4A, output voltage adjustable from 0 to 300V AC. The maximum rated power of 2000 VA. 2 kVA variac voltage regulator with overload protection makes it safer to use.

Note: For more specifications, please check the 2 kVA Single Phase Variac Voltage Regulator page.

Specification

• Model: CCHN-APS-2000VA
• Rated Power: 2 kVA
• Number of Power Phase: Single phase
• Input Voltage: 110V/220V
• Frequency: 50/60 Hz
• Rated Full Offset Current: 14.5A/6.4A
• Output adjustable voltage: 0-300V
• Actual Output Current: (actual output voltage * rated current) / maximum output voltage
• Weight: 8 kg
• Dimension: 203mm x 176mm x 180mm
• Certificate: CE

Dimension (Unit mm)

Applications

Variable transformers are widely used for applications such as temperature control, control lighting and testing of laboratory equipment under overvoltage and under-voltage conditions.

Tips: What is a single-phase voltage regulator?

Single-phase voltage regulators are generally used in research, experiments, testing, heating and insulation, soft start, etc. Single-phase voltage regulators provide different voltages to the load, and the voltage can be adjusted linearly in the case of energization. Small single-phase regulators are contacting, the capacity is generally below 30KVA, single-phase 220V input, 0-250V output; three-phase 380V input, 0-420 output. Large single-phase regulators are more types, and capacity, and specifications, can be designed and produced in accordance with the requirements. Like the most common regulator is a single-phase regulator, also often called an automatic single-phase regulator.
