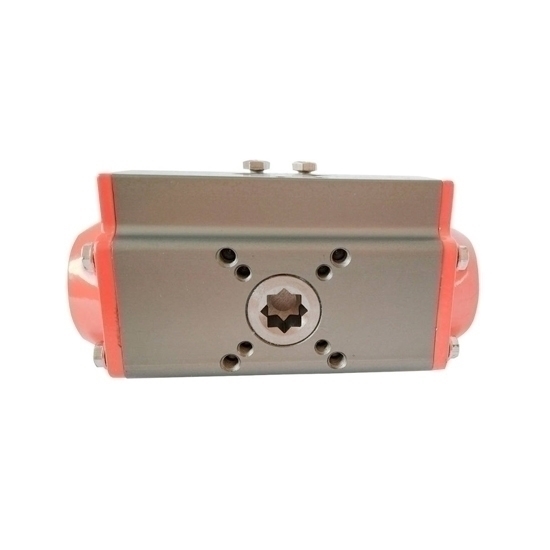

Double Acting Pneumatic Valve Actuator, 270mm Bore Size

Double Acting Pneumatic Valve Actuator, 270mm Bore Size

Economical price double acting pneumatic valve actuator for opening and closing butterfly or ball valve, powered by compressed air, air supply port 1/2 inch, bore size 270mm, air pressure 2.5bar ~ 8bar, optional operating temperature -20℃ ~ 80℃, -35℃ ~ 80℃ or -20℃ ~ 150℃. Small size, light weight, easy to install and operate.

SKU: CCHN-AT-270D

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Pneumatic valve actuator is an executive device that uses air pressure to open and close ball valve, butterfly or regulating valve. The pneumatic actuator is easy to repair and maintain, and has good adaptability to the environment.

Specifiation

Model: CCHN-AT270D
Bore Size: 270mm (10.63 inch)
Air Supply Port: 1/2 inch
Power Source: Compressed Air
Actuator Type: Double Acting
Air Pressure: 2.5bar ~ 8bar
Max Working Pressure: 10bar
Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
Rotation Angle: 90°±5%
Body Material: Aluminum Alloy
Life Time: One Million Time

Dimensions

Pneumatic actuator dimension

CCHN-AT270D

Q	A	B	C	D	E	F	G	H	I
Φ165	730mm	294mm	147mm	147mm	372mm	332mm	30mm	130mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/2"	90mm	62mm	4mm	4mm	20mm	40mm	22.5mm	45mm

Details

Pneumatic valve actuator details

PN	Number	Name	Standard Material
1	4	Position Indicator	Polypropylene+GF
2	1	Position Indicator Seat	Polypropylene+GF
3	1	Snap Ring	Stainless Steel
4	1	Bearing	Stainless Steel
5	1	Bearing	Polyphthalamide
6	1	Bore Body	Extruded Aluminum alloy
7	2	Bearing	Polyphthalamide
8	2	Piston	Die Cast Aluminum
9	2	O-Ring	Nitrile(NBR70)
10	2	Bearing	Polyphthalamide
11	8	End Cover bolt gasket	Stainless Steel
12	2	End Cover bolt	Stainless Steel
13	2	Left and Right end Cover	Die Cast Aluminum
14	2	O-Ring	Nitrile(NBR70)
15	2	Guide Sleeve	Polypropylene+GF
16	1	O-Ring	Nitrile(NBR70)
17	1	Bearing	Nylon46
18	1	Bearing	Polyphthalamide
19	1	Cam Switch	Stainless Steel
20	1	Actuating Shaft	Steel alloy
21	1	Bearing	Nylon46
22	1	O-Ring	Nitrile(NBR70)
23	1	O-Ring	Nitrile(NBR70)
24	2	Spacer for Limit Bolt	Stainless Steel
25	2	Limit Nut	Stainless Steel
26	2	Limit Bolt	Stainless Steel
27	min.5/max.12	Spring	High alloy Spring Steel
28	1	Spring Seat	Polypropylene+GF

Tips: How to maintain a pneumatic valve actuator?

The purpose of using and maintaining the pneumatic valve actuator is to prolong the service life of the valve and ensure reliable opening and closing.
The stem thread often rubs against the stem nut, and should be lubricated with a little yellow dry oil, molybdenum disulfide or graphite powder.
For valves that are not frequently opened and closed, the handwheel should also be rotated regularly, and lubricant should be added to the valve stem threads to prevent sticking.
For outdoor valves, the valve stem should be protected against rain, snow, dust and rust.
If the valve is mechanically in standby, add lubricating oil to the gearbox on time.
Always keep the valve clean.
Frequently inspect and maintain the integrity of other valve components. If the handwheel fixing nut falls off, it should be completely matched and cannot be used, otherwise the four sides of the upper part of the valve stem will become rounded, and the cooperation reliability will be gradually lost, or even unable to start.
Do not rely on the valve to support other heavy objects, and do not stand on the valve.
The valve stem, especially the threaded part, should be wiped frequently, and the lubricant contaminated by dust should be replaced with a new one, because the dust contains hard debris, which is easy to wear the thread and the surface of the valve stem, which affects the service life.
