7.5 HP (5.5 kW) Water Ring Vacuum Pump

The standard seals of 7.5 hp single stage water ring vacuum pump are all used themechanical seals. Water ring vacuum pump with 3300 Pa extreme pressure and stainless steel material. 7.5 hp water vacuum pump is widely used for pumping explosive gases or working in flammable and volatile environments.

SKU: CCHN-WRVP-075

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

A 7.5 hp water ring vacuum pump is a type of industrial vacuum pump that operates using a liquid ring as its primary mechanism for creating suction. Liquid ring pump known for its relatively simple design, robustness, and ability to handle a wide range of gases and vapors, including those that may contain particulates or liquids.

Features:

Equipped with cavitation protection pipe interface.
Flexible exhaust port design, no over compression.
Designed with coaxial direct connection, which saves space and is easy to install.
Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

Model: CCHN-2BV5111
Power: 7.5 hp (5.5 kW)
Rated Voltage: 380V
Phase: 3 phase
Frequency: 50 Hz
Max Gas Volume: 230 m³/h
Extreme Pressure: 3300 Pa
Noise: 68 dB
Material: stainless steel
Net Weight: 110kg

Details

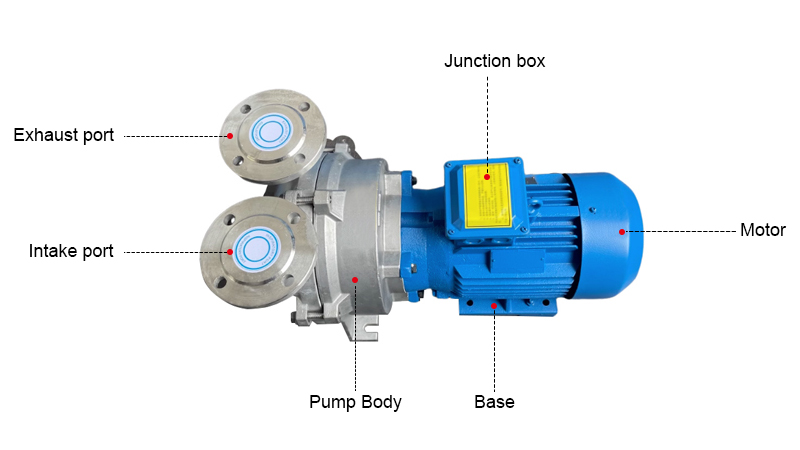

5500W Water Ring Vacuum Pump Details

Dimension (Unit: mm)

Water ring vacuum pump 2bv5 dimension

2BV5-111	A	B	B1	B2	C1	C2	H1
	672	325	255	216	38	26	150
	H2	H3	H4	H5	H6	H7	K
	166	207	371	368	48	68	340
	L	F	N	S1	S2	T	d1
	130	500	97	φ12×23	φ12	340	19
	d2	d3	d4	d5	W1	W2	W3
	160	123	97	52	180	52	27
	N3.0	N4.2	N8.7	/	/	/	/
	G3/4"	G3/8"	G3/8"	/	/	/	/

Application:

Water ring vacuum pump application

Tips: Water Ring Vacuum Pump Advantages

Reliable and durable. Water ring vacuum pumps are known for their robust design and can operate continuously without significant wear and tear. They are highly reliable and have a long service life, making them suitable for demanding industrial environments.
Wide range of applications. Water ring vacuum pumps are versatile and can handle a wide range of gases and vapors, making them suitable for various applications such as vacuum distillation, vacuum filtration, degassing, drying, and more.
Self-priming capability. Water ring vacuum pumps are capable of self-priming, which means they can start pumping without needing additional priming or pre-filling of the pump chamber. This makes them easy to operate and minimizes the need for additional equipment.
