5.5 HP (4 kW) Water Ring Vacuum Pump

Aluminum bronze impeller is of high intensity and wearing well. The erosive-proof capacity of the vacuum pump can be improved by using it. 5.5 hp water ring pump is favored in industries requiring continuous or heavy-duty vacuum operations, such as food processing, pharmaceuticals, plastics manufacturing, and more.

Features:

• Equipped with cavitation protection pipe interface.
• Flexible exhaust port design, no over compression.
• Designed with coaxial direct connection, which saves space and is easy to install.
• Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

• Model: CCHN-2BV5110
• Power: 5.5 hp (4 kW)
• Rated Voltage: 380V
• Phase: 3 phase
• Frequency: 50 Hz
• Max Gas Volume: 165 m³/h
• Extreme Pressure: 3300 Pa
• Noise: 63 dB
• Material: stainless steel
• Net Weight: 94kg

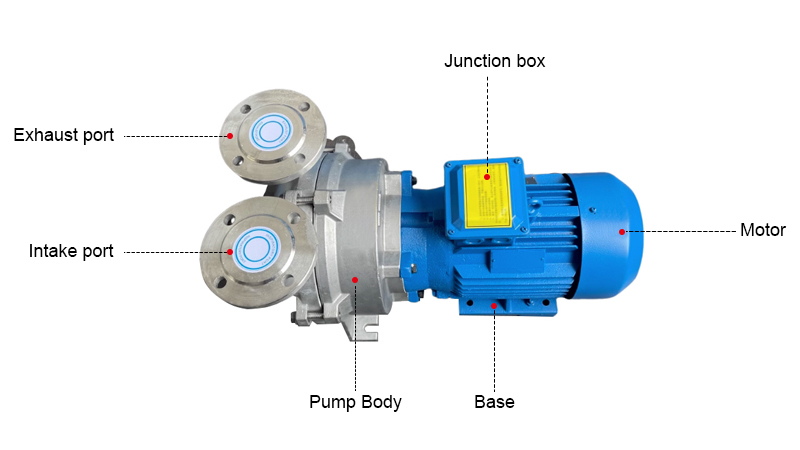

Details

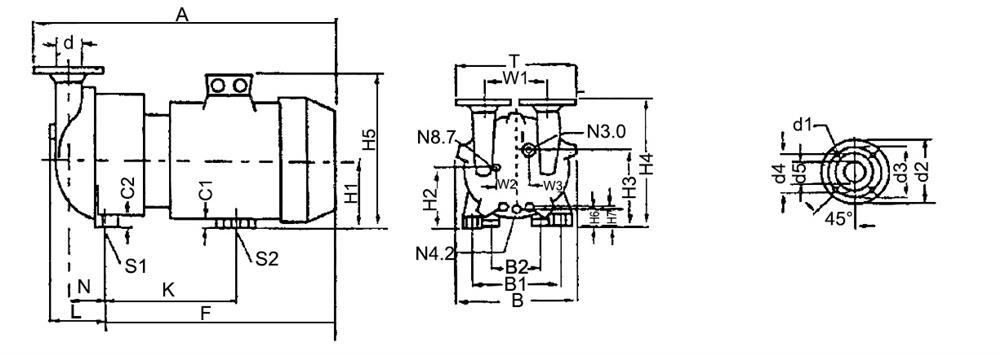

Dimension (Unit: mm)

Application:

Tips: How Does Water Ring Vacuum Pump Work?

A water ring vacuum pump is a type of positive displacement pump that is used to create a vacuum in various industrial applications. It operates based on the principle of creating a rotating liquid ring to compress and evacuate gases from a closed system. This cyclic process of creating a rotating liquid ring, trapping and compressing gases, and discharging them is repeated continuously to maintain the desired level of vacuum in the system.
