5 HP (3.85 kW) Water Ring Vacuum Pump

Water ring vacuum pump adopts high quality mechanical seal as standard configuration. The motor of this type vacuum pump with protection grade of IP54. 5 hp water vacuum pump finds application in industries requiring continuous or intermittent vacuum generation, such as food processing, chemical and pharmaceutical manufacturing, plastics production, and environmental processes like wastewater treatment.

Features:

• Equipped with cavitation protection pipe interface.
• Flexible exhaust port design, no over compression.
• Designed with coaxial direct connection, which saves space and is easy to install.
• Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

• Model: CCHN-2BV2071
• Power: 5 hp (3.85 kW)
• Rated Voltage: 380V
• Phase: 3 phase
• Frequency: 50 Hz
• Max Gas Volume: 110 m³/h
• Extreme Pressure: 3300 Pa
• Noise: 72 dB
• Material: stainless steel
• Net Weight: 62kg

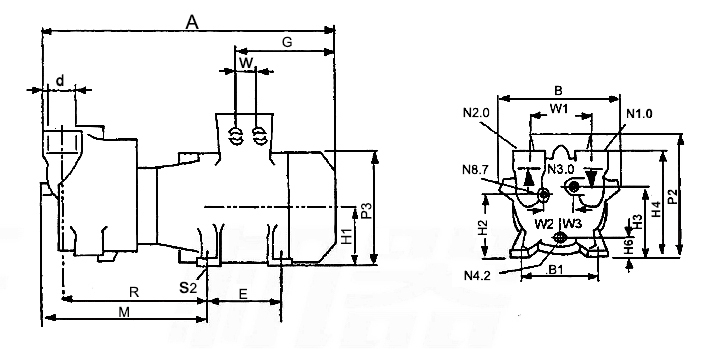

Dimension (Unit: mm)

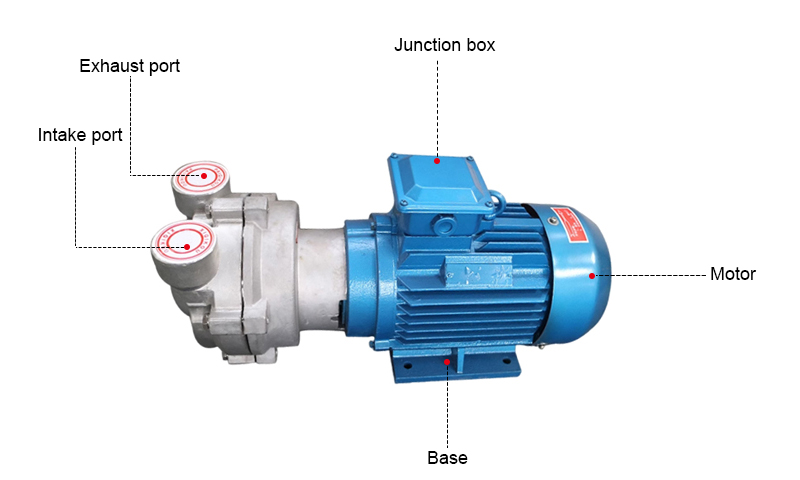

Details

Application:

Tips: Water Ring Vacuum Pump Troubleshooting

• Poor vacuum performance. Ensure that there is a sufficient and continuous supply of clean water to the pump. Insufficient water supply can result in reduced pump performance. Verify that the seal water is properly flowing and at the correct pressure. Inadequate seal water can affect the formation of the water ring inside the pump and reduce its performance.
• Cavitation. Cavitation occurs when air or gas bubbles form in the water ring, leading to pump performance issues. Inspect impeller and casing.Cavitation can cause damage to the impeller and casing. Inspect them for any signs of wear or damage and replace if necessary.
• Leakage. Checking seals and gaskets, inspect the seals and gaskets for any signs of wear, damage, or misalignment.Replace them if needed.
