2 HP (1.45 kW) Water Ring Vacuum Pump

Water ring type vacuum pump with 2 hp power and stainless steel material in affordable price for sale. The waterproof level of the liquid ring pump motor has reached IP54. The water ring design provides smooth, continuous operation with minimal vibration and noise. 2 hp water ring pump is commonly used in packaging, plastics manufacturing, and environmental processes.

SKU: CCHN-WRVP-02

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

The basic principle behind the operation of a 2 hp water ring vacuum pump is the use of a rotating impeller with blades or vanes that are partially submerged in water or another liquid, forming a liquid ring inside the pump's casing.

Features:

Equipped with cavitation protection pipe interface.
Flexible exhaust port design, no over compression.
Designed with coaxial direct connection, which saves space and is easy to install.
Vacuum pump adopts high quality mechanical seal as standard configuration.

Specification:

Model: CCHN-2BV2061
Power: 2 hp (1.45 kW)
Phase: 3 phase
Rated Voltage: 380V
Frequency: 50 Hz
Max Gas Volume: 52 m³/h
Extreme Pressure: 3300 Pa
Noise: 65 dB
Material: stainless steel
Net Weight: 33kg

Dimension (Unit: mm)

Water ring vacuum pump dimension 2bv2

2BV2-061	A	B	B1	E	H1	H2	H3
	476	186	140	100	90	118	195
	H4	H6	M	P2	P3	R	S2
	186	37.5	286	250	195	203	φ10
	W1	W2	W3	d	N3.0	N4.2	N8.7
	110	25.5	21	G1	G3/8"	G1/4"	G3/8"

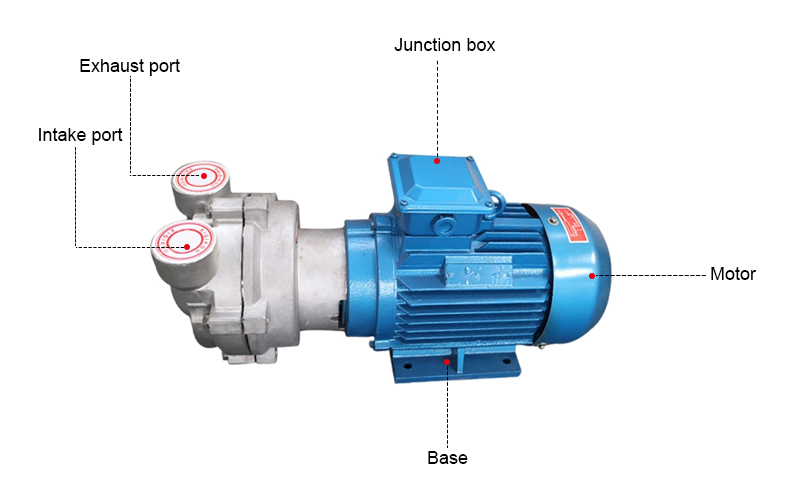

Details

Application:

Water ring vacuum pump application

Tips: How to Maintain Water Ring Vacuum Pump?

Check and maintain the water supply. Water is used to create the vacuum in a water ring vacuum pump, so it is crucial to maintain a constant and adequate water supply.
Inspect and clean the pump regularly. Regularly inspect the pump for any signs of wear and tear, corrosion, or damage. Clean the pump's internal and external components, including the impeller, casing, and other parts, to remove dirt, debris, or scale buildup.
Check and maintain the seals. Seals are crucial for the proper operation of a water ring vacuum pump. Inspect the seals regularly for any signs of leakage or wear. Replace any damaged or worn-out seals immediately to prevent loss of vacuum performance and to avoid damage to the pump.
