12V Lighted Toggle Switch, 6 Pin

Lighted toggle switch 12 volt, 2 position, 4/5/6 pin, rated current 5 Amp, IP67, waterproof, dustproof and corrosion resistant, LED lighting color red, yellow, blue, green and white. Suitable for on-off power supply and switching circuit in household appliances, instruments and various electronic equipment.

SKU: CCHN-TS-AD16102E

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

4/5/6 Pin toggle switch with LED light, led light colors are available in red, yellow, blue, green and white, 2 position on off, the life of electrical appliances exceeds 50,000 times, flexible handle, easy to control.

Specification

Model	CCHN-TS-AD16102E
Rated Current	5A
Rated Voltage	3~250V AC/DC
Position	2 Position, on/off
Pin	4, 5, 6 Pin
LED Life Time	≤50,000 Times
Insulation Resistance	≥100 MΩ
Action Force	2.0±0.2N
Action Method	Automatic Lock
Protection Level	IP67
Operating Temperature	-25℃~55℃
Contact Resistance	25mΩ
Nut Tightening Force	16N
Electrical Life Time	≥50,000 Times
Switch Stroke	1.2mm
Warranty	12 Months
Weight	17.8g

Lighted 12V Toggle Switch Dimension (unit: mm)

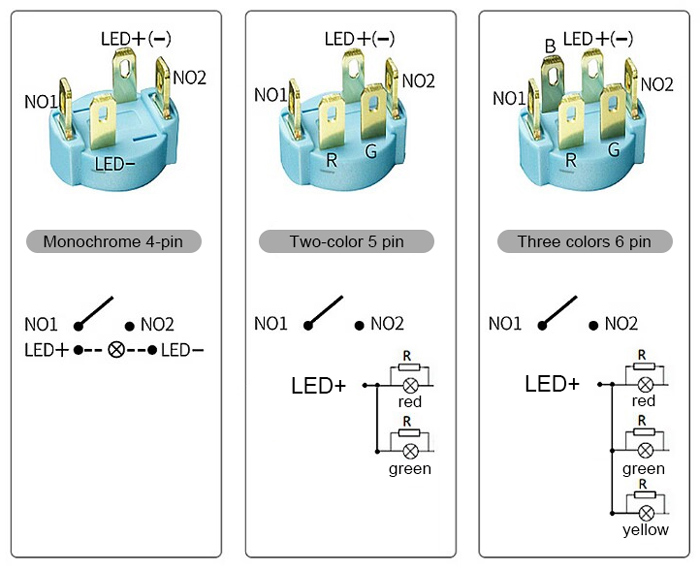

Pin Definition

Toggle switch pin definition

Tips: What are the components of the toggle switch?

Iron shell (the material is generally iron, the treatment process: through the process of electroplating nickel or black potting, so as to prevent its oxidation)
Plastic handle (the material is generally POM material, if there is a requirement for fire resistance, flame retardancy and high temperature resistance, PA nylon material processing technology is often used for injection molding)
Terminal (the material is generally phosphor bronze, the treatment process is electroplated silver)
Insulation bottom plate (material bakelite, processing technology stamping and forming)
Contact chip (the material is generally phosphor copper, and the treatment process is electroplated silver)
Round wave beads (the material is generally stainless steel, the treatment process is electroplated nickel)
Slingshot (material bronze, stamping and forming by processing technology)
Decorative oil (a kind of red oil or green oil chemical oil, which is applied to the contact part of the terminal and the bottom plate to play a decorative role.)
