0-1300 μm Digital Paint Coating Thickness Gauge, Film/Powder/Zinc

0-1300 μm Digital Paint Coating Thickness Gauge, Film/Powder/Zinc

Factory price coating thickness gauge for sale online. Paint thickness gauge with a built-in precision probe can work under the principle of electromagnetic induction and eddy current. It has a 0-1300μm measuring range, ±3%+2μm accuracy, and 0.1μm resolution. The paint thickness tester can be measured quickly and accurately without damage.

SKU: CCHN-CTG-1300

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Buy coating thickness gauge at low price. A paint depth gauge is a thickness measuring tool that can work stably in laboratories, workshops and outdoors. The paint thickness tester has a 0-1300μm measuring range, ±3%+2μm accuracy, and 0.1μm resolution.

Specifications

Model	CCHN-TC-100
Sensing Probe	Ferromagnetism	Non-Ferromagnetic
Working Principle	Electromagnetic Induction	Eddy Current Effect
Measuring Range	0-1300μm	0-1300μm
Accuracy	±3%+2μm	±3%+2μm
Resolution	0.1μm	0.1μm
Minimum Thickness	0.5mm	0.3mm
Minimum Curvature Radius	1.5mm
Minimum Measuring Area (Diameter)	6mm
Unit	μm/ mil

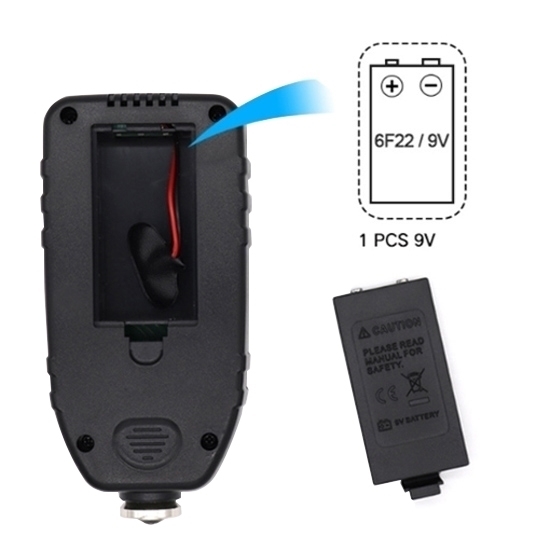

Power Supply	9V
Operating Environment	Temperature: 0-40℃ (32-104°F)
	Humidity: 20%-90%RH
	No Strong Magnetic Field

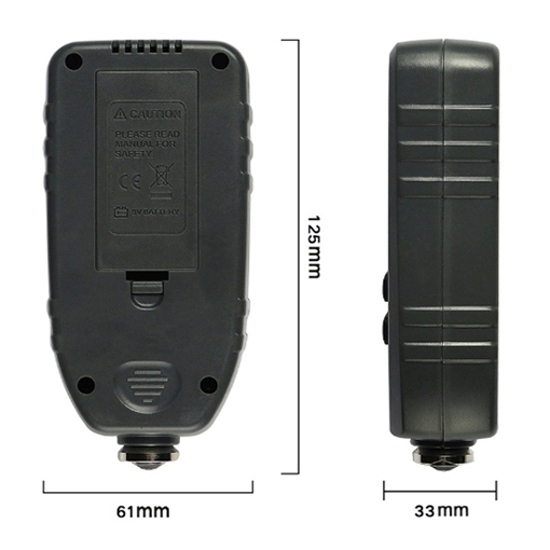

Dimensions	125mm61mm33mm
Net Weight	0.1kg
Package Weight	0.4kg

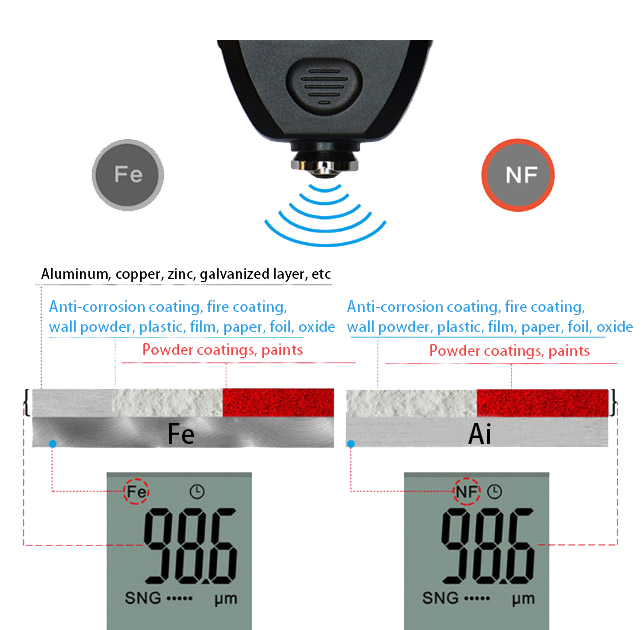

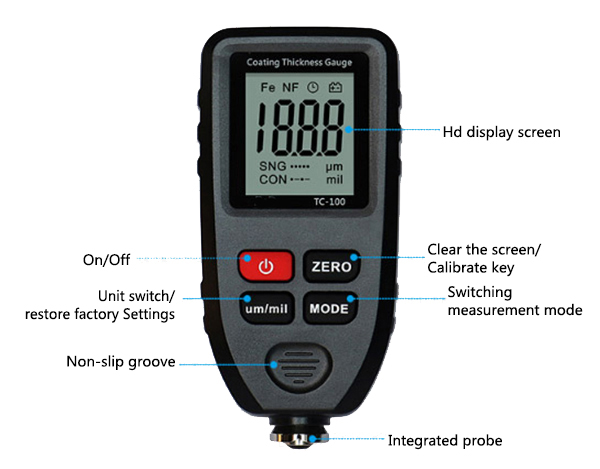

0-1300μm Coating Thickness Gauge Details

0-1300um Coating Thickness Gauge Details

Tips: Features of coating thickness gauge

The coating thickness gauge has small measurement error, high reliability, good stability and easy operation. The paint thickness gauge is an indispensable testing instrument to control and ensure product quality and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.
