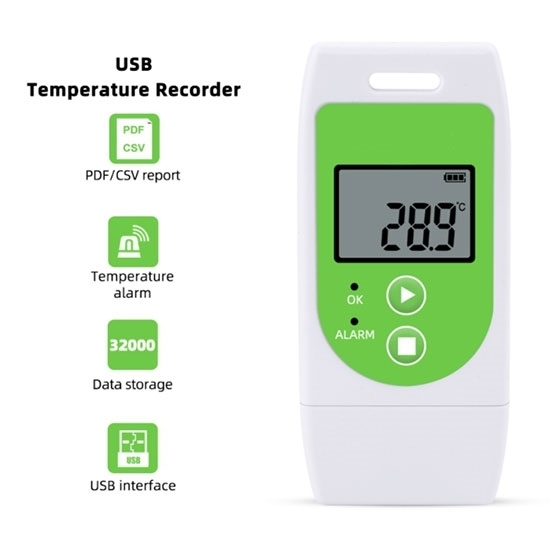

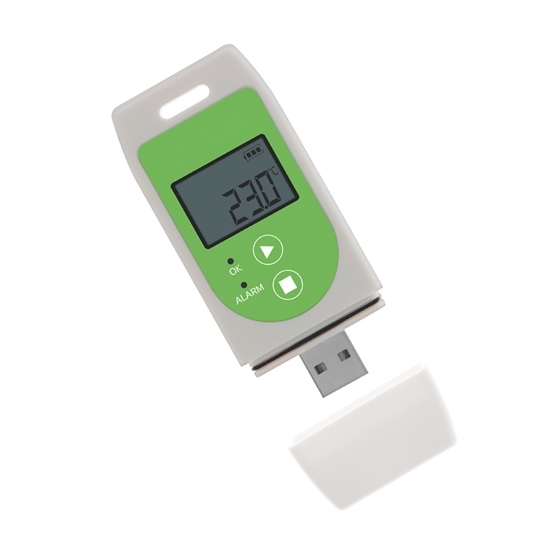

Portable USB Temperature Data Logger

Portable USB temperature data logger with LCD display, shows real time digital data. PDF and CSV report can be automatically generated on the computer. Temp recording range from -30℃ ~ 60℃, this data recorder is mainly used in medical, storage, freezer and shipping.

SKU: CCHN-TDL-U04

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Multi use temperature data logger has wide measuring range, high accuracy and large data memory. It is mainly used for temp and humidity mapping during storage and transportation of vaccines, food, medicine, chemicals and other products. After recording, insert this data recorder into the USB port of PC, it will automatically generate PDF and CSV reports without any software.

Specification

Model	CCHN-TDL-U04
Usage Type	Multi-use
Recording Mode	Push-To-Start or Start Delay
Temperature Scale	℃ or ℉
Operating Range	-30℃ ~ 60℃
Accuracy	±0.5℃ (-20℃ ~ +40℃), ±1.0 (Other Range)
Resolution	0.1
Memory Capacity	32,000
Logging Interval	Programmable (10s ~ 18h) [Default: 10mins]
Start Delay	Programmable (0 ~ 254mins) [Default: 30mins]
Alarm Delay	Programmable (0 ~ 960mins) [Default: 10mins]
Alarm Range	Programmable high or low alarm limit [Default: <2℃ or >8℃, <40%RH or >80%RH]
Shelf Life / Battery	Typically 1 year, CR2032 3.0V Lithium Battery (Depending on sampling rate and environment)
Report Generation	Simultaneously generate PDF report and CSV file
Communication Interface	USB 2.0
Waterproof Level	IP65 (with Waterproof O-ring)
Time Zone	UTC + 0:00 (Default)

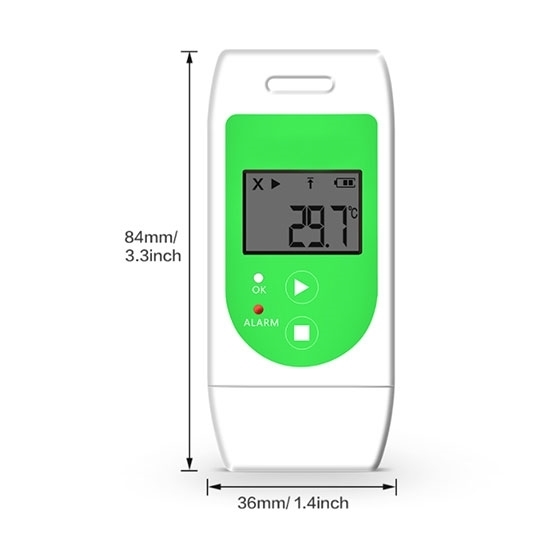

Demension	84mm * 36mm * 14mm
Net Weight	25g

Details

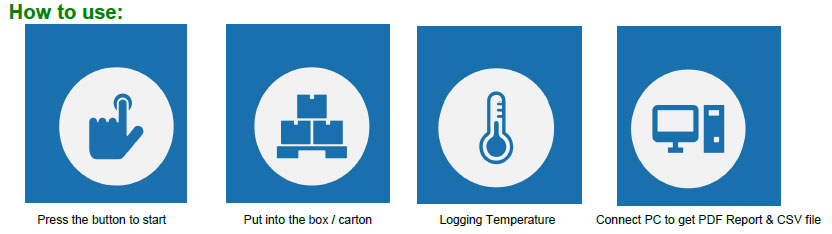

How to use

How to Use the Portable USB Temperature Data Logger

Applications

Applications of Portable USB Temperature Data Logger
