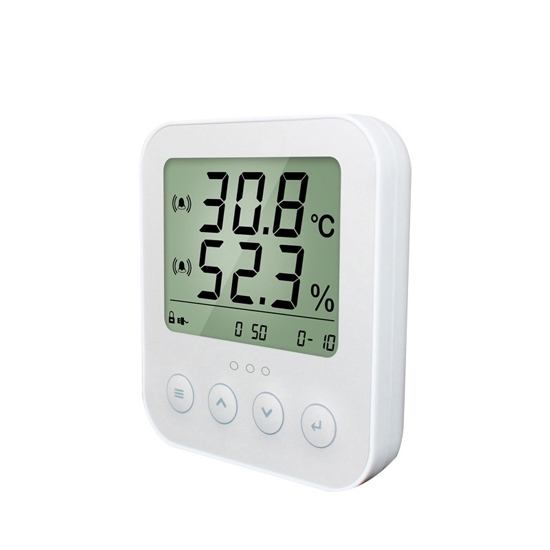

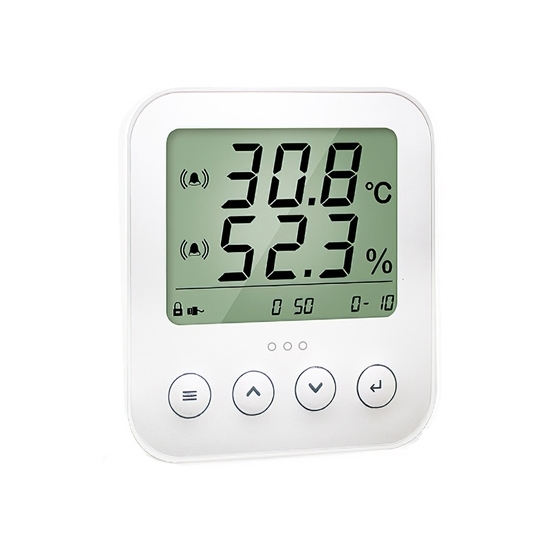

Wall Mounted Temperature and Humidity Transmitter with Display, 4-20mA/RS485/0-10V

Wall Mounted Temperature and Humidity Transmitter with Display, 4-20mA/RS485/0-10V

Buy a sensor for humidity and temperature online. This industrial temperature & humidity transmitter uses a high-quality capacitive digital sensor with high accuracy and strong anti-interference ability. Wall-mounted or duct-mounted, clear LCD display, 0~10V/0~5V/0~1V/4~20mA/RS485 output signals are optional.

SKU: CCHN-TAHT-AW

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Wall mounted temperature & humidity transmitter with display manufacturer direct sale, equipped with high and low temperature & humidity sound and light alarm functions, high precision capacitive digital sensor and 0-10V/0-5V/0-1V/4-20mA/RS485 output signal, can be used in most industrial environments.

Features

CCHN wall/duct mounted temperature & humidity transmitter features a large LCD display for real-time monitoring, providing clear and intuitive data visualization.
It includes an alarm indicator light that activates when temperature or humidity exceeds preset upper or lower limits, ensuring timely alerts.
This temp and humidity sensor utilizes a high-quality capacitive digital sensor for accurate measurements, providing a wide measuring range, strong anti-interference capability, and stable performance. The USB interface can be used as a device power supply port.
It can support data logging and storage functions, with a built-in clock, making it ideal for industries like pharmaceuticals that require reliable data traceability.

Specifications

Model	CCHN-AW3010A	CCHN-AW3020A	CCHN-AW3485A
Measurement Range	Temperature: -20~60℃; Humidity: 0~99.9%RH
Accuracy	Temperature: ±0.3℃; Humidity: ±2%RH (25℃)
Resolution	Temperature: 0.1℃; Humidity: 0.1%RH
Attenuation Value	Temperature: <0.1℃/year; Humidity: <0.1%RH/year
Sensor	Capacitive Humidity Sensor
Response Time	Temperature: 5s; Humidity: 5s 1/e(63%)
Operating Voltage	DC: 15~36V (USB 5V)	DC: 20~36V (USB 5V)	DC: 9~36V (USB 5V)
Output	0~10V/0~5V/0~1V	4-20mA	RS485
Communication Protocol	N/A	N/A	Standard MODBUS RTU Protocol
Sampling Period	N/A	N/A	2.5s
Product Power Consumption	<20mA		<50mA
Display	LCD Display

Dimension (Unit: mm)

Wall mounted temperature & humidity transmitter dimension

4-20mA Wiring

Wall mounted temperature & humidity transmitter wiring

0-10V/0-5V/0-1V Wiring

Wall mounted temperature & humidity transmitter wiring

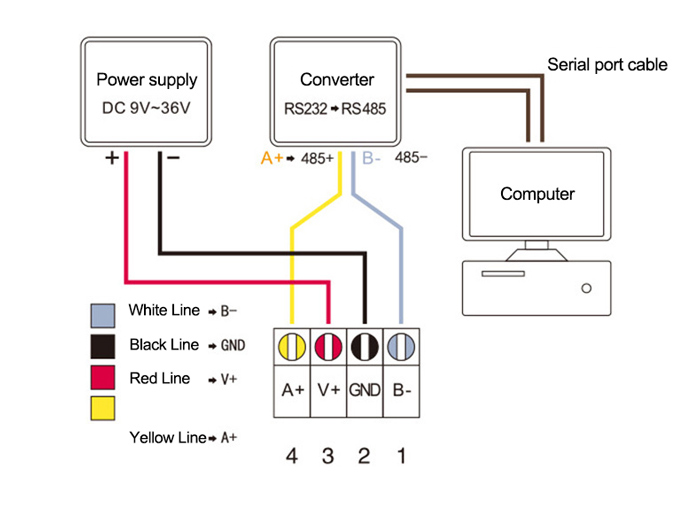

RS485 Wiring

Wall mounted temperature & humidity transmitter wiring

Details

Tips: "4-20mA/RS485/0-10V output" in Temperature and Humidity Sensor

Temperature and humidity sensors with 4-20mA, RS485, or 0-10V output are designed for easy integration with various industrial control systems.

4-20mA Output: A standard analog signal widely used for long-distance transmission with strong anti-interference capability. Common in industrial automation.
RS485 Output: A digital communication interface, often using Modbus protocol, suitable for multi-point data transmission and precise monitoring.
0-10V Output: Another analog signal option, typically used for short-distance transmission in building automation or HVAC systems.
These output options allow the temp and humidity sensor to be connected to PLCs, data loggers, or monitoring systems for real-time data collection and control.
