Temp and Humidity Sensor/Transmitter, Duct/Wall Mounted, 0-10V

Temperature and humidity transmitter adopts a digital temperature and humidity sensor, and converts air temperature and humidity into 0-10V standard signal. Industrial temperature and humidity transmitter has explosion-proof aluminum alloy housing, metal filter screen, wide measuring range, high measurement accuracy in high-low temperature and humidity, fast response, excellent long-term stability and anti-chemical pollution.

SKU: CCHN-TAHT-FG6010

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Temperature and humidity transmitter has built-in digital temperature humidity sensor, 0-10V analog output.

Application: Temperature and humidity transmitter is widely used in electronics, pharmaceuticals, food, storage, tobacco, textiles, weather and other industries.
Specification:

Model	CCHN-FG6010A
Weight	39.0g
Dimension	Ф15.7, length 200mm
Output signal	0-10V
Supply voltage	DC 12-36V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+120℃
Accuracy of humidity	±3%RH (25℃)
Accuracy of temperature	±0.5℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year
Current consumption	＜10mA
Response time	(90%) static air 8s
Power-on time	3s
Housing material	Aluminum alloy
Working environment	Temperature: -40~120℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜90%RH
Product packing list	1CCHN-TAHT-FG6010 with 3m four-core shield wire, 1flange (duct mounted), 1flange (wall mounted), 2mounting screw
Wiring	Red: V+, black: GND, yellow: RH (humidity output 0-10V), white: T (temperature output 0-10V)

Dimensional drawing (unit: mm):
Temperature and humidity transmitter FG6010 dimensional drawing
Pin assignment:

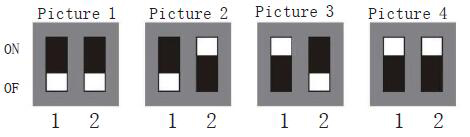

Temperature measurement range setting

Temperature Measurement Range Setting

P1：0-50 degrees centigrade
P2：-20~80 degrees centigrade
P3：-40~60 degrees centigrade
P4：-40~120 degrees centigrade
Note : please switch off the transmitter power before you select the dial switch for the measuring range.

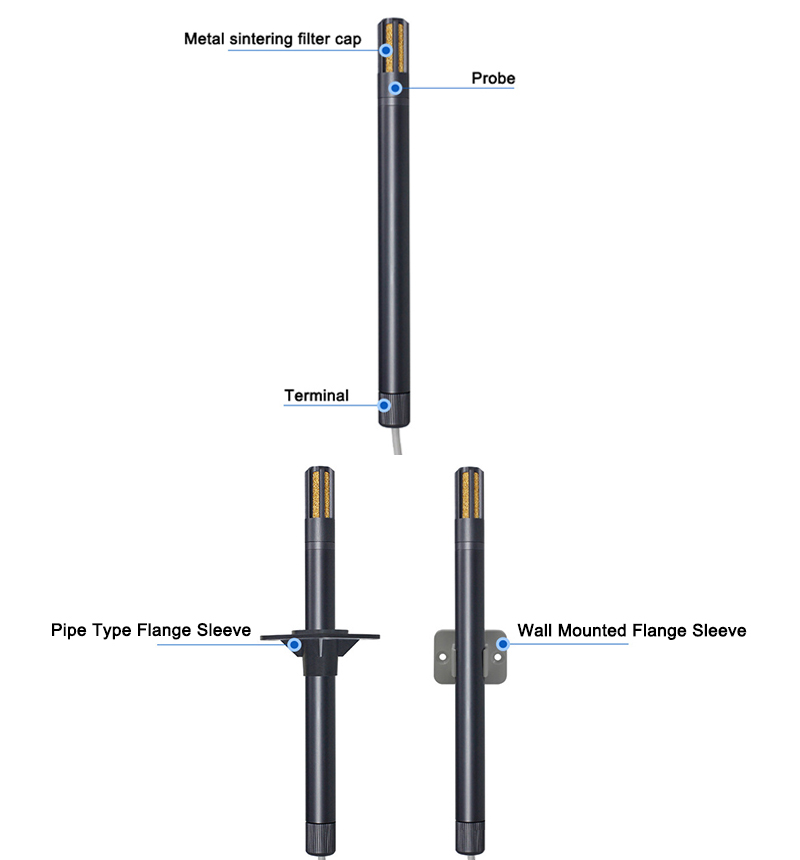

Details

Tips: How to choose the measuring range and accuracy of temperature and humidity sensors?
Different working environments have different requirements for humidity, and the measuring range shall be determined firstly when selecting a temperature and humidity sensor. Generally, humidity measurement doesn't need a full range of 0-100％RH. Moreover, the purposes of most measurements are for automatic control, the measuring range and control range shall be selected by site requirements. The measuring range can be presented to CCHN according to the needs, especially the error requirements of the commonly used humidity section. In this way, it is equivalent to improving the measurement accuracy.
Measuring accuracy is an important indicator of the temperature and humidity sensor, different accuracy leads to different manufacturing cost, and the selling price is thereof different. So when choosing a temperature and humidity sensor/transmitter, please refer to the actual situation or contact CCHN customer service.
