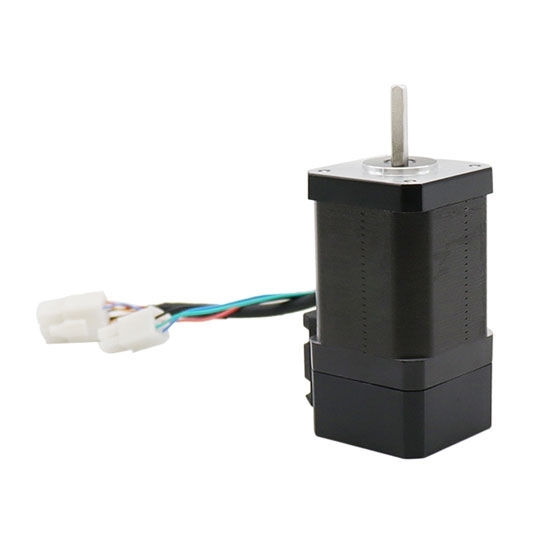

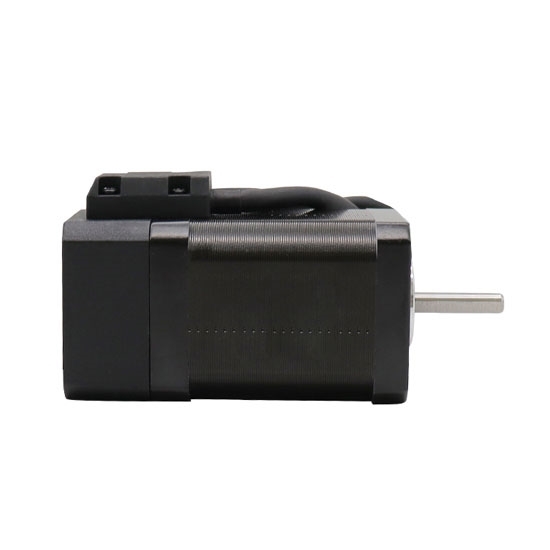

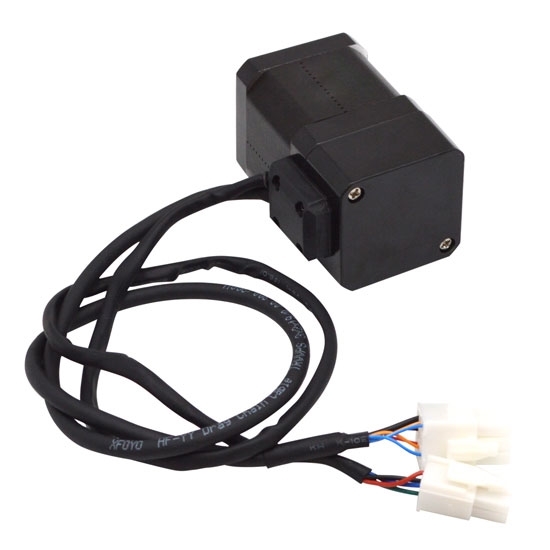

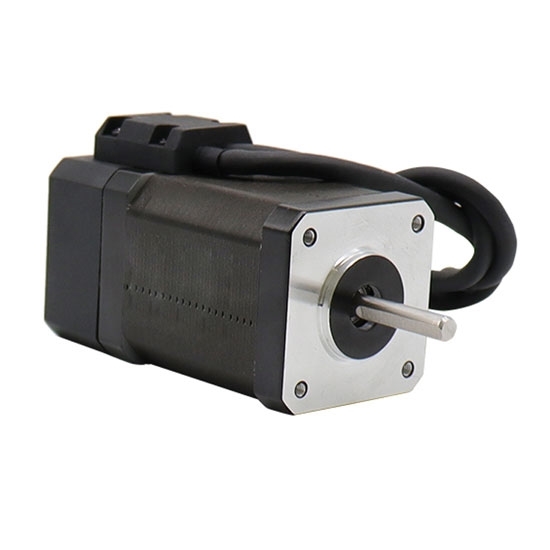

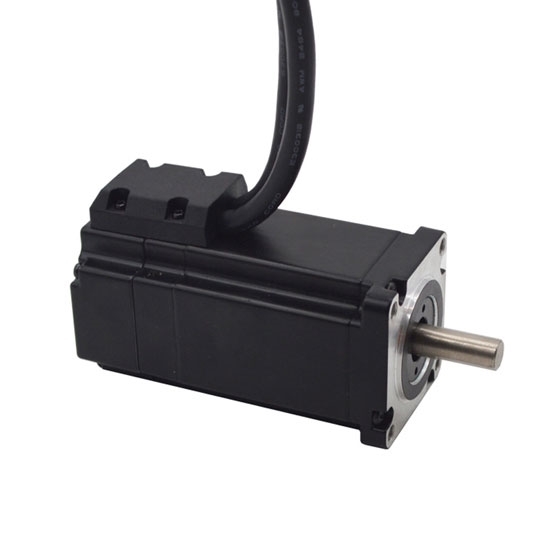

Nema 17 42 x 42mm closed loop hybrid stepper motor at low price, low noise, high torque and high efficiency. Step angle 1.8°, rated current 2A, motor length 60mm, holding torque 0.4N·m. ATO permanent magnet stepper motor with encoder is used for CNC machine, sewing machine and 3D printer.

SKU: CCHN-STEP-17CM200

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Nema 17 closed loop hybrid stepper motor with encoder for sale, precise positioning, fast response and high torque, is widely used for robot arm, sewing machine, CNC router, 3D printer, welding machine, textile equipment and laser cutter, etc.

Physical Specification

Model Number: CCHN-FY42EM200BC1
Matched the Driver Model: CCHN-FYDB504T
Flanged Size: 42 x 42mm (Nema 17)
Motor Length: 60mm
Shaft Diameter: 5mm
Number of Leads: 4 wire
Weight: 0.24kg

Electrical Specification

Motor Type: Bipolar Closed Loop Stepper
Step Angle: 1.8°
Rated Current: 2A
Holding Torque: 0.4N·m (40 N·cm, 57 Oz.in)
Phase Resistance: 0.8Ω
Phase Inductance: 1.9mH
Rotor Inertia: 57g·cm²
Encoder: A, B two-channel signal, 1000ppr (default)/2500ppr, 5V DC power supply

Dimensions (Unit: mm)

L=60mm

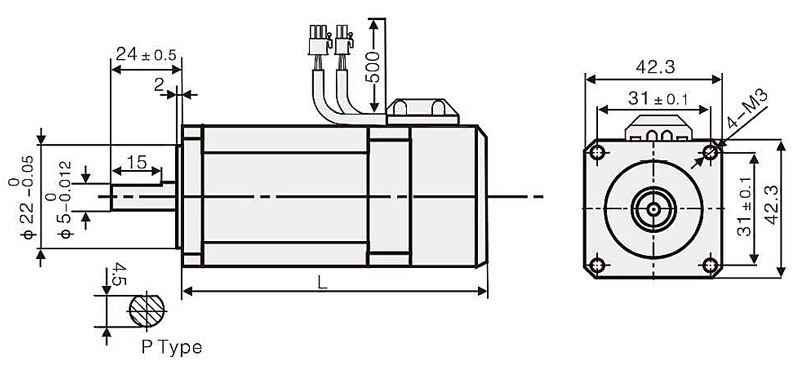

Dimensions of Nema 17 2 Phase Closed Loop Stepper Motor

Wiring Diagram

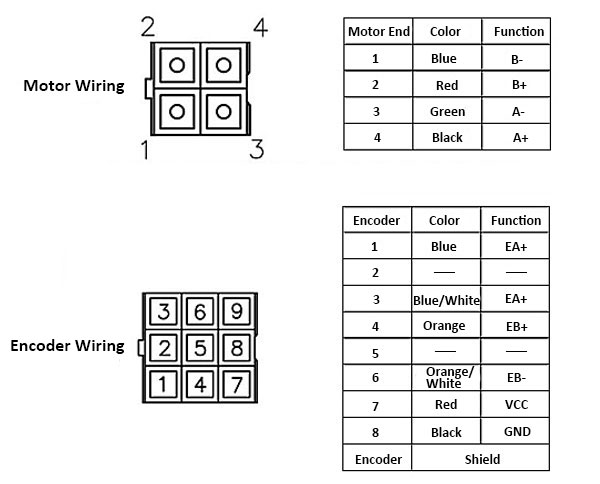

Wiring Diagram of Nema 17 2 Phase Closed Loop Stepper Motor

Speed-Torque Curve Diagram

Speed Torque Curve Diagram of Nema 17 2 Phase Closed Loop Stepper Motor

Details

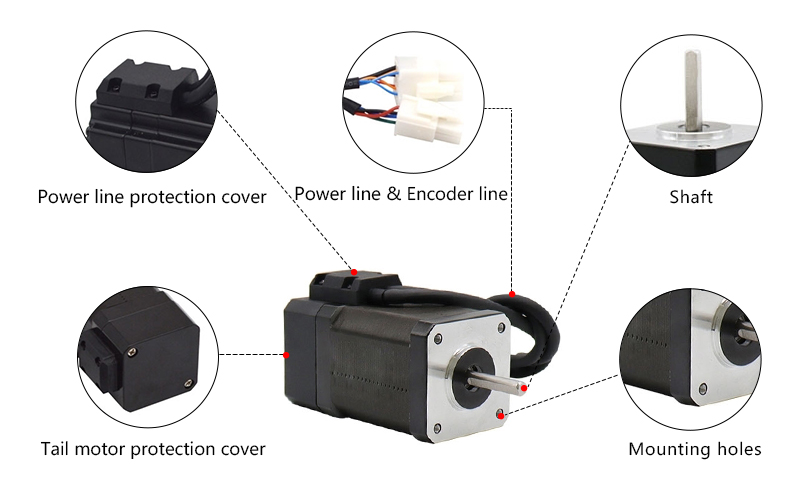

Nema 17 Closed Loop Stepper Motor 0.4N·m-0.75N·m

Tips: Hybrid stepper motor basic

As an executive element, the best hybrid stepper motor is one of the key products of mechatronics and is widely used in various automation control systems.
Stepper motor is an electric motor that converts electrical pulses into angular displacement. In other words, when the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (that is step angle) in the set direction. The angular displacement can be controlled by controlling the number of pulses, so as to achieve the purpose of accurate positioning. At the same time, the speed and acceleration of the motor rotation can be controlled by controlling the pulse frequency, so as to achieve the purpose of speed regulation.
