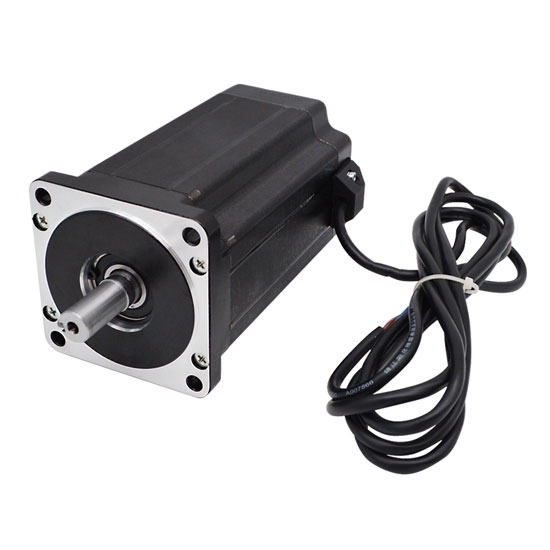

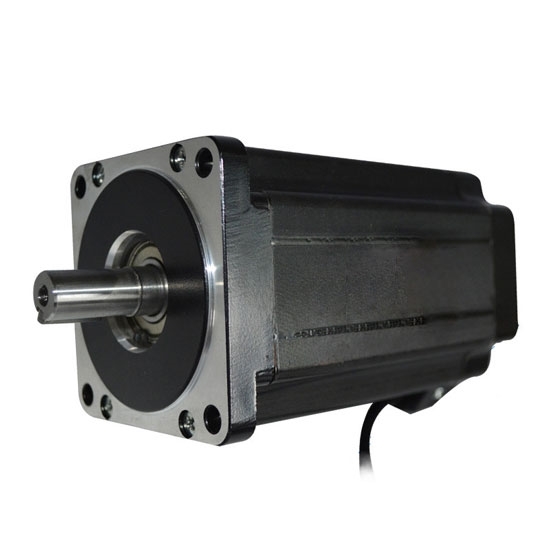

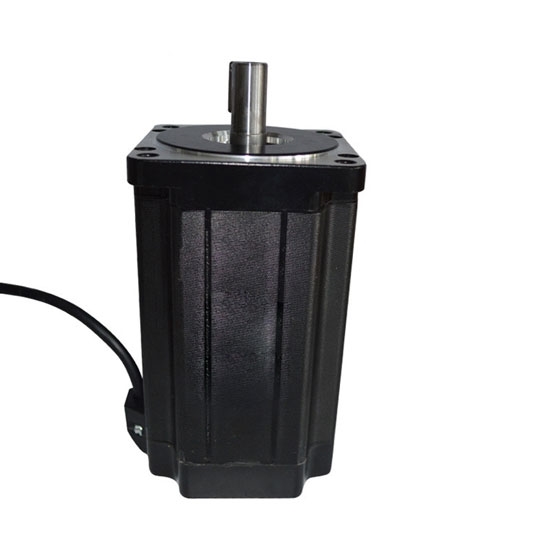

Nema 34 Stepper Motor, 3 Phase, 2A, 4N·m

Nema 34 hybrid stepper motor has 97mm length for CNC machine, 3D printer, robot arm, laser cutter and so on. This 3 phase bipolar stepper motor is typically open loop allowing for a holding torque of 400N·cm (4N·m).

Physical Specification

• Model Number: CCHN-FY86TM200A
• Matched the Driver Model: CCHN-FYTM2205T
• Flanged Size: 86 x 86mm (Nema 34)
• Motor Length: 97mm
• Shaft Diameter: 14mm
• Number of Leads: 4 wire
• Weight: 2.8kg

Electrical Specification

• Motor Type: Bipolar Stepper
• Step Angle: 1.2°
• Rated Current: 2A
• Holding Torque: 4 N·m (400 N·cm, 566 Oz.in)
• Phase Resistance: 4.65Ω
• Phase Inductance: 14.6mH
• Rotor Inertia: 2400g·cm²

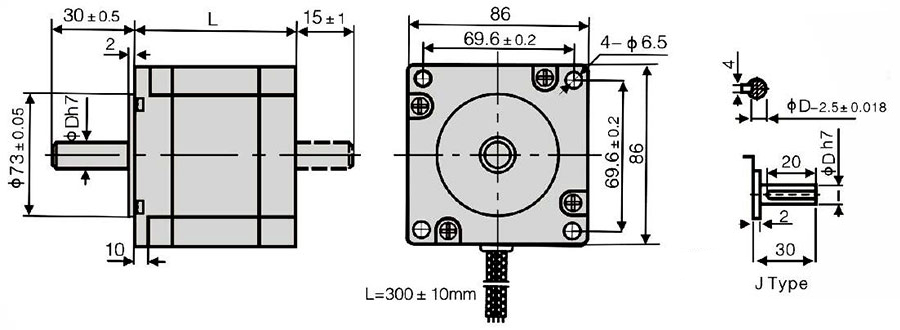

Dimensions (Unit: mm)

L=97mm

Wiring Diagram

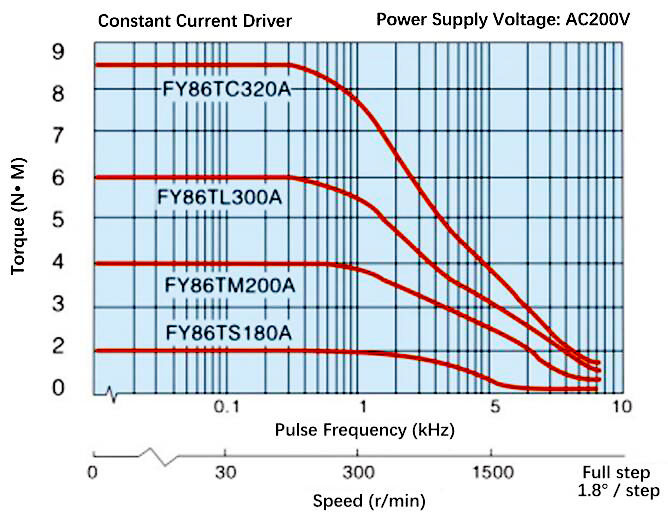

Speed-Torque Curve Diagram

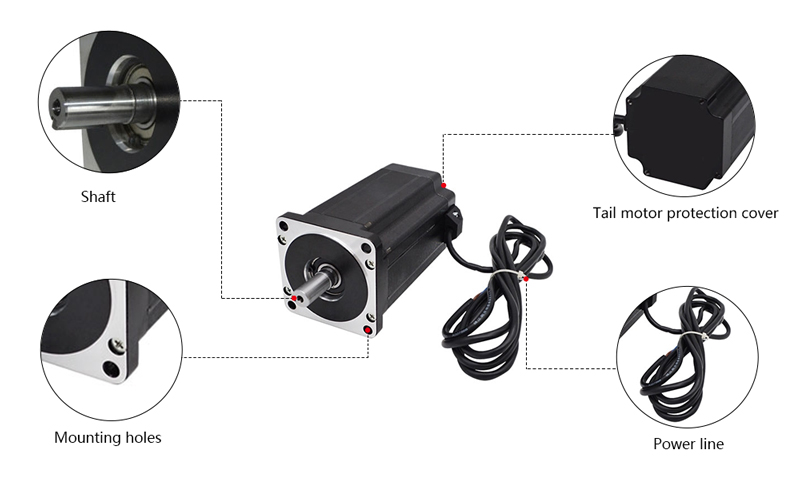

Details

Tips: Operating characteristics of stepper motor

The Nema 34 stepper motor is an open-loop hybrid control motor that converts the electrical pulse signal into an angular displacement or linear displacement from a functional point of view.

In the case of non-overload, the bipolar stepper motor's speed and stop position only depend on the frequency and pulse number of the pulse signal, and will not be affected by load changes like many other motors. When running, the stepper driver receives a pulse signal, and then drives the motor to rotate a fixed angle in the set direction.

The rotation angle of the stepper motor is the step angle mentioned in the parameter, and its rotation is run step by step at a fixed angle. Because of this operating mode, the motor can control the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning.

Stepper motor can also control the speed and acceleration of the motor rotation by controlling the pulse frequency, and use this method to adjust the speed of the motor. The motor cannot directly achieve high-speed operation, it needs an acceleration process, and it takes a certain amount of time to reach a higher operating speed.
