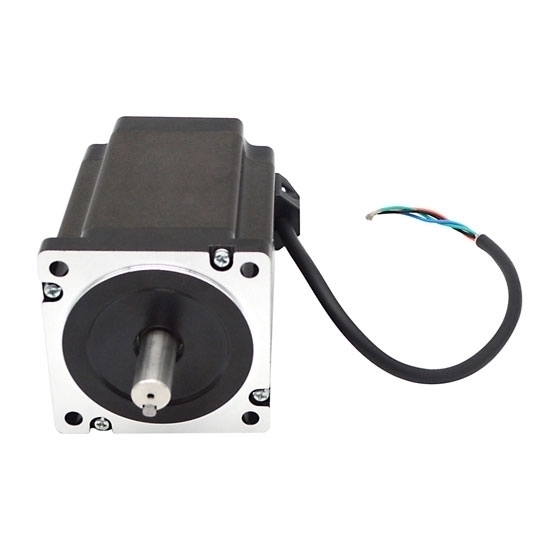

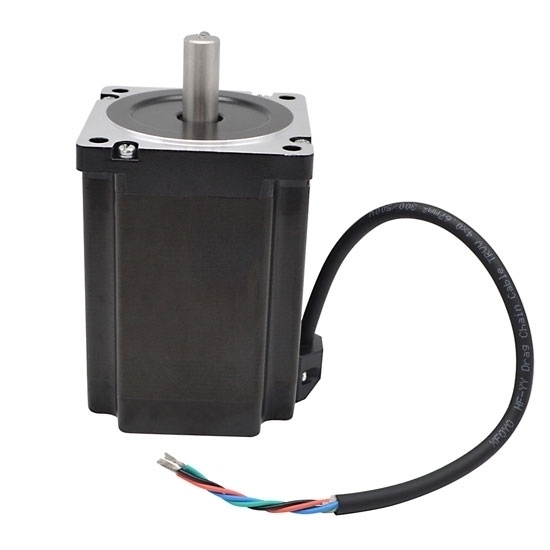

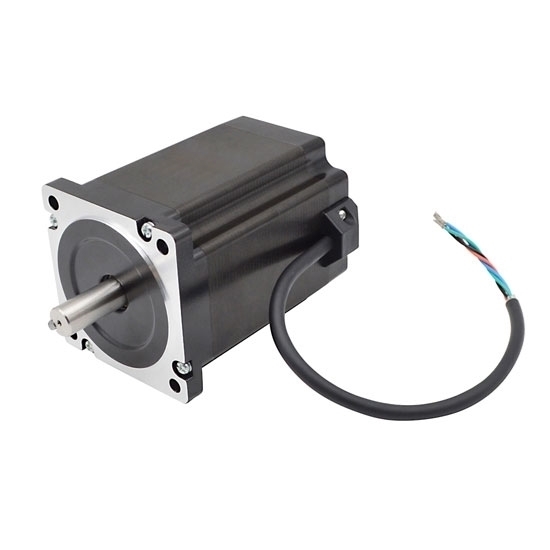

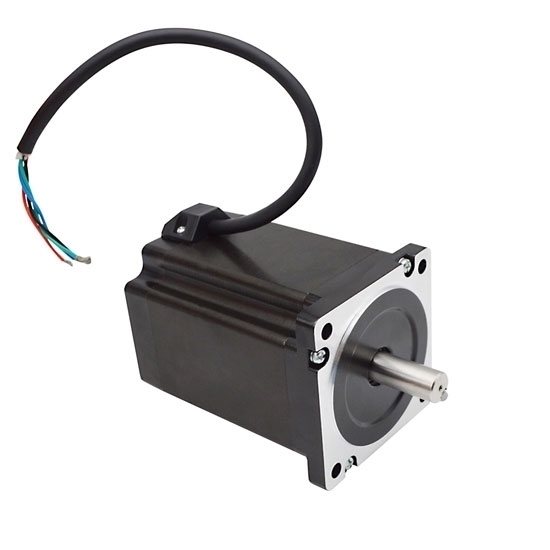

Nema 34 Stepper Motor, 2 Phase, 5A, 12N·m

Nema 34 Stepper Motor, 2 Phase, 5A, 12N·m

2 phase 4 wire hybrid stepper motor comes with holding torque up to 12N·m, 1.8 degree step angle, draws high current of up to 5A. This Nema 34 86 x 86mm bipolar stepper motor is high torque motor for CNC machine, 3D printer and robot arm.

SKU: CCHN-STEP-34C500

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Nema 34 hybrid stepper motor has 4 wire and can be used in bipolar mode. It with high holding torque of 12 N·m is suitable for the biggest projects, such as CNC application, robotic, 3D technology and so on.

Physical Specification

Model Number: CCHN-FY86EC500A
Matched the Driver Model: CCHN-FYDM808T
Flanged Size: 86 x 86mm (Nema 34)
Motor Length: 150mm
Shaft Diameter: 14mm/ 12.7mm (Custom production time: 20-25 days)
Number of Leads: 4 wire
Weight: 5.2kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 5A
Holding Torque: 1200 N·cm (12 N·m, 1700 Oz.in)
Phase Resistance: 1.2Ω
Phase Inductance: 6mH
Rotor Inertia: 6200g·cm²

Dimensions (Unit: mm)

L=150mm

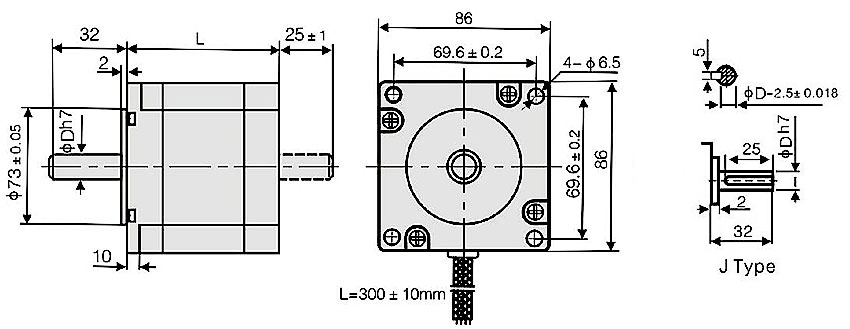

Dimension of Nema 34 2 Phase Stepper Motor

Wiring Diagram

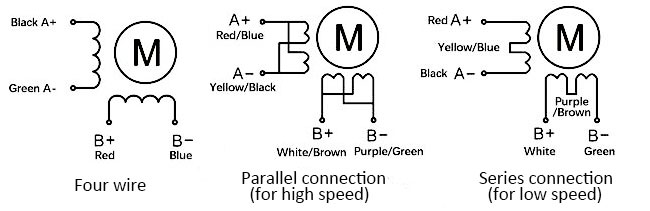

Wiring Diagram of Nema 34 2 Phase Stepper Motor

Speed-Torque Curve Diagram

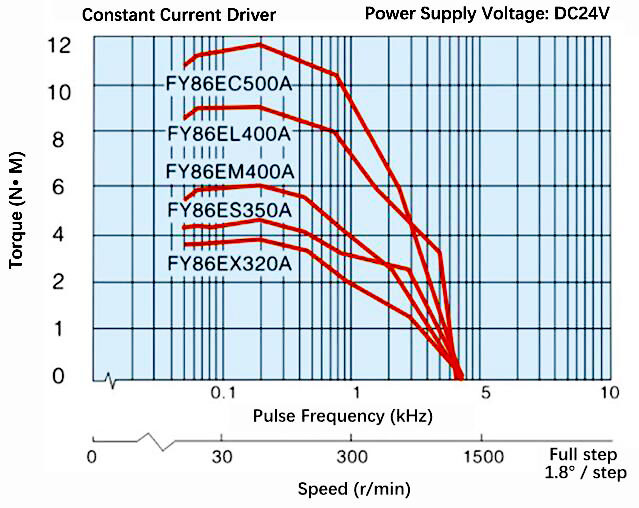

Speed Torque Curve Diagram of Nema 34 2 Phase Hybrid Stepper Motor

Details

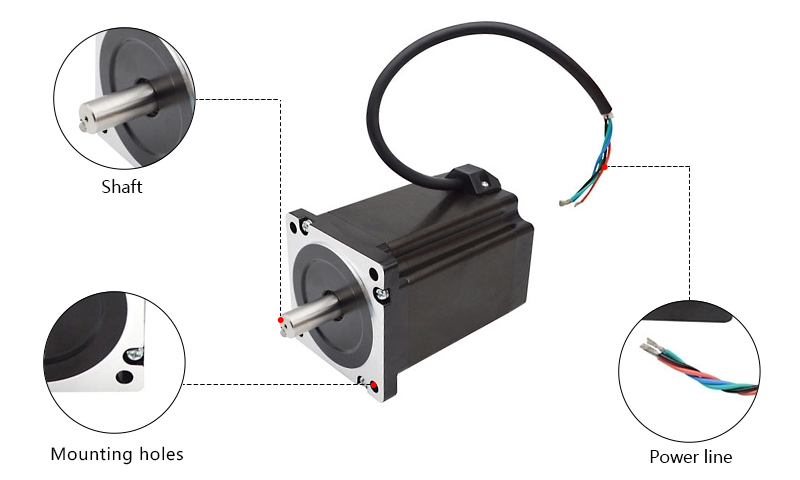

Nema 34 Stepper Motor 4.5N·m-12N·m Details

Tips: The wiring method of stepper motor

There are many ways to connect permanent magnet stepper motors, mainly four wire lead and six wire lead. The difference between the two mainly lies in the flexibility of connection with the driver. 2 phase 3 wire motors can only use bipolar drivers, 2 phase 6 wire motors can use either bipolar drivers or unipolar drivers.
