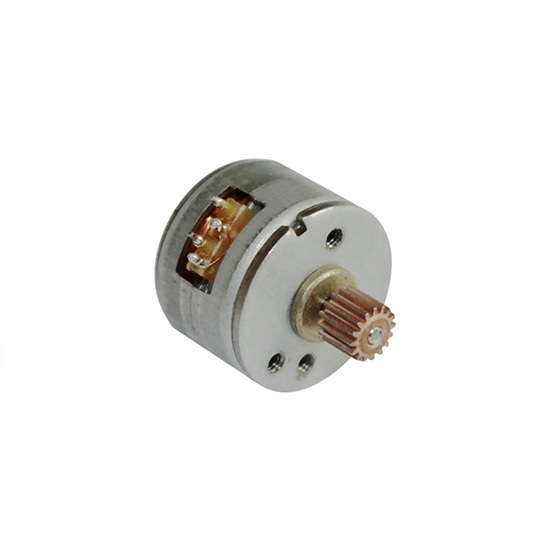

Nema 6 Micro Stepper Motor, 3V/ 5V, 2 Phase, Bipolar

Nema 6 Micro Stepper Motor, 3V/ 5V, 2 Phase, Bipolar

Low price Nema 6 micro stepper motor for sale, with metal gear. Rated voltage 3V or 5V, current 0.16~0.5A for selection, stepping angle 18 degree, resistance 10Ω/15Ω, holding torque 1.4~2.6 mN-m. 2-phase miniature stepper motor, bipolar drive.

SKU: CCHN-STEP-MG6352

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Micro stepper motor has size of Nema 6 (Ф15mm). Optional voltage DC 3V/5V, current 0.16~0.5Amp, resistance 10/15Ω, stepping angle 18°. 2 phase miniature bipolar stepper motor with metal gear, suitable for medical equipment, printer, scanner, automotive meter, gas range, sewing machine, security systems, optical fiber welding equipment, etc.

Specification Datasheet

Model	CCHN-SM1519	CCHN-SM1566	CCHN-SM1568
Rated Voltage	3V	5V	5V
Rated Current	0.2A	0.16A	0.5A
Resistance	15Ω	15Ω	10Ω
Phase	2 Phase	2 Phase	2 Phase
Stepping Angle	18°	18°	18
Excitation Method	2	2	2
Pull-in Torque	0.5 mN-m (200 pps)	1.0 mN-m (500 pps)	1.3 mN-m (300 pps)
Pull-out Torque	0.6 mN-m (200 pps)	1.4 mN-m (500 pps)	1.6 mN-m (300 pps)
Holding Torque	1.4 mN-m (0 pps)	2.3 mN-m (0 pps)	2.6 mN-m (0 pps)
Max. Continuous Response Frequency	560 pps	1100 pps	1500 pps
Max. Starting Frequency	500 pps	900 pps	1000 pps
Drive Mode	Bipolar Drive
Ambient Temperature	0℃~55℃
Insulation Resistance	500VDC 100MΩ min
Insulation Grade	E

Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

3V 0.2A Micro Stepper Motor (CCHN-SM1519)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Red	ON	-	-	ON	A
2	Blue	-	-	ON	ON	B
3	Yellow	-	ON	ON	-	A
4	Black	ON	ON	-	-	B

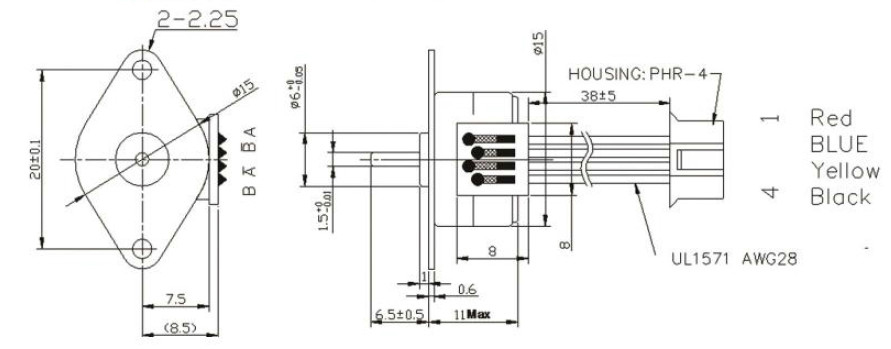

Dimensions of Nema 6 Micro Geared Stepper Motor, 3V, 0.2A, 2 Phase

5V 0.16A Micro Stepper Motor (CCHN-SM1566)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Brown	-	ON	ON	-	A
2	Black	ON	-	-	ON	A
3	White	-	-	ON	ON	B
4	Red	ON	ON	-	-	B

5V 0.5A Micro Stepper Motor (CCHN-SM1568)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	-	ON	-	-	ON	A
2	-	-	-	ON	ON	B
3	-	-	ON	ON	-	A
4	-	ON	ON	-	-	B

Dimensions of Nema 6 Micro Geared Stepper Motor, 5V, 0.5A, 2 Phase

Details

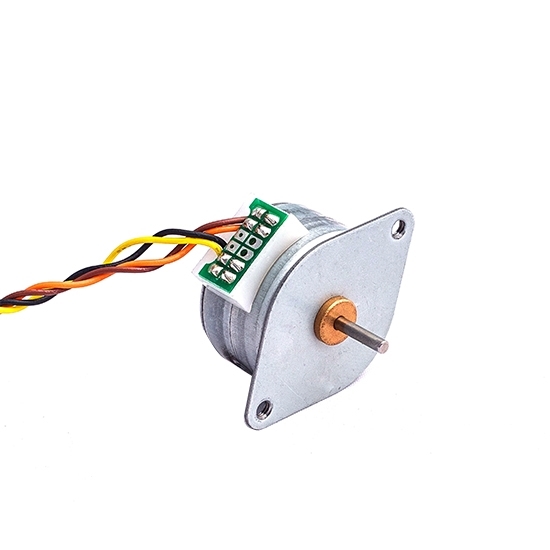

Nema 6 Micro Stepper Motor Details

Tips: How to install Nema 6 micro stepper correctly?

Wire distribution of the Nema 6 micro stepper needs to be straightened and not bent, otherwise it will cause problems such as poor electrical conductivity inside the motor.
In the process of installing Nema 6 micro stepper, pay attention to protect the DC motor from impact. When installing structural parts on the output shaft of DC motor, it is not allowed to directly hit or press on the output shaft.
Do not forcefully rotate the gear from the shaft end of Nema 6 micro stepper, otherwise the gear will be damaged. When fixing the transmission structure with adhesive on the reducer output shaft, the bearing of reducer cannot be adhered.
