Nema 34 Stepper Motor, 3A, 1.2 degree, 3 phase 6 wires

Nema 34 Stepper motor, 5.4Nm holding torque, 3A phase curent, 1.2° step angle, manufacturer direct sale.

Specification

Dimensions

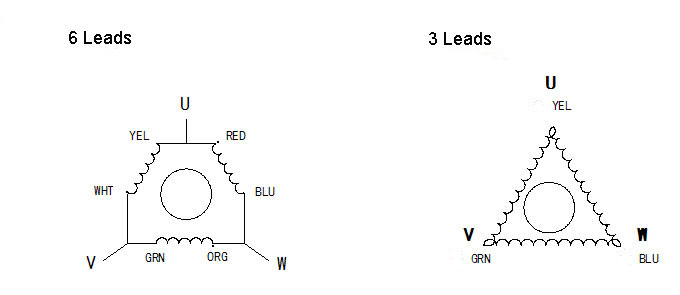

Motor Connection

Details

Tips: Selection of the stepper motor: how to select stepper motor driver?

1. Constant voltage drive is generally only applicable for the rotation at the velocity lower than 150rpm and under the circumstance of large batch and low cost. What is further common is constant current drive.
2. Besides good high velocity holding torque, the rotational smoothness of the motor with constant current drive can be improved through subdivision of driver. Firstly, it is necessary to match drive voltage and current and subdivision number. If the working speed is not low, the subdivision number is generally between 1/8~1/64. Partial torque of subdivision part will be lost. Subdivision is mainly for rotational smoothness, the uniformity at each step after subdivision cannot be guaranteed.
3. According to the requirement of structural arrangement, integrated stepper motor connecting the stepper motor with the driver can be selected.
4. As for the superior driver, besides good product quality coherence and stability, better performance in smoothness of rotation at low velocity and torque of rotation at high velocity should also be made.
5. As for high voltage driver, under the circumstance that input power voltage stability is not high enough, the strong and weak current of the drive should completely separate.
6. To make full use of stepper motor, certain margin should be left for the current of the driver under the circumstance that the torque margin of the stepper motor is very little.
