Nema 17 Stepper Motor Linear Actuator, 2 phase, 2.8V, 1.68A

High Precision 2 phase 4 wires bipolar stepper motor linear actuator comes in Nema 17 compact size, is available in non-captive shaft and external shaft style options. It offers 1.68 amp rated current and 2.8 volt rated voltage, special nut design secure long life operation.

SKU: CCHN-STEP-L28168

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

2.8V, 1.68A Nema 17 Stepper Motor Linear Actuator is a high performance mechanical device, which combines 2-phase Nema 17 stepper motor and lead screw to eliminate coupling. Excellent quality in lower cost, directly sale by manufacturer.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	42H47-1684AST	42H47-1684GTS
Weight	4 kg
Length	47 mm
Phase	2 phase
Step Angle	1.8°
Rated Voltage	2.8 V
Rated Current	1.68 A
Resistance	1.65 Ω
Holding Torque	62 Oz-in
Number of Leads	4
Rotor Inertia	68 g-cm²

Select Leadscrew

Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
Note: Screw of 8mm diameter is made of copper.

Stepper Motor Linear Actuator Dimension (Unit=mm)

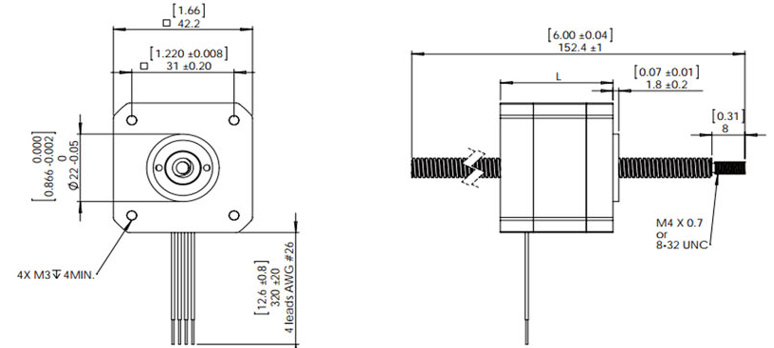

1. Non-captive shaft style

L=47mm

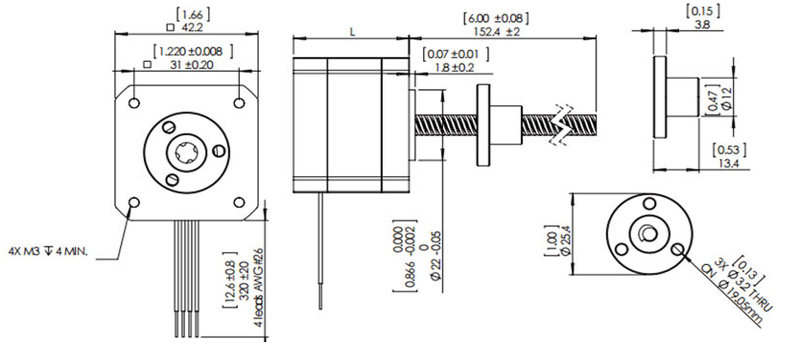

2. External shaft style

nema 17 external shaft stepper motor linear actuator dimension

L=47mm

Details

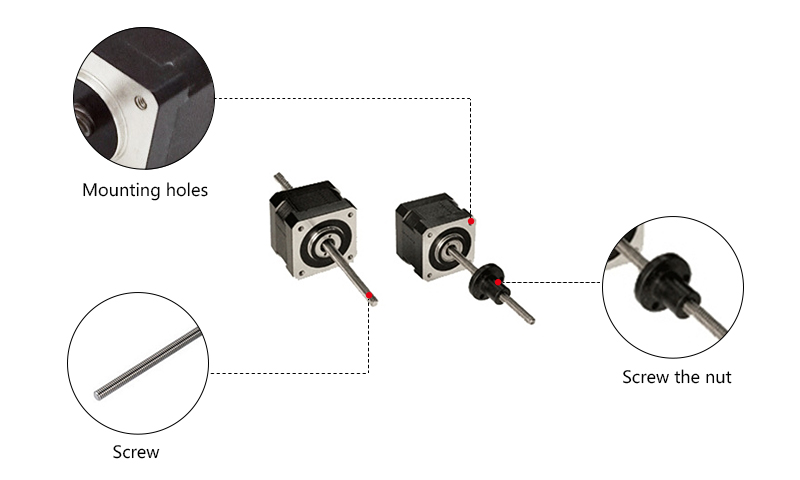

Nema 17 Stepper Motor Linear Actuator Details

Tips: Advantages of CCHN stepper motor linear actuator

It has all the advantages of the traditional DC motor and also cancels the structure of carbon brush and slip ring at the same time.
It can reduce low speed and high power operation and the load of reducer direct drive.
It has small volume, light weight and great power.
It has excellent torque characteristic, good torque performance at middle and low speed, large pull-in torque and small starting current.
It has infinite speed variation, wide range of speed regulation and strong overload capacity.
It has soft start, soft stop, good brake characteristic, which can save the original mechanical brake or electromagnetic brake device.
The efficiency is high, the motor itself has no excitation loss and carbon brush loss, which eliminates the multistage reduction consumption, and the comprehensive electricity saving rate can reach 20%~60%.
It has high reliability, good stability, strong adaptability, simple maintenance.
It is resistant to vibration and has low noise, small vibration, smooth operation, long service life.
It has no radio interference, no spark, especially suitable for explosive sites.
