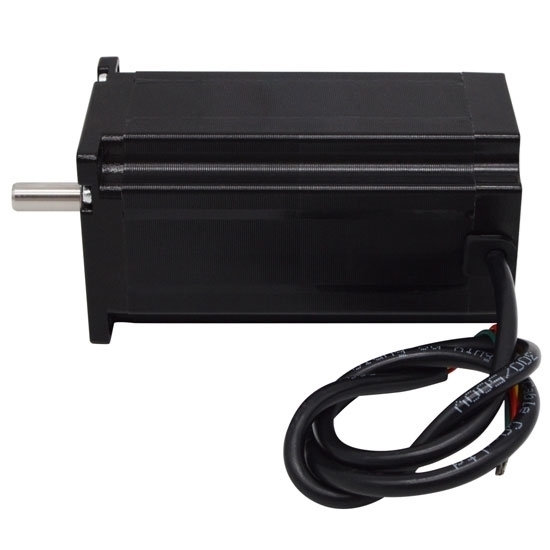

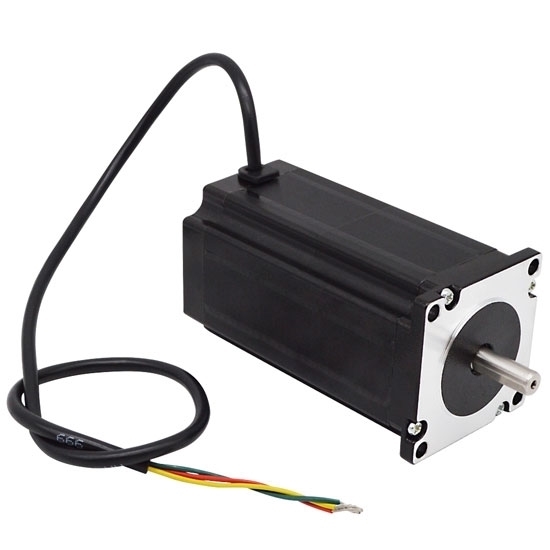

Nema 23 Stepper Motor, 3 Phase, 5.8A, 2.5N·m

Nema 23 Stepper Motor, 3 Phase, 5.8A, 2.5N·m

High torque CNC Nema 23 permanent magnet stepper motor online sale, 5.8A, holding torque 2.5N·m, step angle 1.2 degree, 3 phase 3 lead wires, 106mm motor length and 8mm shaft, working at -20℃~+50℃, low price, high precision, easy assembly and lightweight.

SKU: CCHN-STEP-23C580

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

3 phase bipolar stepper motor with 3 lead wires is convenient to adjust the speed, long service life and low maintenance cost. This hybrid stepper motor with 8mm shaft, is used in 3D printer, CNC machine, drawing equipment, sewing machine and robot arm.

Physical Specification

Model Number: CCHN-FY56TC580A
Flanged Size: 57 x 57mm (Nema 23)
Motor Length: 106mm
Shaft Diameter: 8mm
Number of Leads: 3 wire
Weight: 1.8kg

Electrical Specification

Motor Type: Bipolar Stepper
Step Angle: 1.8°
Rated Current: 5.8A
Holding Torque: 2.5 N·m (250 N·cm, 354 Oz.in)
Phase Resistance: 0.57Ω
Phase Inductance: 1.2mH
Rotor Inertia: 720g·cm²

Dimensions (Unit: mm)

L=106mm

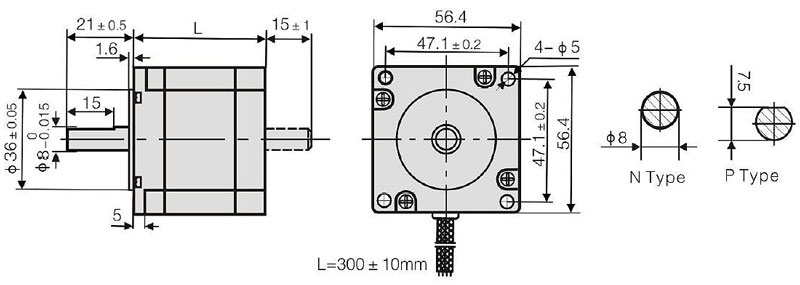

Dimensions of Nema 23 3 Phase Hybrid Stepper Motor

Wiring Diagram

Wiring Diagram of Nema 23 3 Phase Stepper Motor

Speed-Torque Curve Diagram

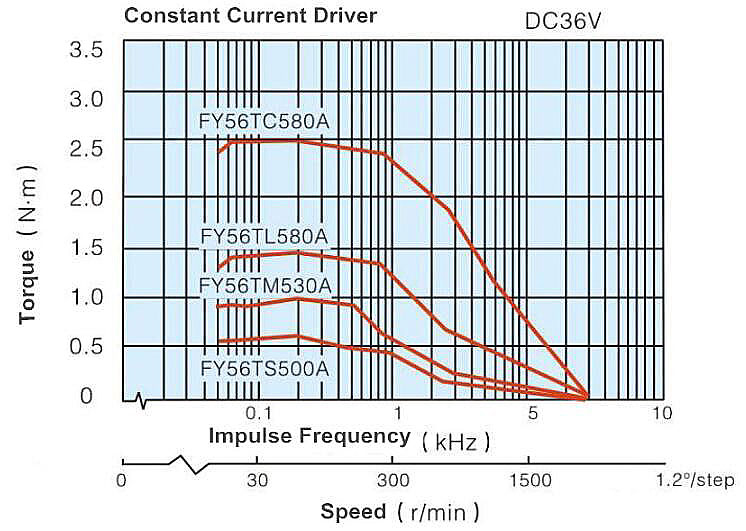

Speed Torque Curve Diagram of Nema 23 3 Phase Stepper Motor

Details

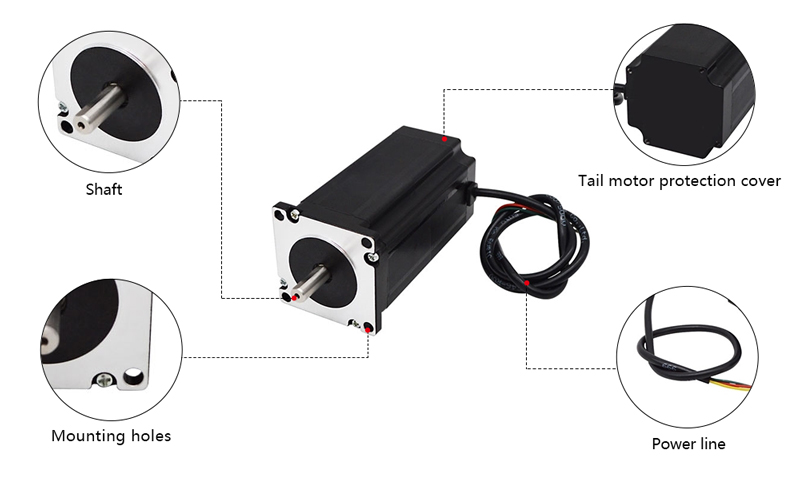

Nema 23 Stepper Motor 3Phase 0.9N·m-2.5N·m Details

Tips: Nema 23 stepper motor troubleshooting

Faults	Reasons	Solutions
Loss step	The signal is interfered. The shielding wire is not connected or not connected properly. Incorrect subdivision settings. The current is too small.	Eliminate interference. Ensure that the shielded wire is reliably grounded. Adjust the subdivision settings correctly. Increase the current.
Motor stalled	The acceleration time is too short. Motor torque is too small. Low electro-hydraulic or low current.	Increase acceleration time. Choose a motor with a large torque. Properly increase the voltage or current.
Alarm heat indicator light is on	The voltage is too high or too low. The driver was damaged.	Check the power supply and adjust the voltage appropriately. Replace the damaged driver.
