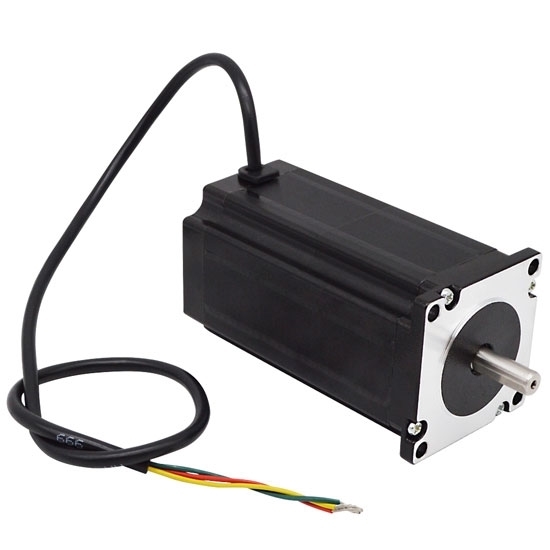

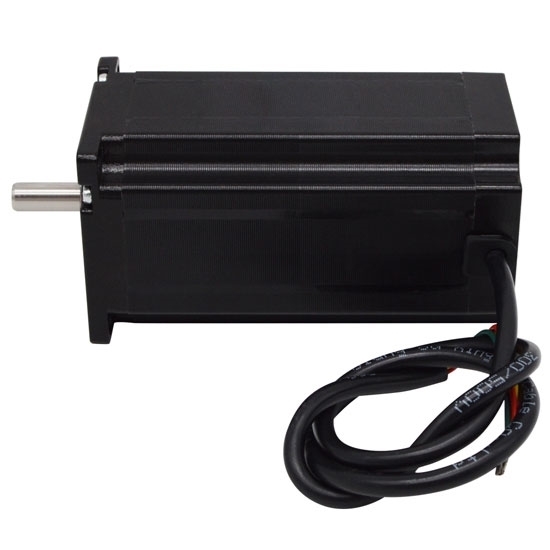

Nema 23 Stepper Motor, 3 Phase, 5.8A, 1.5N·m

3 phase bipolar stepper motor with 3 lead wires is convenient to adjust the speed, long service life and low maintenance cost. This hybrid stepper motor with 8mm shaft, is used in CNC machine, drawing equipment and sewing machine, robot arm and 3D printer.

Physical Specification

• Model Number: CCHN-FY56TL580A
• Flanged Size: 57 x 57mm (Nema 23)
• Motor Length: 76mm
• Shaft Diameter: 8mm
• Number of Leads: 3 wire
• Weight: 1.0kg

Electrical Specification

• Motor Type: Bipolar Stepper
• Step Angle: 1.8°
• Rated Current: 5.8A
• Holding Torque: 1.5 N·m (150 N·cm, 212.5 Oz.in)
• Phase Resistance: 0.55Ω
• Phase Inductance: 1.7mH
• Rotor Inertia: 480g·cm²

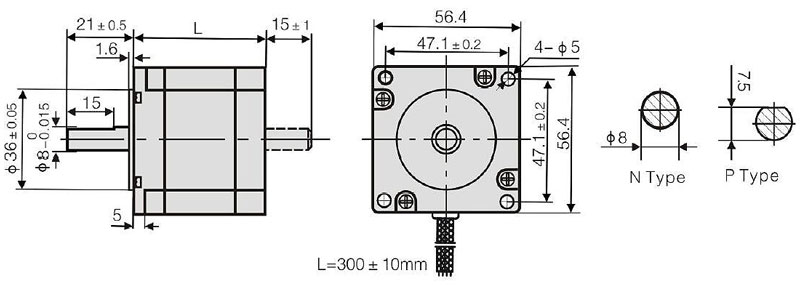

Dimensions (Unit: mm)

L=76mm

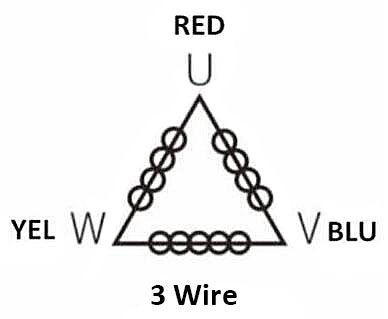

Wiring Diagram

Speed-Torque Curve Diagram

Details

Tips: The reason why stepper motor does not run after power on

Stepper motor is a kind of induction motor. Its working principle is to use electronic circuit to change direct current into time-sharing power supply. And multi-phase sequential control current. Use this kind of current to supply power to the motor to work normally. A stepper motor driver is required for power supply and multi-phase. There may be three reasons why the motor does not run after power on:

• Overload and stall.
• The motor is offline.
• The control system has a pulse signal to the stepper motor driver or there is a problem with the wiring.
