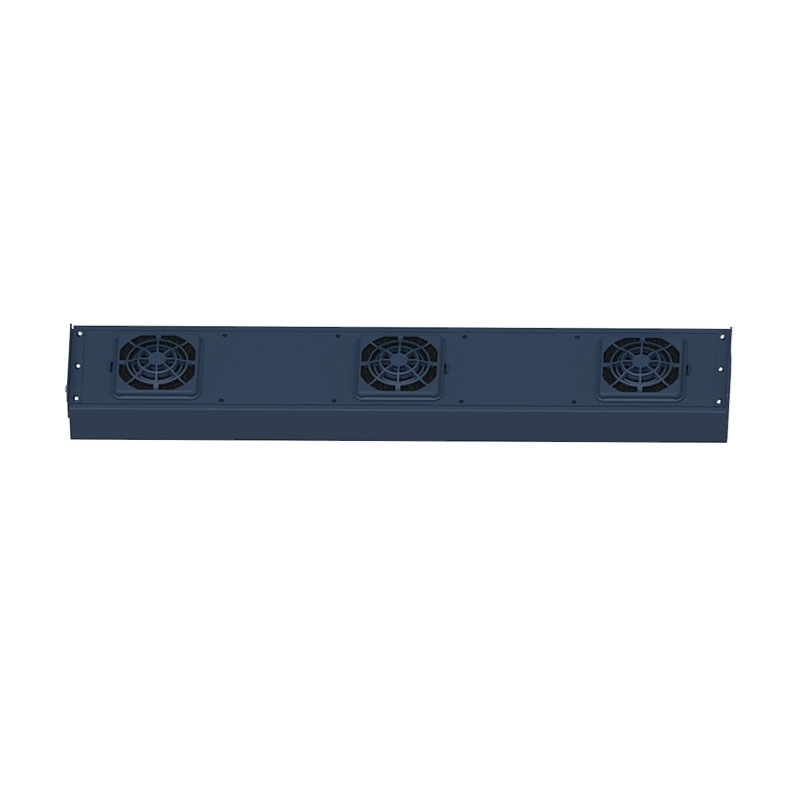

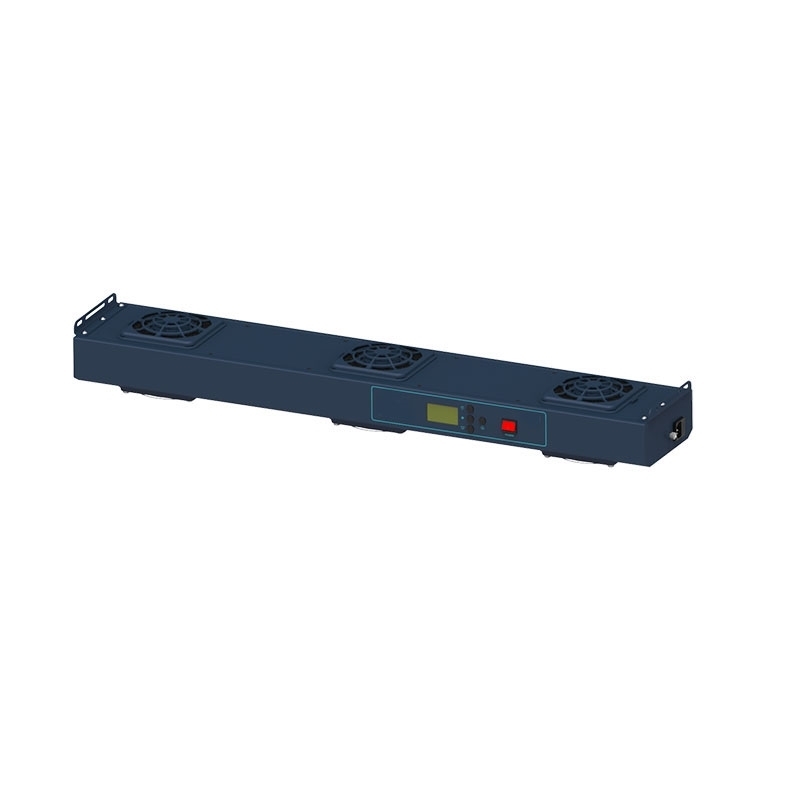

50W Static Eliminator, AC 230V / 50Hz

Static eliminator with 50W, ion balance of 0±5V. Input voltage is AC 110-230V / 50Hz. The maximum air volume is 95 CFM and can be adjusted. It less than 1s static elimination time. And it with three air outlets.

SKU: CCHN-SE-50W

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

50W static eliminator with 100 × 90cm² capacity, operating temp with -5~ 45℃. External dimension of 1045 (L) × 210 (W) ×180 (H) mm. The DC ion fan has several advantages: high power efficiency and stable voltage balance.

Features:

Built-in circuit switch, cut off the power immediately after removing the protective cover to protect mai-ntenance personnel from high-voltage electric shocks.
The launch needle is designed as a plug-in type that is easy to replace.The launchrame can be easily replaced without replacing the launch needle, and it also saves maintenance costs
Automatic cleaning device, convenient for ion needle maintenance.

Specification:

Model	CCHN-BK403
Input voltage	AC 230V / 50Hz
power	50W
Air volume	95CFM
Ion balance	0±5V
Static elimination time	≤ 1s
Cocerage	100×90cm²
Operating temperature	-5~45℃
External Dimension	1045 (L) × 210 (W) ×180 (H) mm
Weight	6.4kg

Static Test Result:

Decay test conditions	Operating voltage: AC230V Testing valtage: 1kV-100V Temperature: 25>℃
Distance	30cm	60cm	90cm
Decay time	1s	2.5s	5s
Ion balancing	0 ± 5	0 ± 4	0 ± 3
Wind speed ( level 1-3 )	5	5	5

Note: The test results will vary due to the humidity and cleanliness of the test environment time to eliminate static electricity ( without dust-proof net ).

Tips: What are 50W static eliminator application scenarios?

50W static eliminator is used to eliminate the static electricity generated by human body, instrument equipment, sensitive electronic components, etc.
It is designed and manufactured for effective electrostatic elimination and electrostatic protection
And CCHN 50W static eliminator is also suitable for other electrostatic protection places such as anti-static dust-free workshop, electronic warehouse, laboratory and so on.
