Sound Level Meter, 45 to 160 dB

Professional class 1 sound level meter is an instrument used to measure noise in the range of 45 dB to 160 dB, digital display 128×64 LED dot matrix. Its user-friendly interface allows for quick and easy configuration, with adjustable settings to suit different applications.

SKU: CCHN-SLM-5661-1C

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Low cost sound level meter for sale, it can detect 45 dB(A)～160 dB(A) noise. Sound meter has a wide range of applications in the fields of architectural design, transportation, environmental protection, and medical treatment.

Digital Sound Level Meter Features

Class 1 sound level meter adopts digital signal processing, with good stability and high reliability
The noise decibel reader adopts a modular design, selects on demand, and is cost-effective
CCHN professional decibel meter has a large measuring range, simple operation and wide application
RS-232 digital output interface, remote measurement is possible

Specification

Model	CCHN-SLM-AWA-5661-1C
Microphone Model	AWA14435
Measuring Range	45 dB(A)～160 dB(A)
Spontaneous Noise	<38 dB(A)
Frequency Range	10 Hz～20 kHz
Frequency Weighting	Parallel (simultaneous) A, C, Z for each channel
Time Weighting	Parallel (simultaneous) F, S, I, Peak for each channel
Monitor	128×64 LED dot matrix

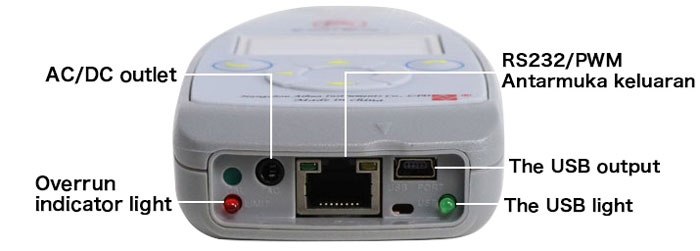

Output Interface	AC, DC, RS232, PWM
Points Function	No
Main Measurement Index	Lp, Lmax, Lpeak
Overrun Indication	The limit can be set
Data Storage Function	No
Recording Function	No
Statistical Analysis Function	No
Power Supply	4 (7#) alkaline batteries, can work continuously for more than 6 hours
Dimension	190mm x 68mm x 27mm
Weight	1.5 kg
Operating Temperature	-10 ℃～50 ℃
Warranty	12 Months
Dimension	220mm x 68mm x 27mm

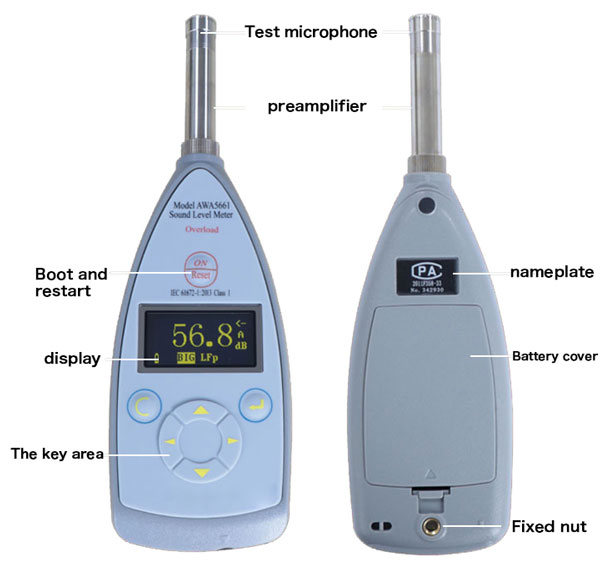

Compact Sound Level Meter Panel Display

Handheld Sound Level Meter Applications

Tips: The main application areas of sound level meters

The sound level meter is a basic instrument for measuring noise. It is an electronic instrument. The sound level meter is generally composed of a condenser microphone, a preamplifier, an attenuator, an amplifier, a frequency weighting network, and an effective value indicating meter. According to the sensitivity of sound level meters, they can be divided into two categories. One is ordinary sound level meters, the other is precision sound level meters. According to the purpose of sound level meters, they can also be divided into two categories: one is used to measure stability. State noise, one type is used to measure unstable noise and impulse noise.

The digital detection technology adopted by the sound level meter greatly improves the stability and reliability of the instrument. The sound level meter has the advantages of simple operation and convenient use; it has the characteristics of large dynamic range, large-screen LCD digital display, automatic measurement and storage of various data, etc.

The sound level meter can be widely used for industrial noise measurement and environmental noise measurement of various machines, vehicles, ships, electrical appliances, etc. It is suitable for factories and enterprises, architectural design, environmental protection, labor and health, transportation, teaching, medical and health, scientific research and other departments.
