Solenoid Valve, 2 Way, Normally Closed, 24V/220V for steam water air

Economical price general purpose solenoid valve, designed for steam, water and air, two-way two-position (2/2 way), normally closed (N/C), direct-acting type, brass body and EPDM seal, able to handle fluid at high temperature up to 180℃, selectable voltage DC 24 Volt or AC 220 Volt, port sizes available for G1/2, G3/4, G1, G1¼, G1½ and G2 inches.

SKU: CCHN-VALVE-2L

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This solenoid valve cannot be used for drinking water.

2-port 2-position solenoid valves, direct-acting mode, are used to release and shut off the media of air, water and steam with brass body and EPDM seal. The general purpose solenoid valve is normally closed (NC), i.e., the valve is switched on when the coil is energized, and switched off when the coil is de-energized. G1/2" to G2" port sizes are for your selections. High reliability, long lifespan and favorable price.

Specification

Model	2L170-15	2L200-20	2L250-25	2L350-35	2L400-40	2L500-50
Valve Type	2 Way 2 Position, Normally Closed
Media	Steam, Air, Water
Operation Mode	Internal Pilot Type
Port Diameter (mm)	17	20	25	35	40	50
Flow Rate (Cv)	12.6	17.46	27.27	53.46	69.83	69.83
Port Size	G1/2"	G3/4"	G1"	G1¼"	G1½"	G2"
Operating Pressure	0.1~0.8MPa (15~120psi)
Max. Pressure Resistance	0.9MPa
Voltage (Optional)	24V DC, 220V AC
Voltage Tolerance	±10%
Operating Temperature	-5~+180℃ (23~356℉)
Body Material	Brass
Seal Material	EPDM

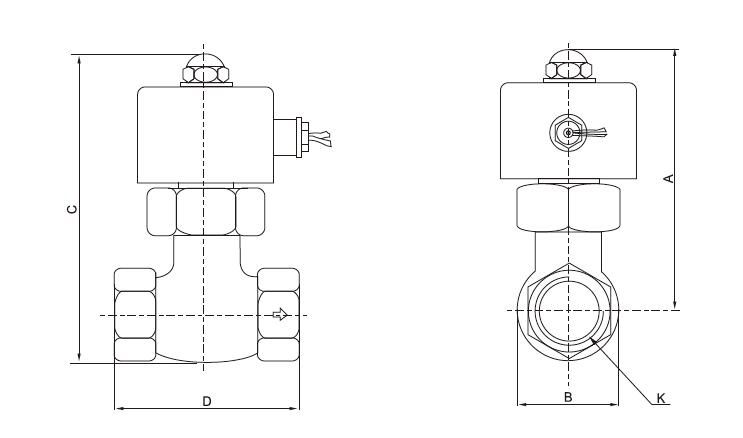

Dimensions

Model	Dimension
Model	A (mm)	B (mm)	C (mm)	D (mm)	K (inch)
2L170-15	126	42	146	82	G1/2
2L200-20	125	42	147	93	G3/4
2L250-25	134	48	156	94	G1
2L350-35	147	74	184	112	G1¼
2L400-40	147	74	184	112	G1½
2L500-50	170	90	215	170	G2

Two-way Solenoid Valve Symbol
2-way solenoid valve symbol
Tips: Working principle of steam solenoid valve

The steam solenoid valve can be divided into Normally Closed and Normally Open solenoid valve according to the on-off state. The working principle of normally closed steam solenoid valve is as follows.

When the solenoid is energized, the armature drive the valve plug under the effect of electromagnetic force and the medium on the main valve flow away, thus reducing the pressure on the main valve. When the pressure reduces to a certain value, the armature makes the main valve opening under the pressure difference. The medium can pass through. When the solenoid is de-energized, the electromagnetic force disappears and the armature also reset. The solenoid valve is closed and the medium can’t flow. The CCHN solenoid valves for steam is Normally Closed, suitable for running at the temperature from -5℃ to 180℃. On the contrary, the Normally Open solenoid valve is closed and stopping the flow of the medium when it is energized, and it is open when it is de-energized.
