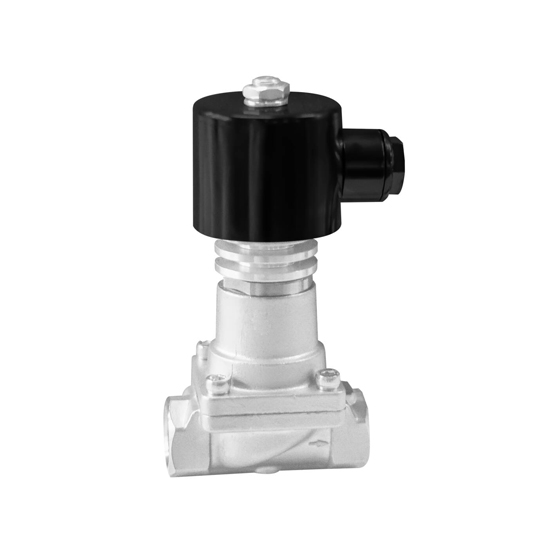

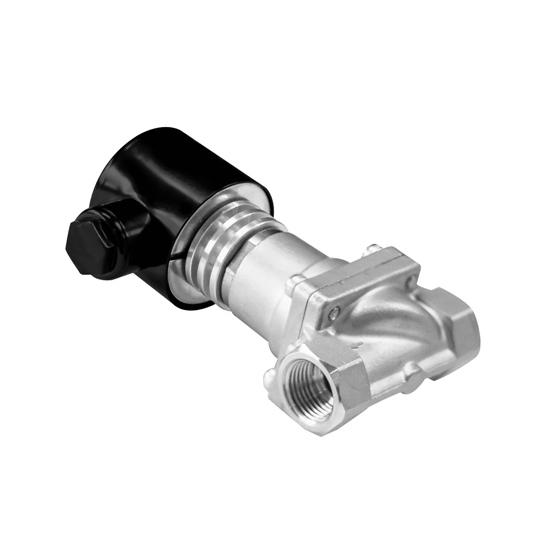

Steam Solenoid Valve, NPT, Stainless Steel, AC 110V/220V/240V

Steam Solenoid Valve, NPT, Stainless Steel, AC 110V/220V/240V

High-temperature steam solenoid valve is made of stainless-steel material and can be used for AC 110V, 220V, or 240V power supply. The steam solenoid valve offers a variety of NPT connection diameters (3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2") to meet different flow requirements, suitable for industrial steam systems and more.

SKU: CCHN-SSV-HK10SA

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High-temperature steam solenoid valve adopts a pilot piston structure, which has low power consumption characteristics and is particularly suitable for use in long-term operating pipeline systems. Its seals are designed specifically for steam environments and have a long service life, ensuring stable and reliable operation even under high temperature conditions.

Specification

Model		CCHN-HK10S-12	CCHN-HK10S-15	CCHN-HK10S-20	CCHN-HK10S-25	CCHN-HK10S-32	CCHN-HK10S-40	CCHN-HK10S-50
Port Size		3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)		12	15	20	25	32	40	50
Cv		4.5	4.5	9.3	12	24	29	48
Min Pressure		0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa	0.05MPa
Max Pressure (AC 28VA)		1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa
Max Pressure (DC 22W)		1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa	1.6MPa
Medium		Steam, hot water, oil, etc
Fluid Temperature		PEEK (-20℃~300℃), PTFE (-20℃~180℃)
Port Thread		NPT
Voltage		AC 110V/60Hz, 220V/50Hz, 240V/60Hz
Tolerance		±10%
Coils		Y21H, 28VA (AC), 22W (DC), IP65, 100%ED				Y51H, 70VA (AC), 50W (DC), IP65, 100%ED
Material	Body	Stainless steel
	Seal	PEEK, PTFE
	Armature tube	Stainless steel 304
	Moving iron core	Stainless steel 430F
	Static iron core	Stainless steel 430F
	Springs	Stainless steel 304
	Shading rings	Copper

Note: We can customize according to the customer's temperature requirements. If you need customized services, please contact us.

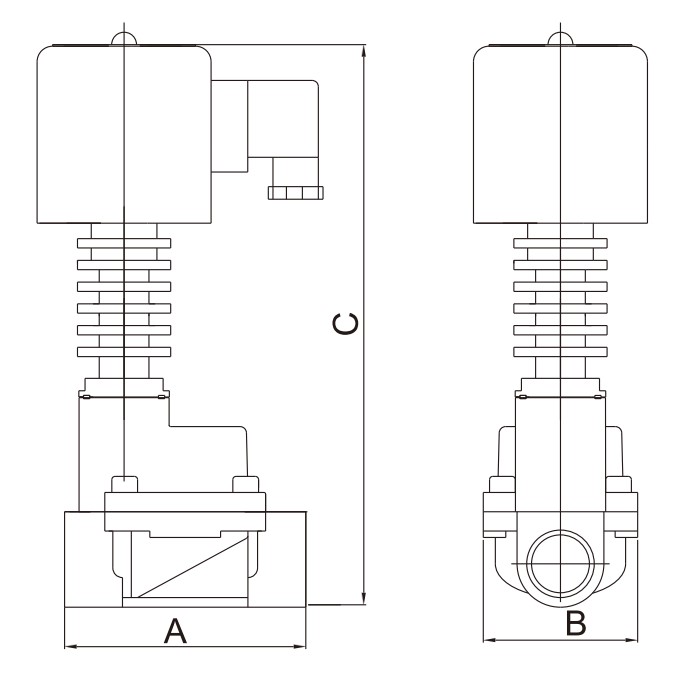

Dimension (mm)

Steam solenoid valve npt dimension

Size	A	B	C
HK10S-12	73	48	179
HK10S-15	73	48	176
HK10S-20	83	60	189.5
HK10S-25	100	72	189.5
HK10S-32	130	96	214
HK10S-40	130	96	214
HK10S-50	155	122	228

Tips: Applications of high temperature steam solenoid valve

High-temperature steam solenoid valves precisely regulate the flow and direction of steam, ensuring system stability and efficiency.
These solenoid valves are used in automated control systems to facilitate automatic switching operations, reducing manual intervention and increasing the automation level of production lines.
In steam systems, high-temperature solenoid valves effectively control pressure and temperature, preventing overpressure or overheating, thus protecting equipment and personnel.
By accurately controlling steam flow, high-temperature solenoid valves help optimize energy usage, reduce energy waste, and improve overall system efficiency.
Commonly used in boilers, heaters, and other steam heating equipment to regulate steam supply and achieve precise temperature and pressure control.
