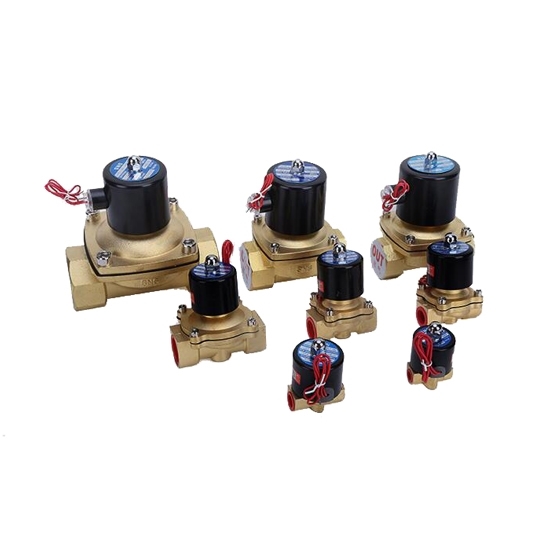

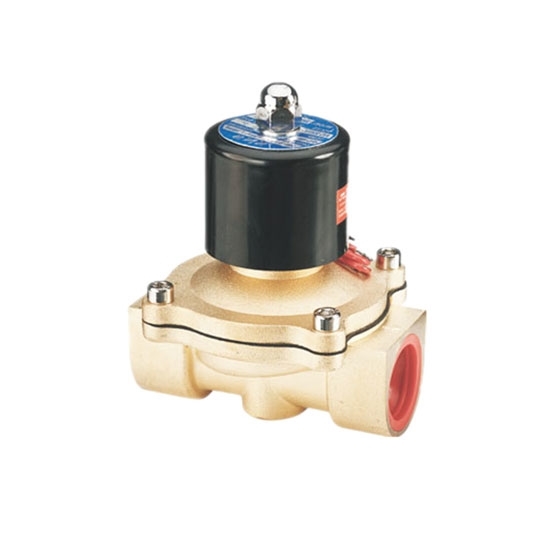

Low price 2/2-way normally closed solenoid valve, 2-way 2-position (N/C), has different port sizes 1/4", 3/8", 1/2", 3/4" to 2", and operating voltages DC 12V, DC 24V, AC 110V or AC 220V for options. Valve body is made of brass and sealing material is NBR, general-purpose solenoid valve for control the flow of air, water and oil with good medium compatibility, high reliability and long service life.

SKU: CCHN-VALVE-2W

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This solenoid valve cannot be used for drinking water.

Two-port (2/2-way) Normally Closed brass electric solenoid valves are general purpose for controlling flow of air, water and oil with DC 12 Volt, DC 24 Volt, AC 110 Volt, AC 220 Volt. The NC valve is open when the solenoid is energized and it is closed when de-energized. It is widely used in the areas like mechanical, textile, medical, food processing and so on.

Specification

Model	2W025-08	2W040-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
Valve Type	2 Way 2 Position, Normally Closed (N/C)
Media	Air, Water, Oil
Operation Mode	Direct-acting		Pilot-operated
Port Diameter (mm)	2.5	4.0	16	20	25	35	40	50
Flow Rate (Cv)	0.23	0.6	4.8	7.6	12	24	29	48
Port Size	G1/4" or 1/4" NPT	G3/8" or 3/8" NPT	G1/2" or 1/2" NPT	G3/4" or 3/4" NPT	G1" or 1" NPT	G1¼" or 1¼" NPT	G1½" or 1½" NPT	G2" or 2" NPT
Fluid Viscosity	Under 20 CS
Operating Pressure	Water, Oil: 0~0.5MPa (0~72PSI) Air: 0~0.7MPa (0~101PSI)
Max. Pressure Resistance	1.0MPa
Voltage(Optional)	12V DC, 24V DC, 110V AC, 220V AC
Voltage Tolerance	±10%
Operating Temperature	-5~+85℃ (23~185℉)
Body Material	Brass
Seal Material	NBR
Coil Power	15VA	20VA				50VA
Weight	0.4kg	0.6kg	0.9kg	0.9kg	1.3kg	2.5kg	2.8kg	4.6kg

Dimensions

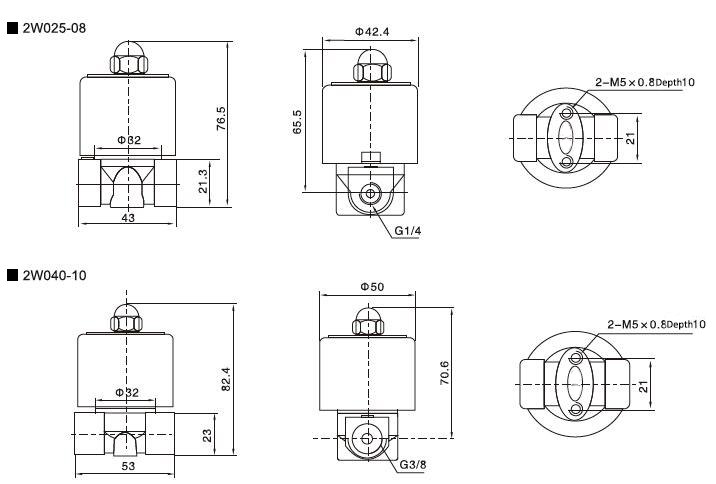

2-Way 1/4-3/8 inch Solenoid Valve Normally Cosed Dimensions

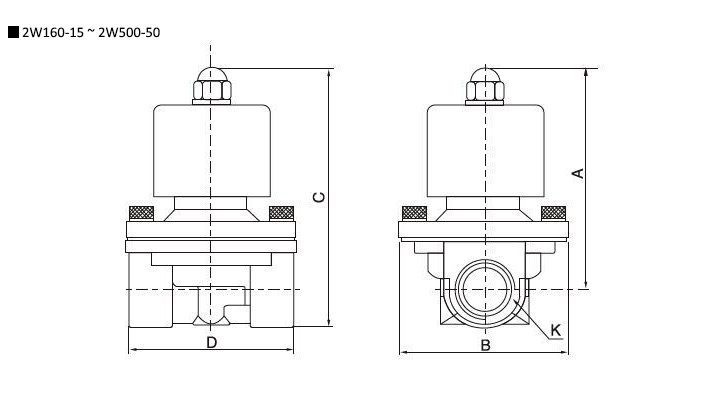

2-Way 1/2-2 inch Solenoid Valve Normally Cosed Dimensions

Model	Dimensions
Model	A (mm)	B (mm)	C (mm)	D (mm)	K (inch)
2W160-15	93	55.5	106.5	67.5	1/2
2W200-20	97	55.5	113	73	3/4
2W250-25	102.5	72.5	121	94	1
2W350-35	134.5	92.5	159	120	1¼
2W400-40	137.5	92.5	165	122	1½
2W500-50	151.5	123	188	170	2

Two-way Solenoid Valve Symbol
2-Way Solenoid Valve Symbol

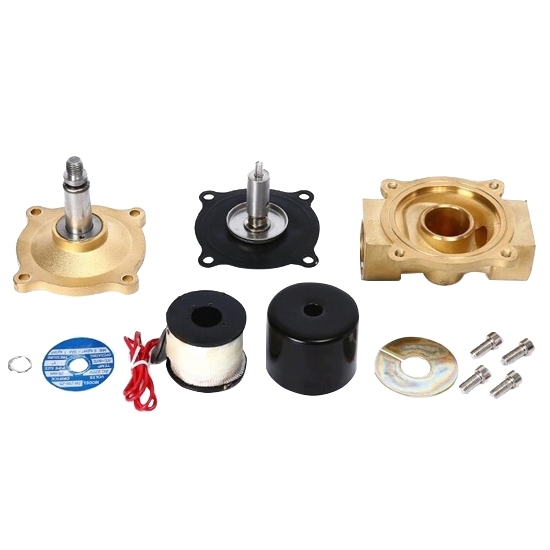

Features

1. High quality copper coil, corrosion resistance and good stability.
2. Solid and thick solenoid valve with smooth surface.
3. Diaphragm structure, general purpose for air and water, reliable operation.
4. Clear water flow direction mark, convenient to install.

Water Solenoid Valve Applications

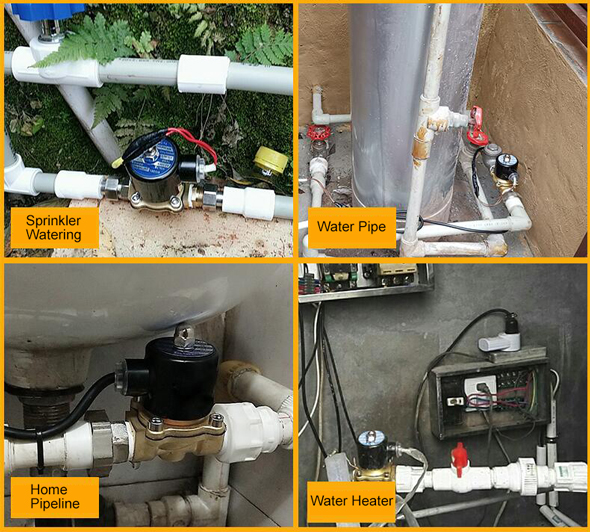

2 Way Water Solenoid Valve Applications

Tips: Direct-acting vs pilot-operated solenoid valve

The CCHN-2W series solenoid valves have two valve types, direct-acting with port size G1/4”, 3/8” and pilot-operated with port size G1/2, 3/4 inch etc. Are there any differences between them?

1. The direct-acting solenoid valve is usually used in small caliber and low pressure environment while the pilot-operated solenoid valve is suitable for large caliber and high pressure occasion. Generally, the flow rate of pilot-operated solenoid valves is larger than that of direct-acting solenoid valves.

2. For direct-acting solenoid valve, it will be able to start in zero pressure, without need of the minimum pressure of the medium. However, the pilot-operated solenoid valve needs a minimum pressure when starting, normally it is 0.05Mpa.

3. In terms of the start-up speed, the direct-acting solenoid valve is faster compared with the pilot-operated one.

4. The power consumption of direct-acting solenoid valve is usually ranging from 5W to 20W. But the pilot-operated solenoid valve has lower power consumption.
