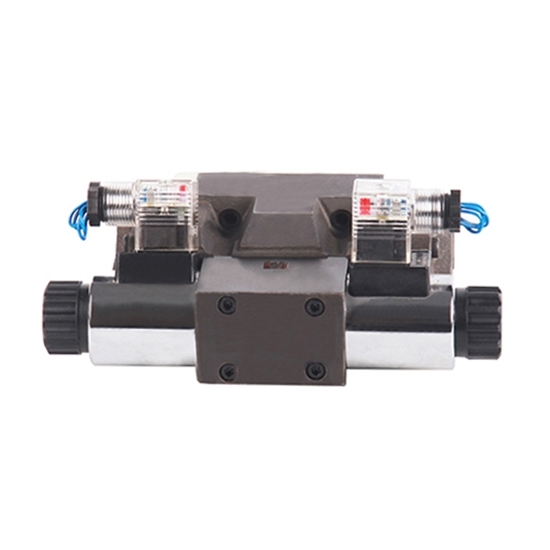

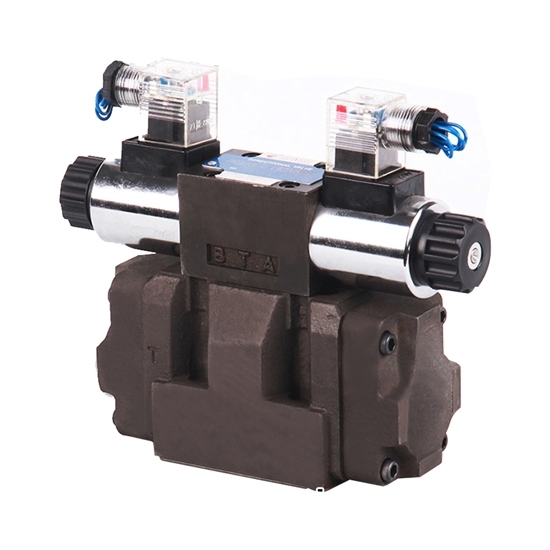

Hydraulic Solenoid Valve, 4 way, AC 220V

Hydraulic Solenoid Valve, 4 way, AC 220V

High quality 4 way hydraulic solenoid valve at affordable price for sale online. 10 mm, 16 mm, 25 mm and 32 mm orifice can be chosen. System simplicity and easy maintenance are the advantages of hydraulic solenoid valve. Solenoid directional valve is widely used in nuclear power industry and oil refining industry.

SKU: CCHN-HSV-A220

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This solenoid valve cannot be used for drinking water.

Hydraulic solenoid valve is used to control fluid automation basic components, is a direction control valve. 10 mm, 16 mm, 25 mm and 32 mm orifice can be chosen.

Specification:

Model	CCHN-4WEH10E/J	CCHN-4WEH16E/L/U/J	CCHN-4WEH25E/L/J	CCHN-4WEH32E/L/J
Orifice (mm)	10	16	25	32
Connect Type	plate link
Control Mode	electromagnetic control
Flow Direction	reversing
Nominal Pressure	28 MPa
Channel	4 way
Medium	oil
Material	cast iron
Voltage	AC 220V
Hydraulic Oil	mineral hydraulic oil / phosphate ester hydraulic oil
Fluid Temperature	NBR -30 ℃ ~ 80 ℃ / VITON -20 ℃ ~ 80 ℃
Standard	ISO9001

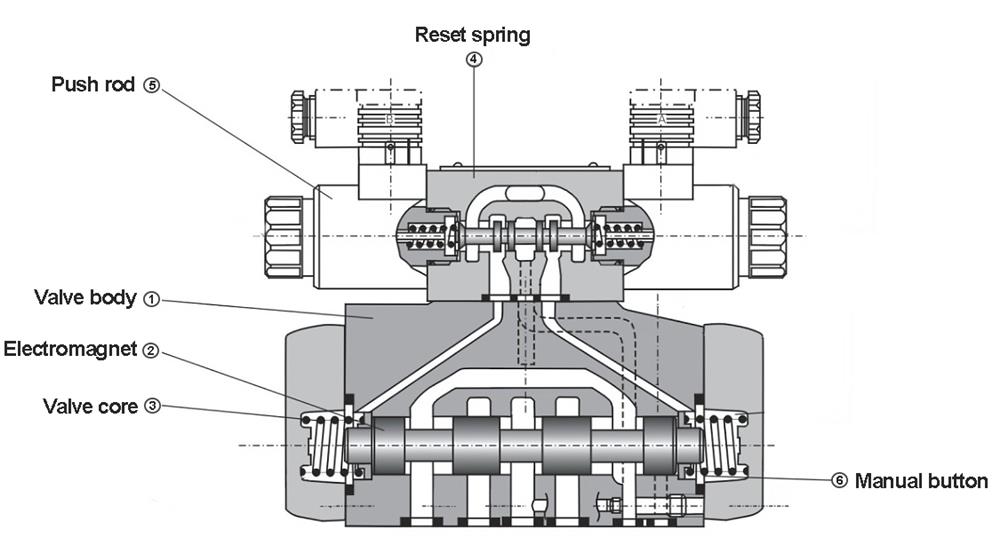

Hydraulic Solenoid Valve Structure:

Hydraulic solenoid valve structure

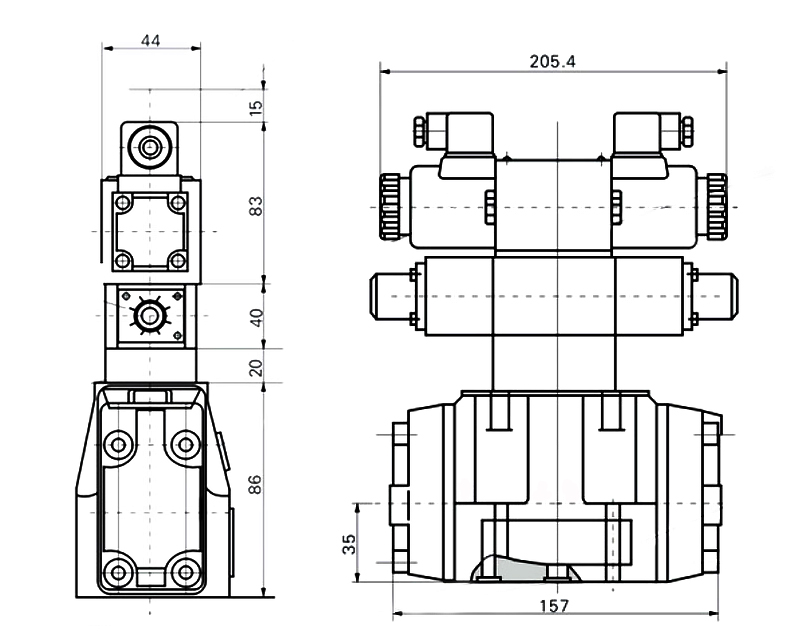

Dimension (Unit: mm)

Hydraulic solenoid valve dimension

Application:

Hydraulic solenoid valve application

Tips: Factors to Consider When Choosing Hydraulic Solenoid Valve

Rate of flow. The flow requirement for the application will help in determining the size of the valve.
Material. The material of the valve should be compatible with the properties of flowing media.
Temperature. The valve materials can withstand the minimum and maximum temperature requirement of your application. Temperature is also essential in determining valve capacity as it affects the viscosity and flow of the fluid.
