Explosion Proof Solenoid Valve, Stainless Steel, NC, DC 6V/12V/24V

Reasonable price and high quality stainless steel solenoid valve for sale online. 6V, 12V and 24V voltage of DC solenoid valve can be chosen. NC solenoid valve open from 0 bar with large flow rate. Hot water, civil gas and oil can be used as the explosion proof solenoid valve medium.

SKU: CCHN-EPSV-SNCD

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This solenoid valve cannot be used for drinking water.

Stainless steel solenoid valve adopts direct lifting diaphragm construction. Solenoid operated valve widely used in liquid and gas line switch control.

Specification:

Model	CCHN-2WEX-10	CCHN-2WEX-15	CCHN-2WEX-20	CCHN-2WEX-25	CCHN-2WEX-32	CCHN-2WEX-40	CCHN-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANGE
Voltage	DC 6V, 12V, 24V
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	stainless steel UPVC
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

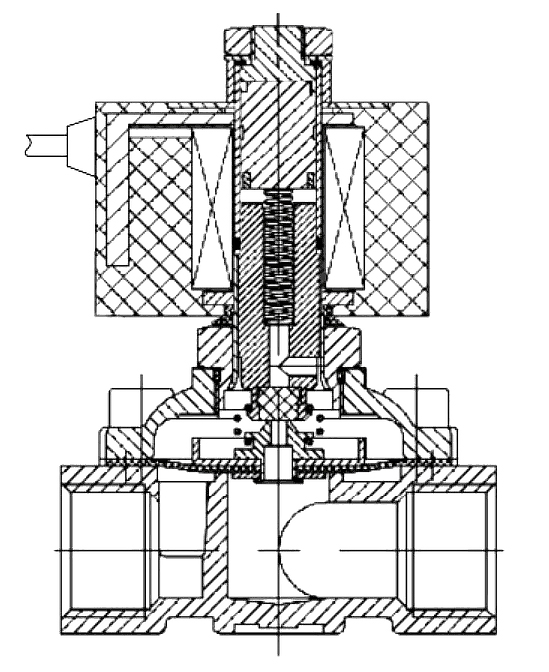

Explosion Proof Solenoid Valve NC Structure:

Explosion proof solenoid valve NC structure

Thread Connection Dimension (Unit: mm)

Explosion proof solenoid valve DN10-25 dimension

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Explosion proof solenoid valve DN32-50 dimension

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: Safety of Solenoid Valve

General solenoid valve is not waterproof, when the conditions do not allow, please choose waterproof type, the factory can be customized.
The highest nominal pressure of the solenoid valve must exceed the highest pressure in the pipeline, otherwise the service life will be shortened or produce other accidents.
Corrosive liquid should be selected all stainless steel type. Explosive environment must choose the corresponding explosion-proof products.
