Explosion Proof Solenoid Valve, Brass, NO, AC 24V/110V/220V

Competitive price brass solenoid valve for sale online. 3/8", 1/2", 3/4", 1" port size of solenoid valve AC 220V can be chosen. Tolerance of explosion proof solenoid valve is in the 10% range. NBR fluid temperatures between -5 ℃ to 80 ℃.

SKU: CCHN-EPSV-BNOA

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This solenoid valve cannot be used for drinking water.

The coil shell of the explosion-proof solenoid valve has a blocking effect on the gas explosion energy transfer. Pressure of NO solenoid valve between 0.0 MPa and 1.0 MPa.

Specification:

Model	CCHN-2WEX-10	CCHN-2WEX-15	CCHN-2WEX-20	CCHN-2WEX-25	CCHN-2WEX-32	CCHN-2WEX-40	CCHN-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANGE
Voltage	AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	brass
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

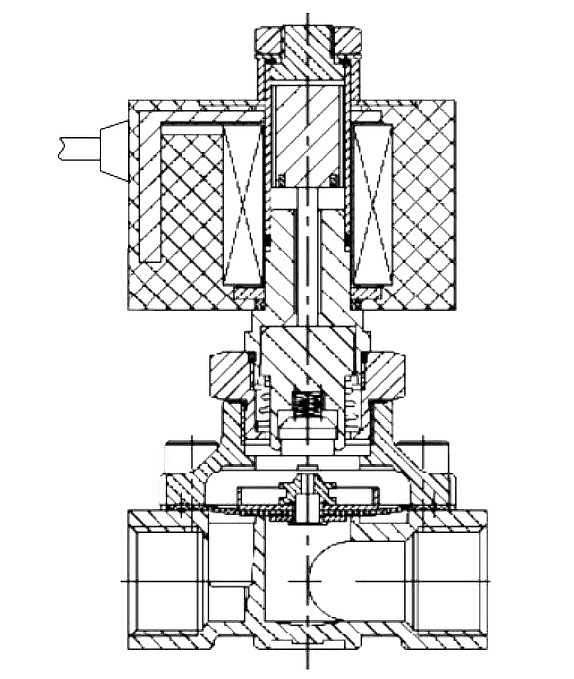

Explosion Proof Solenoid Valve NO Structure:

Explosion proof solenoid valve NO structure

Thread Connection Dimension (Unit: mm)

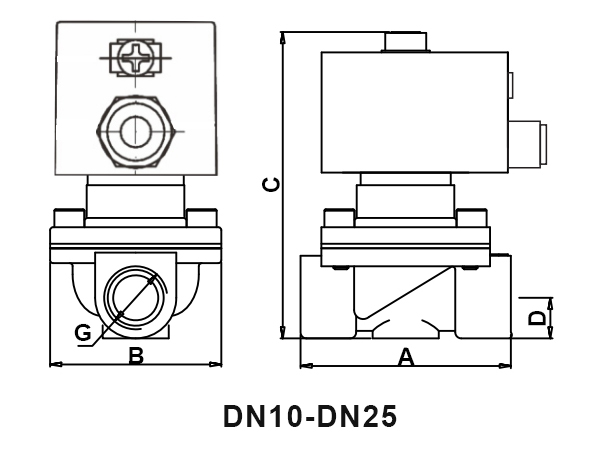

Explosion proof solenoid valve DN10-25 dimension

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Explosion proof solenoid valve DN32-50 dimension

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: Advantages of NBR

Nitrile butadiene rubber has good heat resistance, and its heat resistance is better than natural rubber and styrene butadiene rubber.
Rubber is endowed with better physical and mechanical properties and wear resistance by reinforcement.
The antistatic property is excellent, and the plasticizing effect is better with polar lipids.
Good compatibility with polar substances, such as PVC, alkyd resin, nylon.
