Explosion Proof Solenoid Valve, Brass, NC, AC 24V/110V/220V

High quality brass solenoid valve with reasonable price for sale. 3/8", 1/2", 3/4", 1" port size of 24V solenoid valve can be chosen. The coil shell of explosion proof solenoid valve has high safety performance and can withstand the pressure of gas explosion.

SKU: CCHN-EPSV-BNCA

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Note: This solenoid valve cannot be used for drinking water.

The coil shell of the explosion-proof solenoid valve has a blocking effect on the gas explosion energy transfer. Especially suitable for the transmission of flammable and explosive media.

Specification:

Model	CCHN-2WEX-10	CCHN-2WEX-15	CCHN-2WEX-20	CCHN-2WEX-25	CCHN-2WEX-32	CCHN-2WEX-40	CCHN-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANGE
Voltage	AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	brass
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

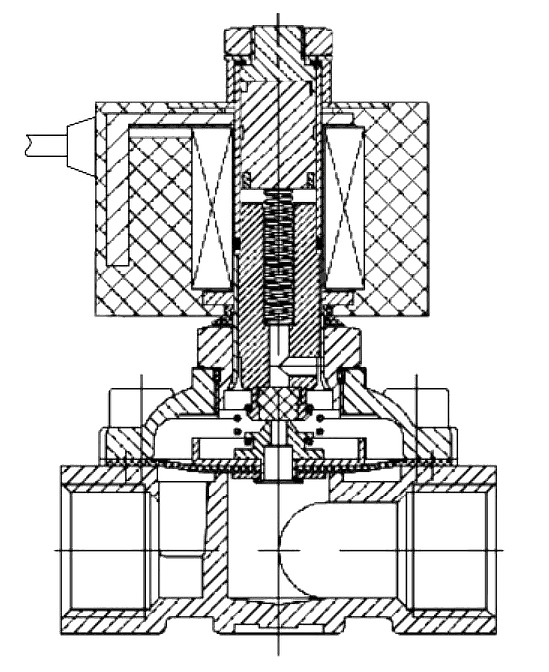

Explosion Proof Solenoid Valve NC Structure:

Explosion proof solenoid valve NC structure

Thread Connection Dimension (Unit: mm)

Explosion proof solenoid valve DN10-25 dimension

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Explosion proof solenoid valve DN32-50 dimension

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: Working Principle of Explosion Proof Solenoid Valve

There is a closed chamber in the explosion-proof solenoid valve, and there are through holes in different positions, each hole leads to different tubing. In the middle of the chamber is a valve, and two electromagnets are on both sides. The valve body will be attracted to which side when the magnet coil is energized. By controlling the movement of the valve body to stop or leak out of different drainage holes, and the oil inlet hole is normally open, the hydraulic oil will enter the different drainage pipe, and then through the pressure of the oil to promote the piston cylinder, piston rod, piston rod to drive the mechanical device.
