High Frequency Coaxial Slip Ring, 1~2 Channel

Favorable price high frequency coaxial rotary joint is used in the 360° continuous rotation devices to transfer DC~3GHz, DC~18GHz high frequency signals. This slip ring is used for satellite antenna, vehicle, radar, microwave antenna test bench. High frequency rotary union can support single channel or multi channels for transmission and communication.

SKU: CCHN-HFSR-HF0103

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

High frequency coaxial slip ring is used transmitting of analog and digital signal, 1 ~ 2 channel, can be used for satellite antenna, vehicle, radar, microwave antenna test bench, etc.

Specification

Model: CCHN-HF0103-7/22/32
Number of Channel: 1 ~ 2 Channel
Frequency: DC~3GHz, DC~18GHz
Connector Type: coax RG405 (can add SMA, MCX, MMCX connectors)
Phase WOW (Max Degree): 1°
VSWR: 1.7@DC to 3GHz
VSWR Fluctuation: 0.05
Insertion Loss: 0.25dB@DC to 1.5GHz, 0.30dB@10 to 3GHz
Insertion Loss Fluctuation: 0.05dB
Peak Power: 500W
Average Power: 200W@1.5GHz, 500W@3GHz
Rotating Speed: 250 rpm
Working Life: >10 Millions for Ref (Depends on Working Conditions)
Starting Torque: 0.5N.cm
Rotating Torque: 0.5N.cm
Connector Axial Load: 0.1N
Connector Radial Load: 0.1N
Insulating Material: PTFE
Protection Grade: IP 40 acc. EN 60529
Electrical Noise: < 0.01Ω
Work Temperature: -55℃ to +85℃, 95%RH
Storage Temperature: -55℃ to +85℃, 85%RH

Dimension Drawing (Unit: mm)

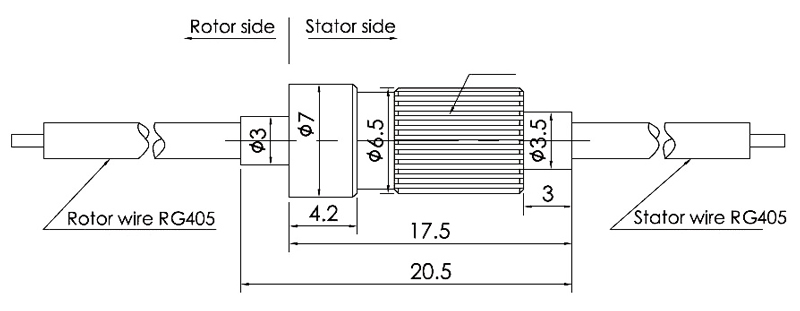

HF0103-07: Single Channel, DC~3GHz, OD: 7mm

Dimension of high frequency slip ring 7mm

HF0103-22: Single Channel, DC~3GHz, OD: 22mm

Dimension of high frequency slip ring 22mm

Standard Model List

Model	RF Channel	Frequency	Circuits no. (10A)	Circuits no. (0~2A)	Length L(mm)
CCHN-HF01032206	1 channel	DC~3GHz	0	06 channels	25.5mm
CCHN-HF01032212	1 channel	DC~3GHz	0	12 channels	25.5mm

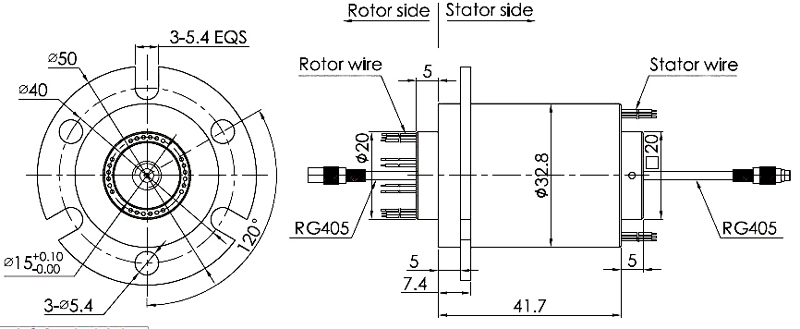

HF0103-32: Single Channel, DC~3GHz, OD: 32.8mm

Standard Model List

Model	RF Channel	Frequency	Circuits no. (10A)	Circuits no. (0~2A)	Length L(mm)
CCHN-HF01033218	1 channel	DC~3GHz	0	18 channels	41.7mm
CCHN-HF01033224	1 channel	DC~3GHz	0	24 channels	41.7mm

Note: Please contact us if you have special requirements for CCHN slip ring. The package includes the controller. Click CCHN High Frequency Slip Ring Catalog (PDF) for more models and specifications.

Tips: What is a high frequency slip ring?

High frequency slip ring is a product developed to meet high-speed serial digital signal and analog signal transmission, which plays a very important role in the entire signal transmission equipment. The maximum transfer rate is 40GHz. It supports the independent transmission of one-way or multi-channel high-frequency signals, and also supports the mixed transmission of high frequency signals and 24V control signals, communication signals, power supply, and fluid media. The high frequency signal adopts a 50 characteristic impedance RF coaxial structure head.
