Loop Powered Signal Isolator 4-20mA/0-20mA/0-5V/1-5V/0-10V

Loop Powered Signal Isolator 4-20mA/0-20mA/0-5V/1-5V/0-10V

Signal isolators ATO-SIGNI-602S series are the upgraded loop-powered signal isolators with smaller installation space and better anti-interfere ability (IEC 61326-3-1). Loop-powered signal isolator has a high accuracy of 0.1%FS and 35mm DIN rail installation structure. Now it is widely used for signal isolation/conversion/distribution of electrical cabinet, VFD, PLC control cabinet and pump station.

SKU: CCHN-SIGNI-602S

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Signal isolator can convert 4-20mA/ 0-10mA/ 0-20mA/ 0-5V/ 1-5V/ 0-10V signal to standard signal or other customized signal.

Specification:

Model	CCHN-SIGNI-602S
Shipping weight	0.5kg
Dimension	12.7110118.9mm, 17.7110118.9mm
Type of signal *	4-20mA, 0-10mA, 0-20mA, 0-5V, 1-5V, 0-10V
Power supply	DC 24V, DC 18-32V
Accuracy	0.1%FS
Number of input & output channels *	1 input channel & 1 output channel, 1 input channel & 2 output channels, 2 input channels & 2 output channels, 1 input channel & 3 output channels, 1 input channel & 4 output channels
Input impedance	100Ω
Response time	≤0.5s
Installation	35mm DIN rail

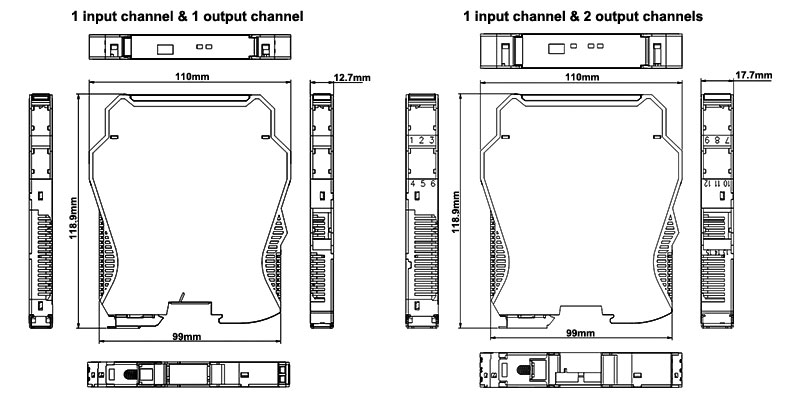

Dimensional drawing:
Loop powered signal isolator with usb interface dimensional drawing

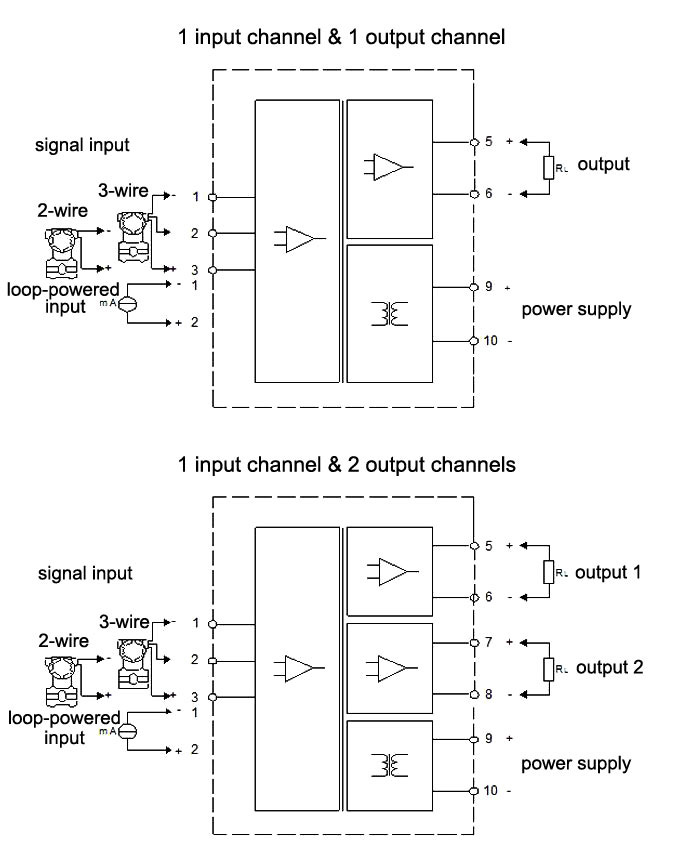

Wiring diagram:
