50W AC Servo Motor with Drive, 0.16 Nm, 3000 rpm

50W AC Servo Motor with Drive, 0.16 Nm, 3000 rpm

50W AC servo motor with drive offers 220V input, 3000 rpm rated speed, 0.16 Nm rated torque, and 17-bit incremental encoder for precise motion control. Equipped with DSP digital control, triple-loop control mode, low noise operation, and anti-resonance performance, this compact IP65 servo motor delivers smooth, stable, and high-efficiency operation for CNC machines, robotics, and automation equipment.

SKU: CCHN-SERVO-40S50

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Designed for precision motion control, this AC servo motor kit delivers fast response, stable operation, and smooth low-speed performance without vibration or resonance. Featuring advanced DSP control technology, low-noise operation, and high-efficiency silicon steel construction, it is ideal for packaging equipment, and industrial automation systems.

Specification

Servo Motor Model	CCHN-LCMT-005SLC17-40M00130B
Servo Drive Model	CCHN-LC10-50 (Click to see the user manual)
Rated Power	50 W
Rated Line Voltage	220 V
Rated Line Current	0.8 A
Rated Speed	3000 rpm
Rated Torque	0.16 N·m
Peak Torque	0.48 N·m
Back EMF Constant	19 V/1000 rpm
Torque Constant	0.2 N·m/A
Rotor Inertia	0.035 × 10^-4 kg·m²
Winding Resistance (Line-to-Line)	19.7 Ω
Winding Inductance (Line-to-Line)	41 mH
Electrical Time Constant	2 ms
Motor Power Cable	Default: 3 m (Please contact us for other cable lengths.)
Encoder Cable	Default: 3 m (Please contact us for other cable lengths.)
Encoder Resolution	17-bit Incremental
Insulation Class	Class F
Protection Class	IP65
Weight	0.6 kg

Feature

50W AC servo motor with drive adopts advanced DSP digital control technology for accurate positioning, fast response, and stable operation without step loss.
High-quality silicon steel core provides strong magnetic conductivity, low coercivity, and improved energy efficiency.
The AC servo motor kit uses a triple-loop control system with position, speed, and current control for smooth and precise motion performance.
Advanced noise reduction design enables low-noise operation for quieter working environments.
CCHN AC brushless servo motor with drive provides stable low-speed operation without vibration or resonance, improving motion accuracy and system reliability.
Supports pulse + direction and dual-pulse input modes with pulse feedback output for flexible control applications.
50W AC servo motor kit features built-in 16-position and 16-speed internal control functions for easier automation integration.
Compact IP65-rated servo motor is suitable for CNC machines, robotics, packaging machinery, and industrial automation equipment.

Detail

Servo Motor

50W AC Servo Motor Detail

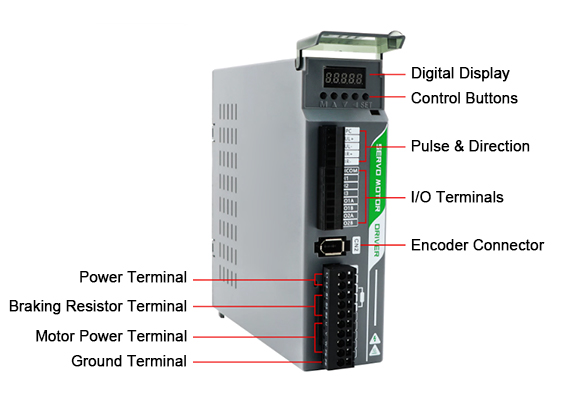

Servo Drive

Size (unit: mm)

Servo Motor

50W AC servo motor size

Servo Drive

Package Includes

50W AC servo motor package

Tips: What is the difference between Pulse Type and RS485 Type 50W AC servo motor with drive?

Pulse Type 50W AC servo motor with drive is widely used in CNC machines, PLC control systems, and motion controllers that rely on pulse + direction or dual-pulse signals. It offers fast response, simple wiring, high positioning accuracy, and is ideal for single-axis or high-speed point-to-point motion applications. RS485 Type 50W AC servo motor with drive uses serial communication control, making it more suitable for industrial automation systems, multi-axis control, and networked equipment. It supports parameter setting, command communication, and centralized control, providing better scalability, stability, and integration for complex automation projects.
