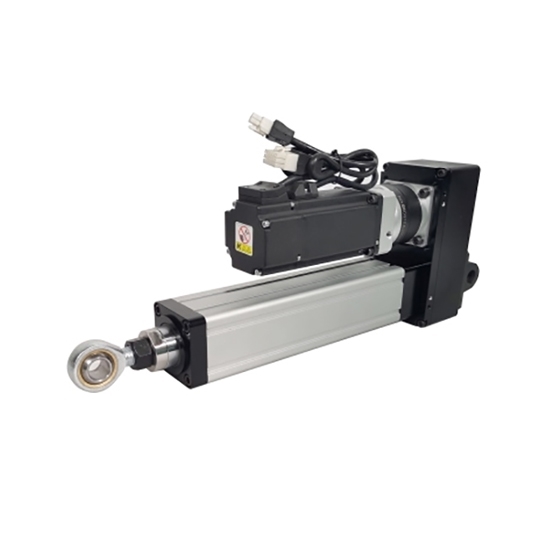

400W Linear Servo Motor, 1.27Nm, 1.02 kN, 800mm

400W Linear Servo Motor, 1.27Nm, 1.02 kN, 800mm

Cheap price linear servo actuator online for sale, with rated power 400 watt, rated voltage 220V, two connection types for selection, max. stroke 800mm, reduction ration 1:1, rated torque 1.27 Nm, rated thrust 0.68 kN, max. thrust 1.02 kN. Linear servo motor is widely used in the paper industry, chemical industry, automobile industry, electronics industry, mechanical automation industry, welding industry, etc.

SKU: CCHN-SERVO-L400

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

400W linear servo actuator with good price, which features rated speed 3000 rpm, max. speed 5000 rpm, rated linear speed 500mm/ s, 800mm max. stroke. Linear cylinder has the advantages of low noise, energy saving, clean, high rigidity, impact resistance, long service life.

Specification

Model	CCHN-EDA060-400W
Rated power	400W
Rated voltage	220V
Structure type	In-line/ Reentrant
Lead	10mm
Reduction ratio	1:1
Rated speed	3000 rpm
Max. speed	5000 rpm
Rated torque	1.27 Nm
Rated thrust	0.68 kN
Rated linear speed	500mm/ s
Max. thrust	1.02 kN
Max. linear speed	833.33mm/ s
Max. stroke	800mm
Diameter	16mm
Inductive switch	Magnetic induction, PNP, 2NO (Please contact us for other switches)
Motor brand	Japan
Pressure sensor	Not include (50kg/100kg/200kg/300kg/400kg/500kg/600kg/800kg/900kg/1T/2T can be customized, please contact us if necessary)
Weight	42kg
Certificate	CE
Warranty	12 months

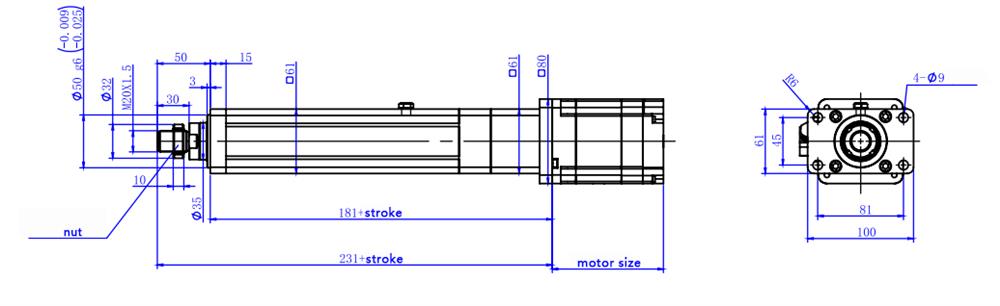

Dimension (unit=mm)

In-line

Reentrant

Details

400W Linear Servo Motor Details

Tips: What is Linear Servo Motor?

The linear servo motor is a modular product that integrates the servo motor and the lead screw. It converts the rotary motion of the servo motor into linear motion. At the same time, it transforms the best advantages of the servo motor-precise speed control, precise speed control, and precise torque control. Precise speed control, precise position control, precise thrust control.
