Automatic Screw Feeder Machine, Air-blowing Type

Automatic Screw Feeder Machine, Air-blowing Type

Air-blowing type automatic screw feeder machine, AC 100~240V working voltage, 50 watt rated power, adjustable 5~6kg.f/cm2 working pressure and 50~70pcs/min screw locking speed. Automatic screw feeder is suitable for locking various screws with 2.7~25mm total length, M1.0~M6.0 screw diameter, 1.0-12.0mm nut diameter.

SKU: CCHN-ASF-H2

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

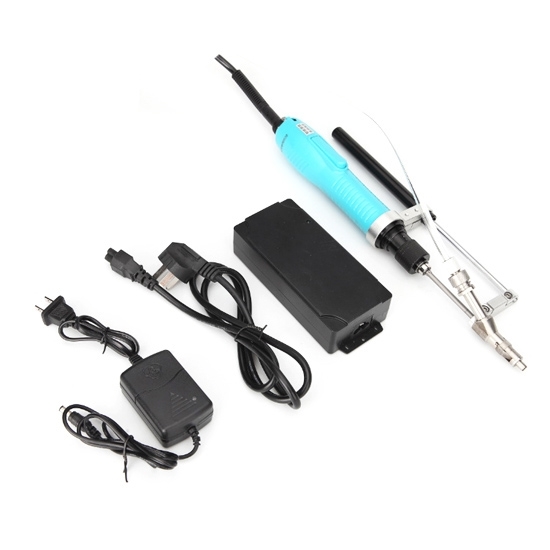

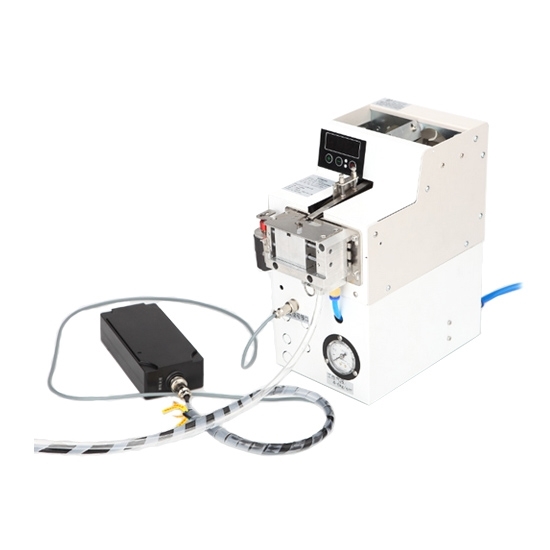

Automatic screw feeder machine mainly includes a air-blowing type screw feeding device and a handheld electric screwdriver. It can be used for locking screws in workpiece with 100mm depth hole. The working pressure, screwdriver torque and motor speed are all adjustable. The automatic screw feeder can automatically select and dispense screws. Its design not only enhances work efficiency but also diminishes the manual labor intensity.

Function:

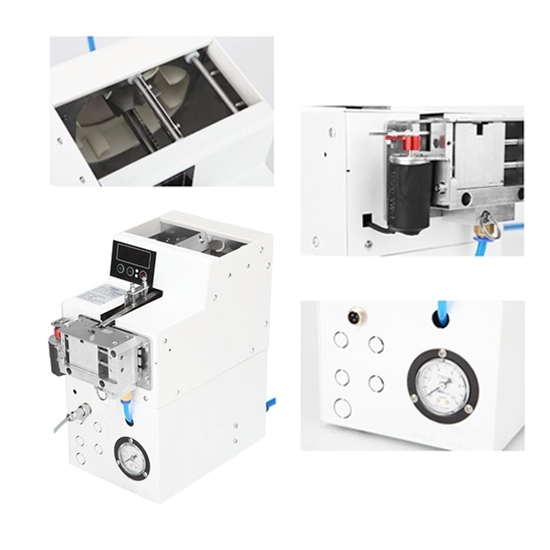

Air-blowing type automatic screw feeder machine with a lightweight design and compact structure can be placed above the workbench.
There is no special skill required for the operator. The operator is easy to operate and not feel tired.
Automatic screw feeder machine with high efficiency can increase the processing efficiency for 2-4 times and save 1-3 people for each machine, thereby quickly save production costs.
Stable performance, long service life, no special maintenance is required. And occasional failure processing time does not exceed 1 minute, which will not delay production progress.

Specification:

Model	CCHN-CBD-668
Shipping weight	7kg
Packaging included	1 * Automatic screw feeding device 1 * Electric screwdriver 1 * Electric screwdriver assembly 1 * Feeding pipe 2 * Power adapter with cable
Power supply	100~240VAC, 50/60Hz, 1~2A
Rated power	50W
Screw feeding method	Air-blowing type
Working pressure	5~6kg.f/cm²
Screw feeding speed	60~80pcs/min
Screw feeding distance	1.5~2m
Screw locking speed	50~70pcs/min (according to screw length)
Screw feeding device parameter	Diameter: 320145270mm (LWH) Working voltage: 15VDC (2000mA) Weight: 5.5kg
Capacity of screw storage box	1000pcs of M3*8 screw (according to screw size)
Screwdriver parameter	Diameter: 230*42.5mm Internal motor: Brushless DC motor Motor speed: 1000-1800rpm Working voltage: 32VDC (3A) Torque range: 0.5-25Nm (torque can be adjusted) Weight:750g
Types of screw *	Material: all Thread: M1.0~M6.0 Total length of screw: 2.7-25mm (total length of screw≥1.2 diameter of nut) Diameter of nut: 1.0-12mm Types of nut: See details as above types of nut diagram Note: It is best to contact our customer service to confirm whether your screws are suitable for this model, especially nonstandard screws need to be given detailed dimensions and pictures. The default automatic screwdriver is only capable of securing screws in flat positions (or shallow holes). If your screws require insertion into deep holes, please provide us with the dimensions of the screw holes in the product to be secured.
Warranty	1 year

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Types of nut diagram:

Types of nut for handheld automatic screw feeder
