2 Position 100A Rotary Switch 3 Pole/4 Pole

2 Position 100A Rotary Switch 3 Pole/4 Pole

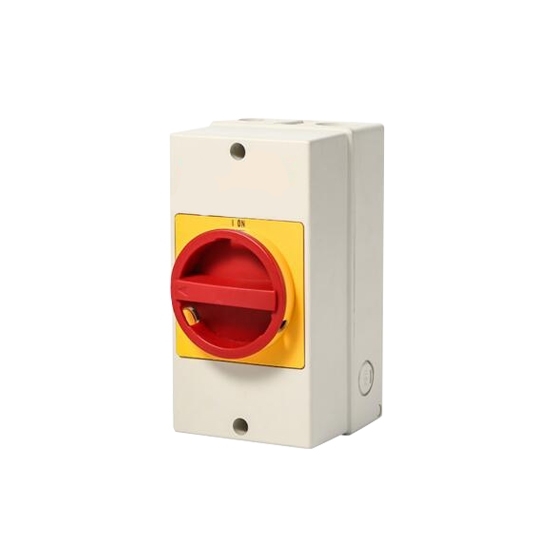

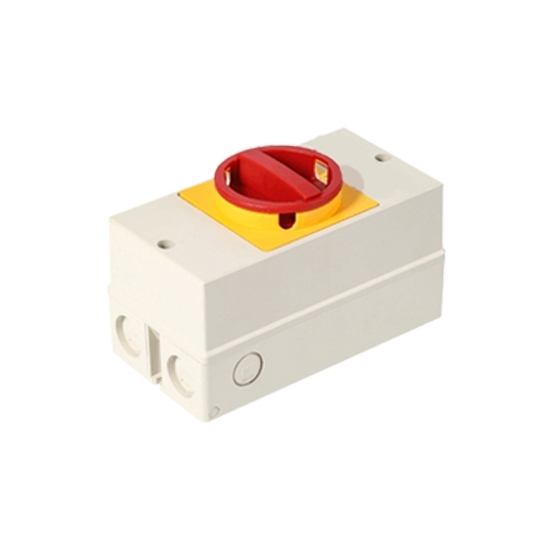

Manufacturer rotary switch for sale, 100 amps rated current, 2 position, 3 pole or 4 pole for selected, universal switch can be used to directly control the start, speed and commutation of small capacity motors.

SKU: CCHN-WS30100

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Rotary cam switch 3 pole or 4 pole, 2 position, 100A, suitable for standard low voltage control/load switching and ultra low voltage and electronic applications.

Specification:

Model		CCHN-WS30100
Rated Thermal Current		100A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	100A	100A
	AC-22A	100A	100A
	AC-23A	70A, 22 kW	70A, 37 kW
	AC-3	57A, 18.5 kW	57A, 30 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

Rotary switch 3 pole dimensions.

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	70	80	22.5	82	48	48	φ10	φ4.2

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ37.5	φ23	144	145	250	--	229	124	φ6.5

Rotary Switch Diagram

Rotary switch 3 pole 4 pole Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
