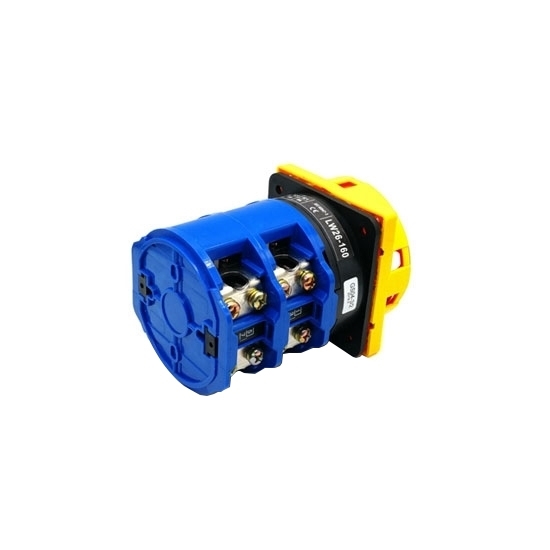

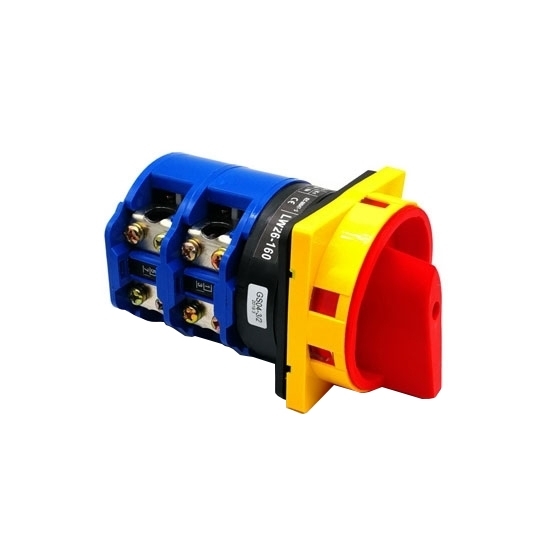

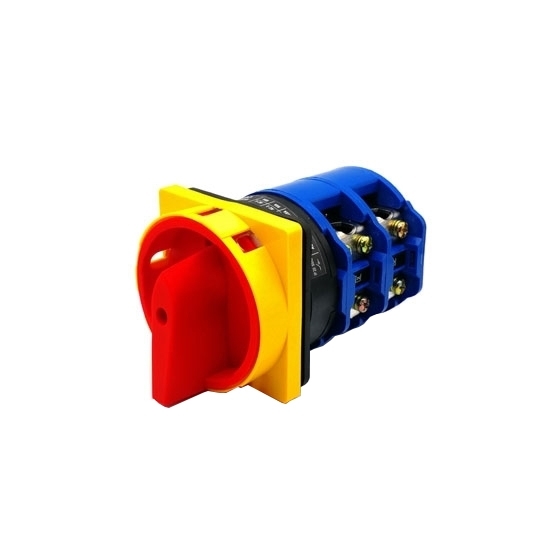

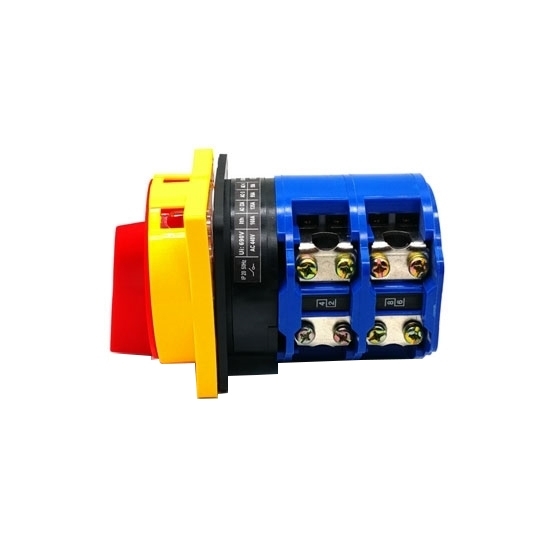

2 Position 20A Rotary Switch, 4 Pole

Selector switch 2 position for sale, 20 amp samll rotary cam switch, 4 pole, rated voltage 440V, mainly applied to AC 50 Hz, rotary switch is ideal for power switches in power lines, rotary selector switch design, easy to control, easy to install square plate.

SKU: CCHN-LW26GS20

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

2 position 4 pole rotary switche has the characteristics of compact structure, good insulation, flexible switching operation, safe and reliable. Small size, light weight and long service life.

Specification:

Model		CCHN-LW26GS20
Rated Voltage		440V
Rated Thermal Current		20A
Rated Working Current	AC-21	20A
	AC-22	20A
	AC-23	15A
Pole		4 Pole
Position		2 Position
Rated Power		7.5 kW
Escutcheon Plate		M2
Dimension	A	64
	C	43
	L	43
	H	42
	E	48
	F	48
	D1	φ10
	D2	φ4.5
Ambient Temperature		-25℃-40℃
Altitude		≤2000m
Humidity		≤50%

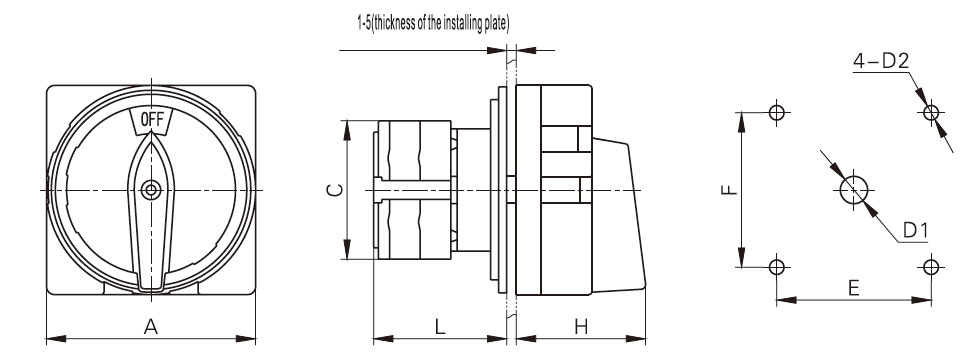

Dimensions (Unit=mm)

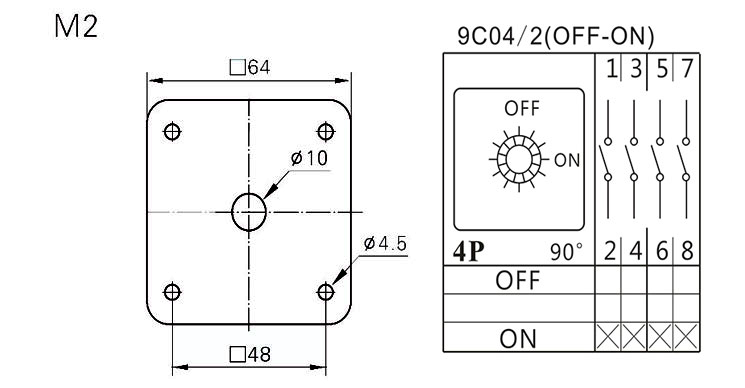

20A 4 Pole M2 Panel

Rotary switch escutcheon plate
Tips: What is a rotary switch?

The rotary switch is actually a multi-function, multi-loop combination switch for controlling the circuit to issue control commands or for remote control. It can also be used as a voltmeter, a commutation switch for an ammeter or as a start and adjust for a small-capacity motor. Speed and commutation control.
