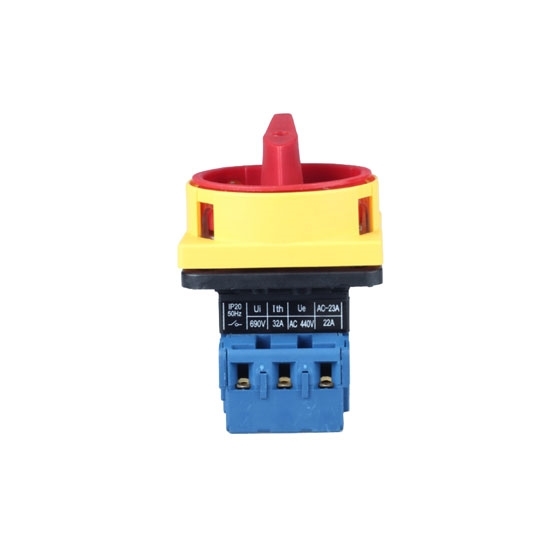

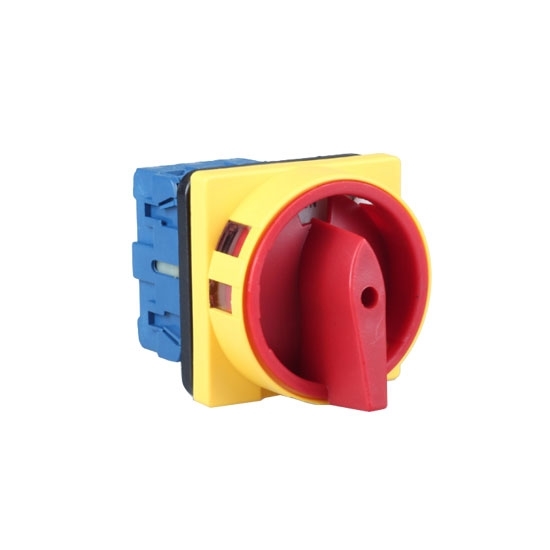

Rotary switch 2 position, 3 pole or 4 pole is available, 20amp, IP65, mainly used for ac 50Hz, cam switch can be used for ventilation equipment, air conditioning and water pump system of the main switch, but also directly control the small ac motor.

SKU: CCHN-WS3020

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

3 pole rotary cam switch 2 position, frequency 50Hz, rated current 20A, fast disconnection, small size, reliable performance, compact structure and easy operation.

Specification:

Model		CCHN-WS3020
Rated Thermal Current		20A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	20A	20A
	AC-22A	20A	20A
	AC-23A	15A, 4 kW	15A, 7.5 kW
	AC-3	11.7A, 3 kW	11.7A, 5.5 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

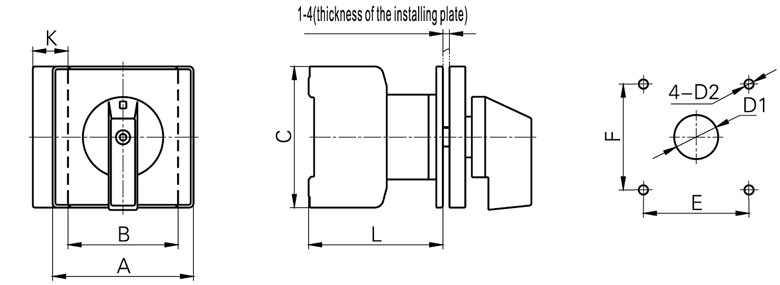

Rotary switch 3 pole dimensions.

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	42	54	13.5	61	48	48	φ10	φ4.2

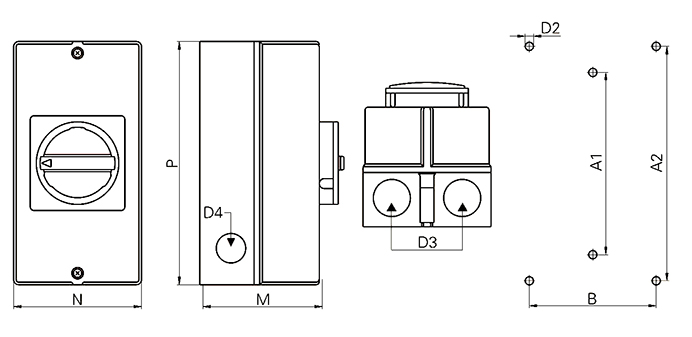

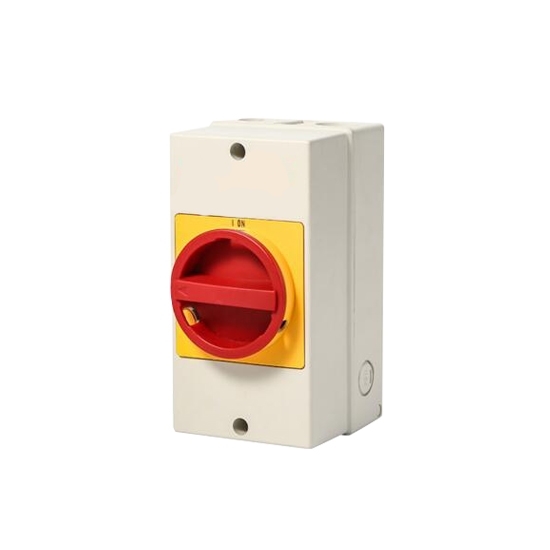

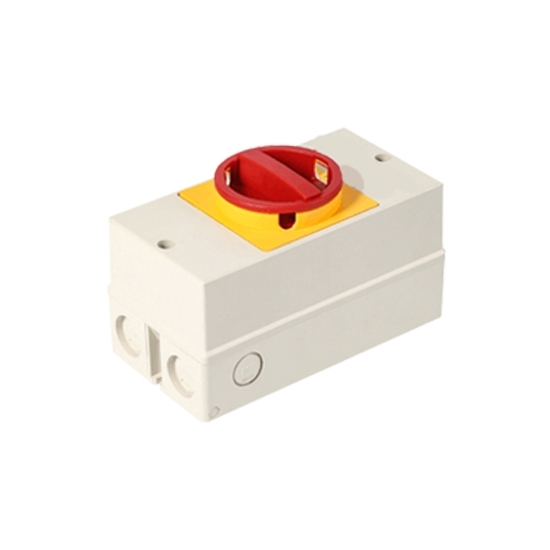

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ23	φ19	85	83	160	150	--	--	φ4.2

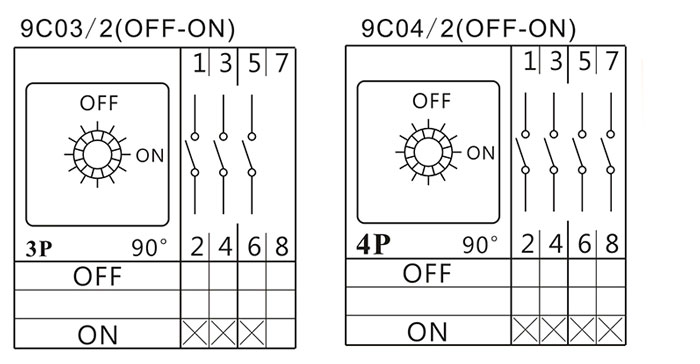

Rotary Switch Wiring Diagram

Rotary switch 3 pole 4 pole Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
