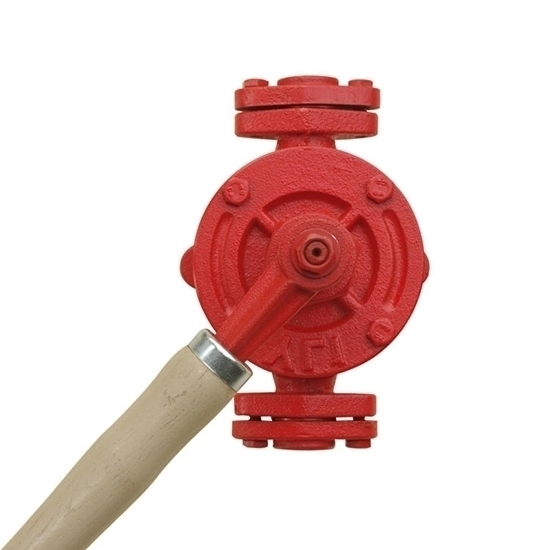

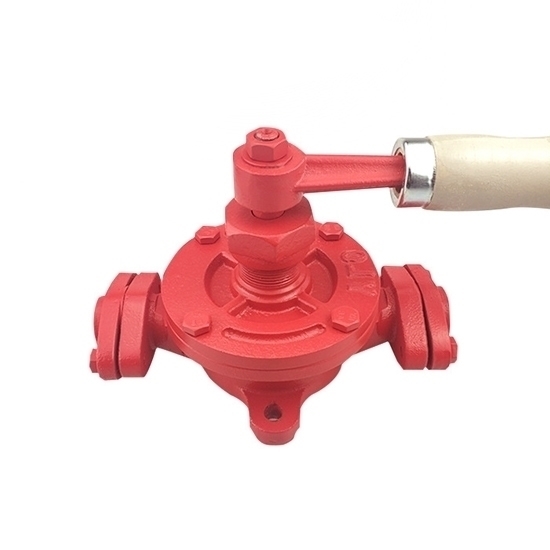

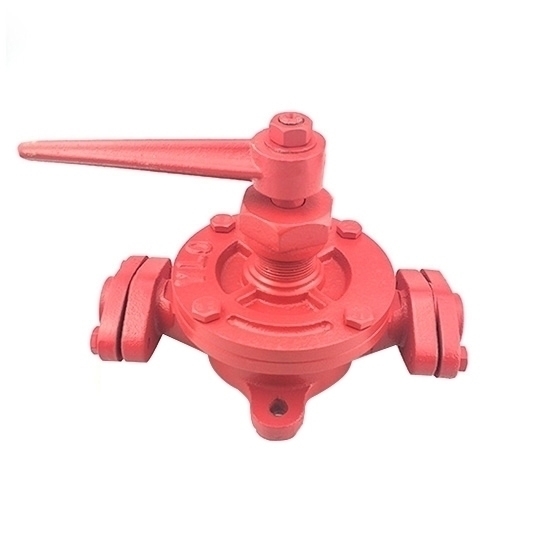

G2" Semi Rotary Hand Pump, 105 LPM

Semi rotary hand pump is a manual pump used for transferring fluids, typically in situations where electric pumps are not feasible or available. This hand operated rotary pump operates by manually rotating a handle, which creates suction and pressure to move oil, diesel, gasoline, and other fluids.

Specification

• Model: CCHN-SRHP-YL7
• Dive Mode: Manual Semi Rotary
• Port Size: G2 inch Thread
• Suction Capacity: 6.5m
• Lift Capacity: 18m
• Flow Rate: 105 L/min
• Material: Cast Iron

Dimension (Unit: mm)

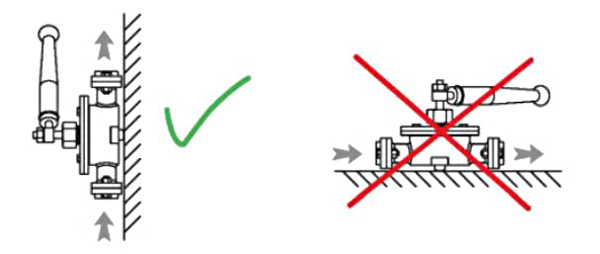

Installation

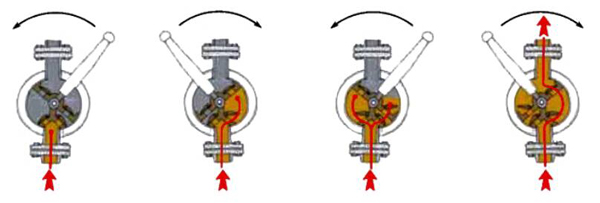

How to Use

Tips: What types of liquids can semi rotary hand pump be used to transfer?

A semi-rotary hand pump is typically designed for transferring a variety of liquids, including oils (such as motor oil, and hydraulic oil), diesel, kerosene, gasoline, alcohol-based fuels, and non-corrosive chemicals like mild acids and bases. These pumps are often made from materials like cast iron, aluminum, or stainless steel, which are compatible with these liquids. They are commonly used in agricultural, automotive, construction, and industrial settings where manual transfer of liquids is necessary. It's important to verify compatibility with specific liquids and ensure the pump's construction materials can withstand the chemical properties and viscosity of the substance being transferred.
