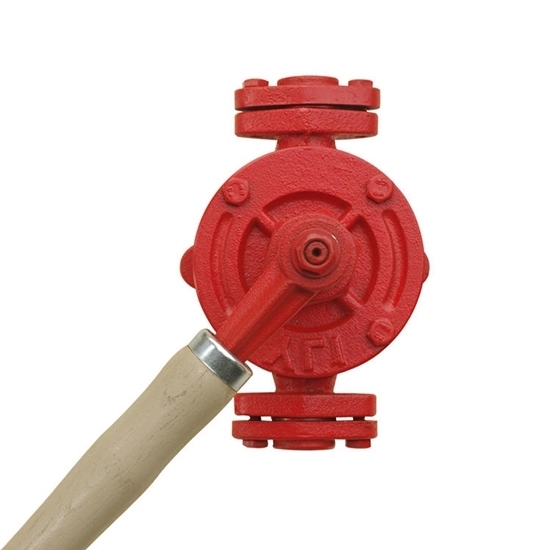

G3/4" Semi Rotary Hand Pump, 20 LPM

Economical price semi rotary hand pump for sale, with G3/4 inch thread port, 20 LPM flow rate. This manual rotary pump is made from cast iron for transferring oil, diesel oil, gasoline and kerosene.

SKU: CCHN-SRHP-YL1

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Semi rotary hand pump is a manually operated device used to transfer liquids, commonly employed in industrial, agricultural, and marine settings. Designed with a semi-rotary mechanism, it features a handle that moves back and forth through a 180-degree arc, creating a suction and discharge action to pump the fluid.

Specification

Model: CCHN-SRHP-YL1
Dive Mode: Manual Semi Rotary
Port Size: G3/4 inch Thread
Suction Capacity: 5m
Lift Capacity: 14m
Flow Rate: 20 L/min
Material: Cast Iron

Dimension (Unit: mm)

Semi rotary hand pump dimension

A	B	C	D	E	F	G	φd
115	140	G3/4 inch	205	φ35	175	290	φ10

Installation

Semi rotary hand pump installation

How to Use

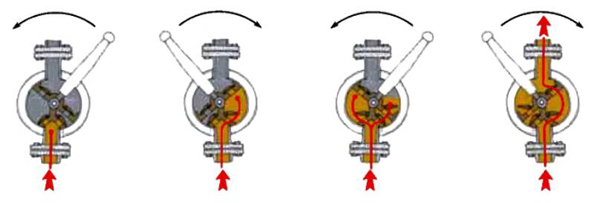

How to use semi rotary hand pump

Tips: Can semi rotary hand pump be used in high temperature environments?

Semi rotary hand pumps typically have temperature limitations due to their construction materials and seals. Many are designed for use within a moderate temperature range, often up to 60-80°C (140-176°F). In high-temperature environments exceeding these limits, the pump's performance and longevity may be compromised. Seals and lubricants can degrade faster, leading to potential leaks or failures.
