Inductive Proximity Sensor, M12, NPN/PNP, NO/NC

M12 inductive proximity sensor can detect a variety of metals, small size, long life, anti-interference ability, shielded type installation, 2mm detection distance, manufacturer direct sale. The proximity sensor uses a nickel-plated brass shell (strong corrosion resistance) and ABS detection surface (impact resistance), and has an IP67 protection level, which can work stably in a variety of environments.

SKU: CCHN-PROS-I12

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Inductive proximity sensor with M12*1 thread, NPN type output, manufacturer direct sale. Within ±15% of the rated supply voltage, the sensor maintains a detection distance variation within ±10% of the rated value.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification

Model			CCHN-PSI-12A2ZN
Installation type			Shielded	Unshielded
All the output methods	DC type	NPN	NO	NO
			NC	NC
			NO+NC	NO+NC
		PNP	NO	NO
			NC	NC
			NO+NC	NO+NC
		2 wire	NO	NO
			NC	NC
	AC type	2 wire	NO	NO
			NC	NC
Detection range			2mm±10%	4mm±10%
Setting distance			0-1.6mm	0-3.6mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 12121mm	Iron 15151mm
Response frequency			DC: 1kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

Proximity sensor inductive M12 dimensional drawing

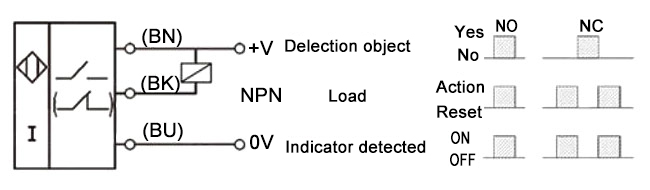

Wiring diagram

Proximity sensor NPN wiring
Tips: What are the differences between shielded and unshielded proximity sensor?

The shielded proximity sensor is equipped with a metal shielding layer around the sensing head, which only allows the electromagnetic field to be emitted straight ahead, and is suitable for installation on metal surfaces, such as CNC milling machines, servo motor drive modules and other equipment. This type of sensor supports flush installation and has strong anti-electromagnetic interference capabilities. It is often used in industrial environments with high precision, limited space or more metal interference.

The unshielded proximity sensor has no shielding layer, and the electromagnetic field can spread to the front and sides, with a longer sensing distance, but it is not suitable for installation close to metal to avoid false triggering. It is widely used in automatic packaging machines, logistics conveyor lines, intelligent warehousing systems and other equipment, suitable for applications with open space, less interference, and requiring a larger sensing distance.
