Inductive Proximity Sensor, 2 Wire, 24VDC, M6

Affordable price M6 proximity sensor for sale online, small size and long life, can detect a variety of magnetic metals (for non-magnetic metals, the detection distance will be reduced), with a detection distance of 1mm. The sensor uses DC 24V power supply, supports shielded installation, strong anti-interference ability, protection level reaches IP67, and is suitable for various complex working conditions.

SKU: CCHN-PROS-I6

30-day Returns

Free Shipping

Delivery date: 6-25 days

Overview

Inductive proximity sensor with M6*1 thread, DC 2 wire output, manufacturer direct sale. The operating temperature range of this inductive proximity sensor is -30℃ to 65℃, and the storage temperature is the same.

Functions

Red LED checks the state of proximity sensor
High repeated positioning accuracy
High switching frequency
Wide voltage range
Antivibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Can replace small switches and limit switches

Specification

Model			CCHN-PSI-6A1ZD
Installation type			Shielded
All the output methods	DC type	NPN	NO
			NC
		PNP	NO
			NC
		2 wire	NO
Detection range			1.0mm±10%
Setting distance			0-0.7mm
Delay distance			≤10% detection range
Detection object			Magnetic metal (the detection distance decreases when it is non-magnetic metal)
Standard detection object			Iron 12121mm
Response frequency			DC: 2kHz, AC: 50Hz
Supply voltage			DC type: DC 12-24V (6-36V), impulse (p-p) 10% below; AC type: AC 110-220V (90-250V) 50/60Hz
Withstand voltage			AC1000V 50/60Hz 1min between charging part and housing
Voltage influence			Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current			N/P type: ≤13mA, D type: ≤0.8mA, A type: ≤1.7mA
Control output			N/P type: ≤300mA, D type: ≤200mA, A type: ≤400mA
Loop protection			N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity			Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence			Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance			≥50MΩ (DC500 megameter) between charging part and housing
Material			Housing: Nickel plated brass, Detection surface: ABS
Protection class			IP67
Cable length			1.2m

Dimensional drawing (unit: mm)

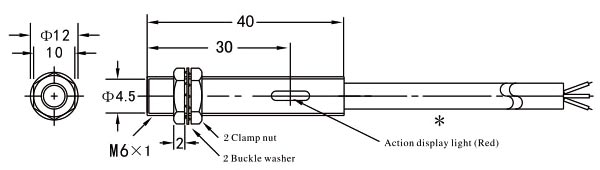

Proximity sensor inductive M6 dimensional drawing

Wiring diagram

Proximity sensor DC 2 wire wiring

Tips: Application notice of proximity switch

Detected object should not touch with proximity switch to avoid damaging the proximity sensor due to friction and collision. Pulling the proximity sensor lead wire by hand will damage the proximity sensor. It is better to use rope to fix the lead wire in 10cm away from the switch. The using distance of proximity sensor should be set within two-third of the rated distance in order to prevent the sensitivity of proximity sensor from the effect of temperature and voltage. Electric lines and power lines should be as far as possible to proximity sensor lead wire. If inevitable, they should be covered with metal tubes and grounded to prevent damages to switch and malfunction. It is strictly prohibited to connect wirings on the power up state. Wirings should be connected according to the schematic diagram of wiring output circuit. It is better not to use the output line of two proximity switches to control the same coil of the same relay, otherwise it will not be able to identify the source of action, and sometimes even lead to malfunction.
